Contactor

Moeller DILM7-10 contactor with 230-240 VAC control supply, 22 A at AC-1, 7 A at AC-3, 3-pole design, and compliance with IEC/EN 60947-4-1 standards.

Fabricante
MOELLER
SKU
1074982
Condição
Novo
Compartilhar
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

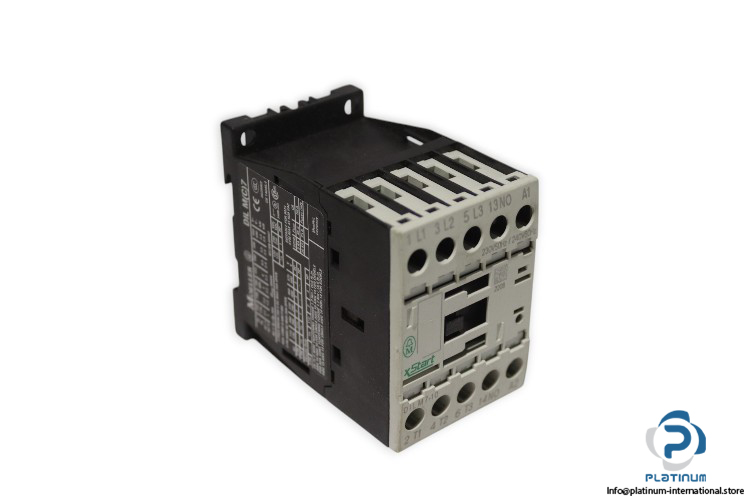

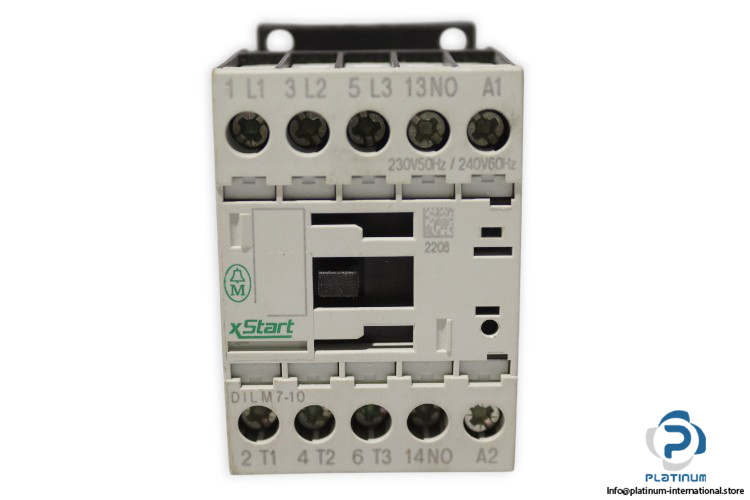

Moeller DILM7-10 Contactor

The Moeller DILM7-10 is a robust contactor from the DILM series, engineered for reliable switching and control in industrial applications. It offers high performance, compliance with international standards, and compact design suitable for demanding environments.

Manufacturer: Moeller

Type: Contactor

Model: DILM7-10

Series: DILM

EAN No.: 4015082765507

Rated Control Supply Voltage230-240 VAC
Rated Operation Current Ie at AC-1, 400 V22 A
Rated Operation Current Ie at AC-3, 400 V7 A
Rated Operation Power at AC-3, 400 V3 kW
Rated Operation Current Ie at AC-4, 400 V5 A
Rated Operation Power at AC-4, 400 V2.2 kW
Rated Impulse Withstand Voltage (Uimp)2.2 kW
Contact1 Normally Open
Number of Poles3
StandardIEC/EN 60947-4-1; UL 60947-4-1; CSA-C22.2 No. 60947-4-1-14
Operating Temperature-25 to 60°C
Dimensions117 x 47 x 68 mm
