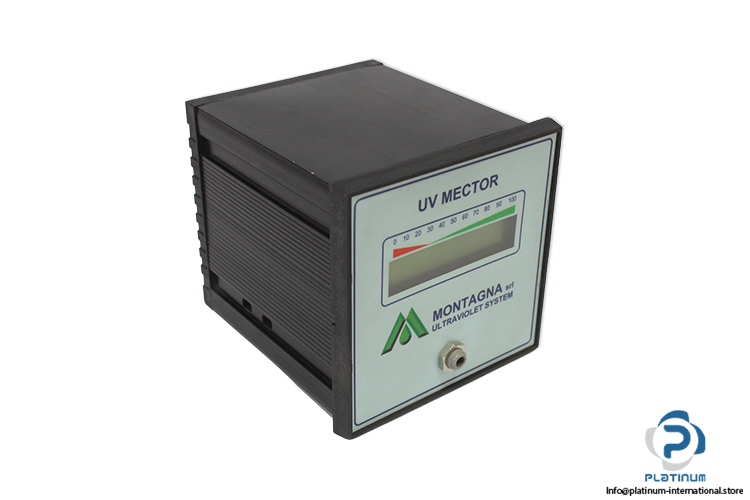

Montagna MEC01 Intensity Monitoring/Control Panel
Usado
Em estoque1 unidadePronto para envio
144,44$
Intensity Monitoring / Control Panel MONTAGNA Ultraviolet MEC01 control panel designed for real-time UV lamp intensity monitoring in UV-C water disinfection systems, featuring analog display, alarm outputs, and analog signal transmission.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
| REV | 02 |
| family | UV Mector |
| It is used as | part of their UV-C water disinfection systems to monitor the real-time intensity/performance of UV lamps in the treatment reactor |

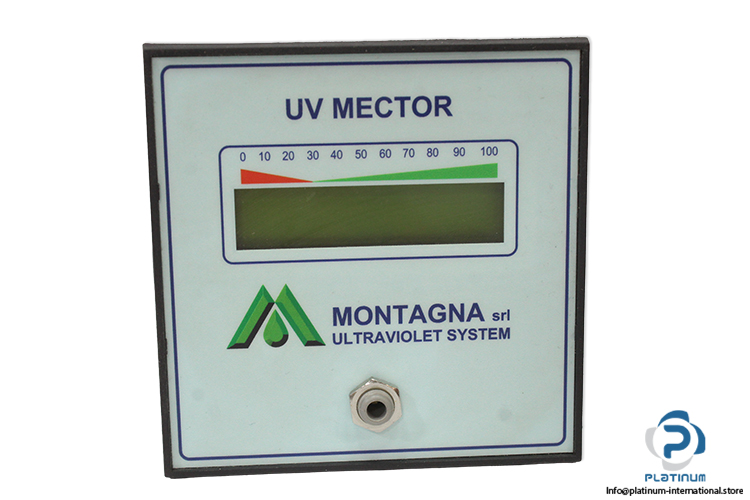

| Analog bar-graph meter | scale from 0 to 100 (representing UV intensity %) |
| • Color-coded indicator | Red zone (low, 0–20%) ? Green zone (adequate intensity, up to 100%) |
| Power Supply | 24V AC |

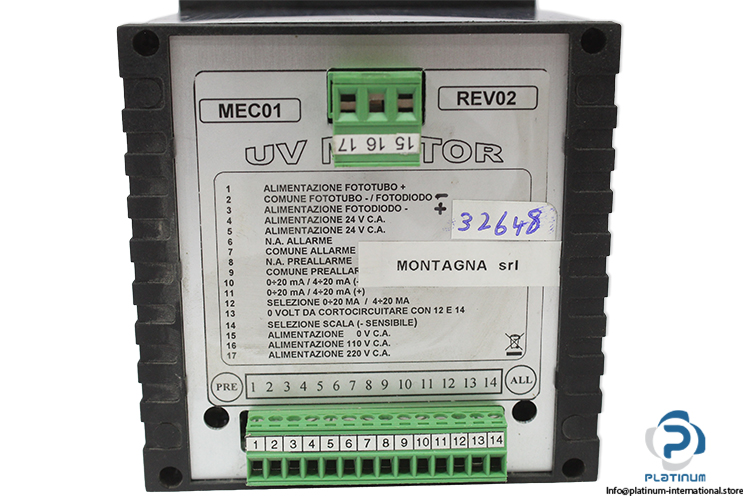

| Alarm Output | (Normally Open Contact) |
| Pre-Alarm Output | (Normally Open Contact) |
| Signal Output | 0÷20 mA / 4÷20 mA |
| Power Input | 110V AC/ 220V AC |
| UV Wavelength | 254 nm |
| Secondary Wavelength | 185 nm |
| Condition | Used |
| SKU | 1099134 |
| Weight | 0,53 |
