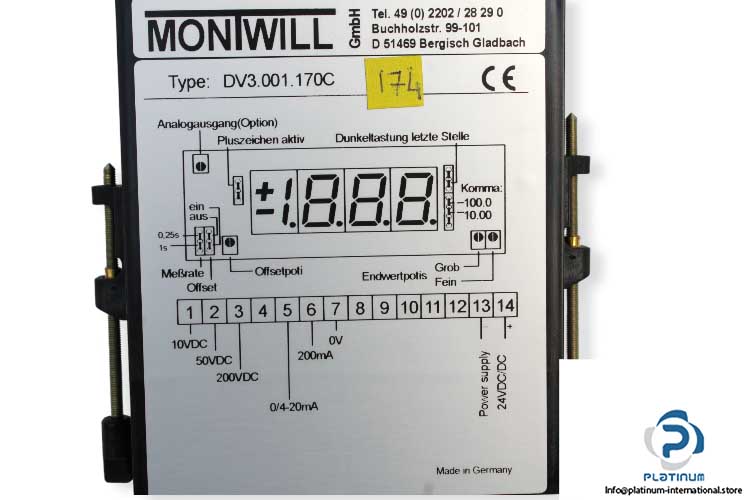

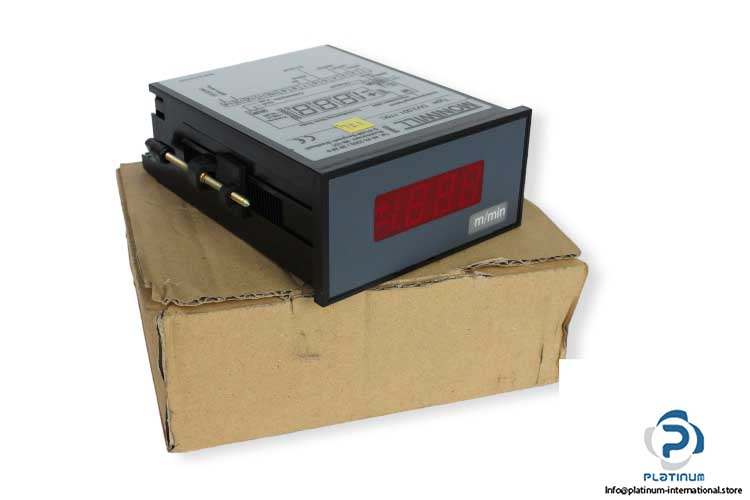

Montwill DV3.001.170C Digital Panel Meter

Manufacturer: Montwill

Type: Digital Panel Meter

Model: DV3.001.170C



Supply voltage: 24 V DC

Voltage measurement ranges: 0 … ± 10 V, 0 … ± 50 V ,0 … ±200V

Current measurement ranges: 0/4 … 20 mA, 0 … ± 200 mA

Digits: 3 ½

Display: ± 1999, LED, 14 mm

Time: 0.25 … 1 S

Connections: Screw-type terminal

Housing: Control panel housing

Ambient temperature: 0 … 60°C

Front dimensions housing front: 96 x 48 mm
