Moxa DE-304 Nport Server Lite
139,99$
NPort Server Lite O MOXA NPort Server Lite DE-304 permite conectividade Ethernet para até quatro portas seriais RS-232. Apresenta detecção automática de Ethernet 10/100 Mbps, painel de configuração LCD e múltiplos modos de operação para comunicação industrial confiável.

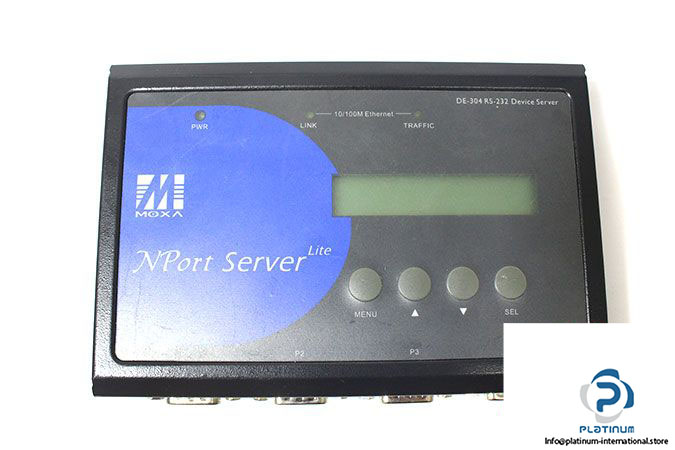

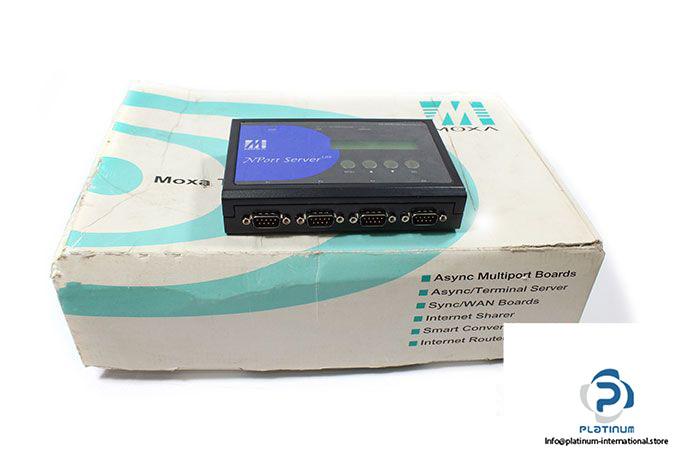

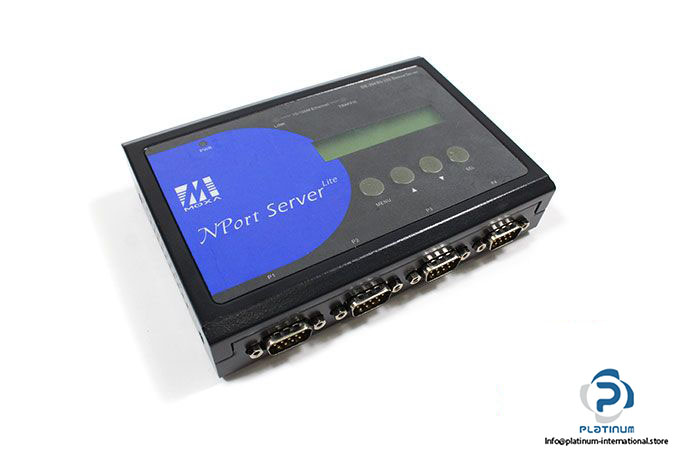

MOXA NPort Server Lite DE-304
The MOXA NPort Server Lite DE-304 is a high-performance multiport serial device server that converts RS-232/422/485 interfaces to Ethernet, allowing remote management of serial devices over TCP/IP networks. It offers flexible communication modes, built-in networking protocols, and advanced control options through an LCD panel for easy configuration. Ideal for industrial automation, networking, and control applications.
Manufacturer: MOXA Technologies
Type: NPort Server Lite
Model: DE-304

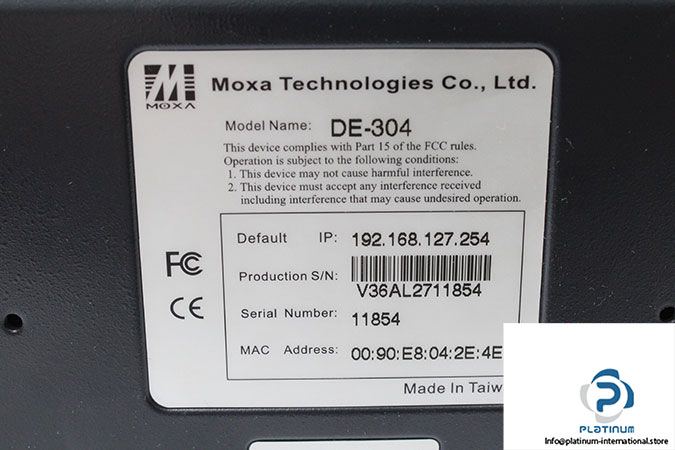

Product No.: V36AL2711854
Serial No.: 11854
Features
Application
The NPort Server Lite operates like an add-on multiport serial board, with the advantage of TCP/IP connectivity. By networking the serial ports, users can control synchronous serial devices from virtually any location. It™s ideal for applications requiring remote management and monitoring of serial communication devices.
Attachments
| No. of Ports | 4 |
| Type of Serial Interface | RS-232 |
| Processor | 16-bit CPU |
| Memory | 512 KB |

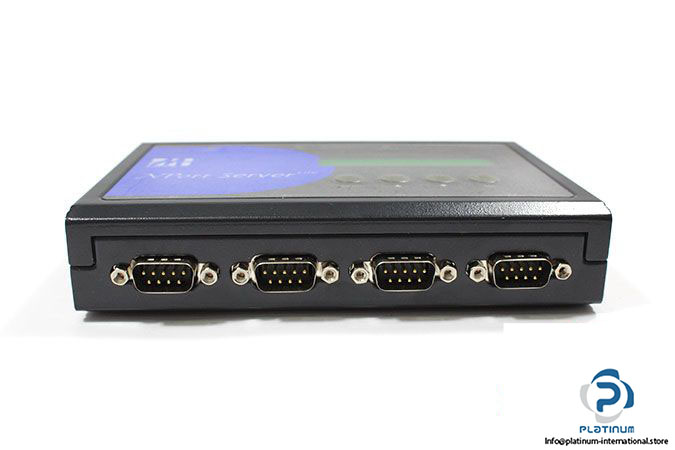

| Connector Type | DB9 Male |

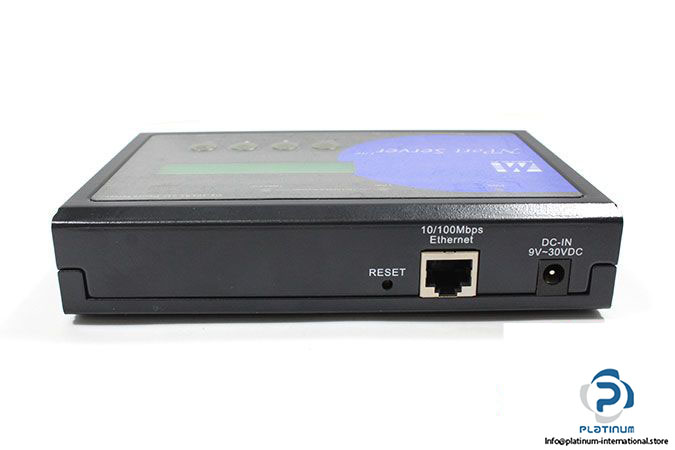

| Power Requirements | 9“30 V DC |
| Dimensions (W × D × H) | 155 × 105 × 33 mm |
| Operating Temperature | 0 / 55 °C |
| Auto-Detecting | 10/100 Mbps Ethernet |
| Serial Interface | RS-232 or RS-422/485 |
| Model Options | Available in 1, 2, or 4 Port Versions |
| Display | LCD Control Panel with IP Address Display and Configuration |
| Protocols | Built-in Ethernet and TCP/IP Support |
| Operation Modes | Configurable for Driver, TCP Server, TCP Client, or UDP Server/Client |
| Pair Connection | Compatible with DE-301 and DE-331 |
| Driver Support | Windows Real COM and Linux Real TTY Drivers |
| Network Recovery | Automatic Connection Reestablishment |
| Installation | Desktop or DIN-Rail Mounting |

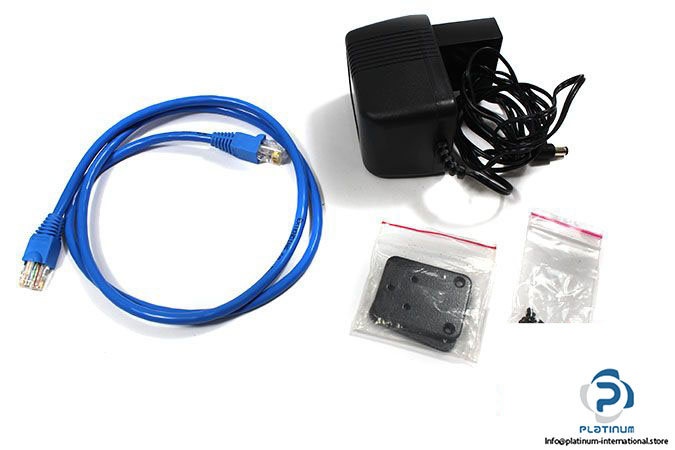

| Power Adaptor | 230 V |
| Ethernet Cable | Crossover 10/100 Mbps, 1“4 |
