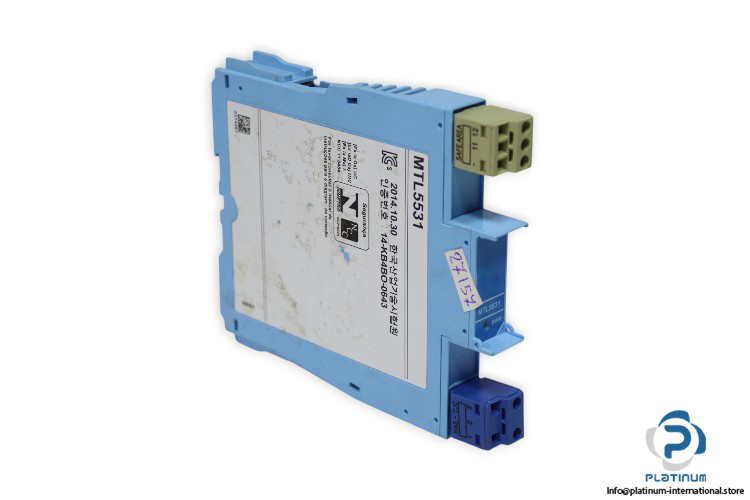

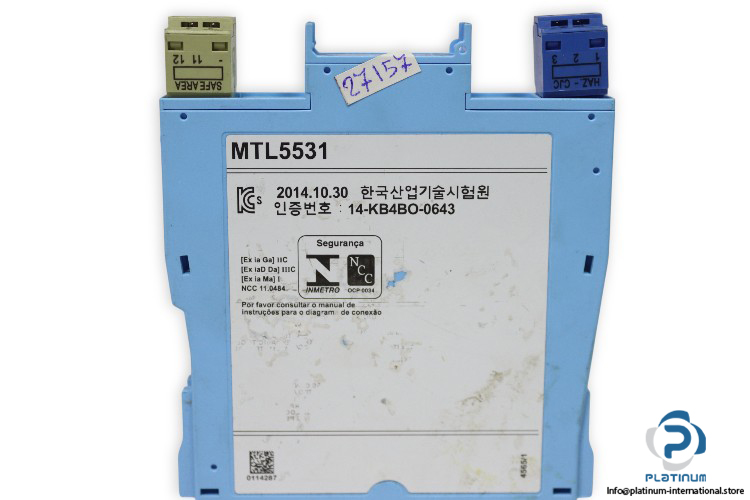

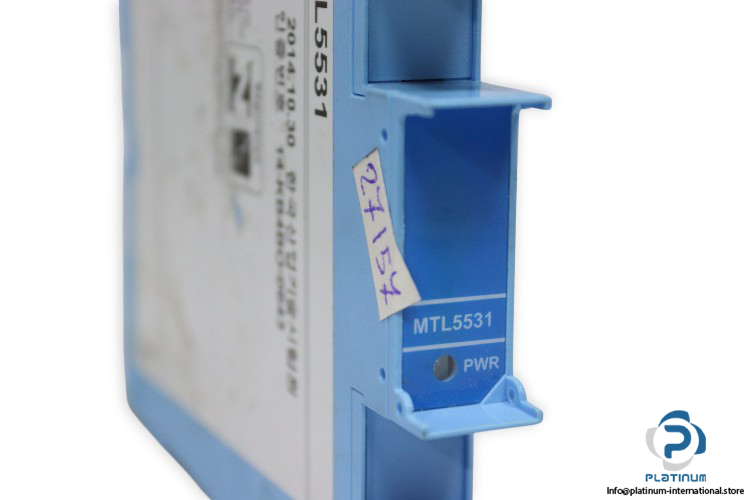

MTL MTL5531 Vibration Transducer Interface
Usado
Em estoque1 unidadePronto para envio
133,33$
VIBRATION TRANSDUCER INTERFACE
Eaton MTL5531 / PWR Vibration Transducer Interface with 20“35V DC supply, ±50mV DC accuracy, wide 47kHz bandwidth, and support for 2- or 3-wire vibration sensors in hazardous areas.23AccuracyAreaConverterEatonHazardousHighIndustrialInterfaceModuleMTLMTL5531SignalTransducerVibrationwire
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
EATON MTL5531 / PWR VIBRATION TRANSDUCER INTERFACE
The Eaton MTL5531 / PWR Vibration Transducer Interface is designed for safe and accurate transmission of vibration signals from hazardous areas. With high accuracy, wide bandwidth, and support for 2- and 3-wire transducers, it provides reliable signal conversion for industrial monitoring systems.
Manufacturer: Eaton MTL
Type: Vibration Transducer Interface
Model: MTL5531 / PWR
AC Transfer Accuracy at 20°C:
Temperature Coefficient:
±50ppm/°C (10 to 65 °C)
±100ppm/°C (-20 to 10 °C)
| Supply Voltage | 20 to 35V DC |
| Maximum Current Consumption | 65mA at 24V (with 10mA transducer load) |
| Power Dissipation | Max 1.33W |
| Number of Channels | One |
| Signal Source | Zone 0, IIC, T4 - 6 hazardous area / Div. 1, Group A hazardous location (if suitably certified) |
| Signal Range | Minimum -20V, Maximum -0.5V |

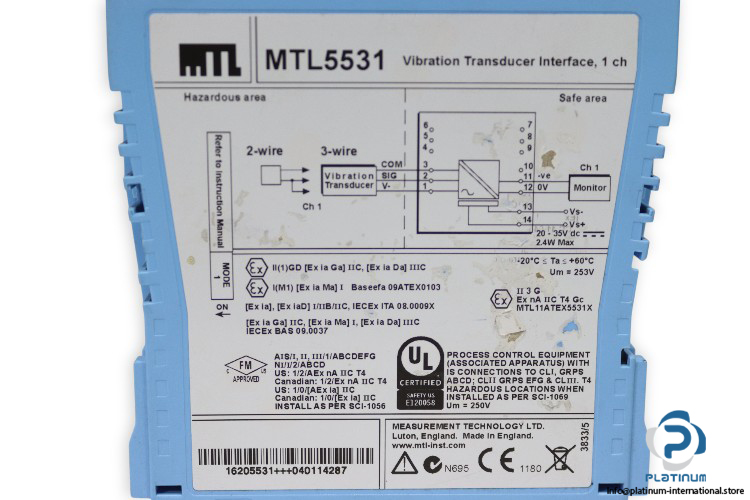

| Sensor Type | 2- or 3-wire vibration transducer |
| Transducer Supply Current (2-wire) | 3.3mA nominal, user-selectable |
| DC Transfer Accuracy at 20°C | ±50mV |
| 0Hz to 1kHz | ±1% |
| 1kHz to 10kHz | -5% to +1% |
| 10kHz to 20kHz | -10% to +1% |
| Voltage Bandwidth | -3dB at 47kHz (typical) |
| Operating Temperature Range | -20 to 60°C |
