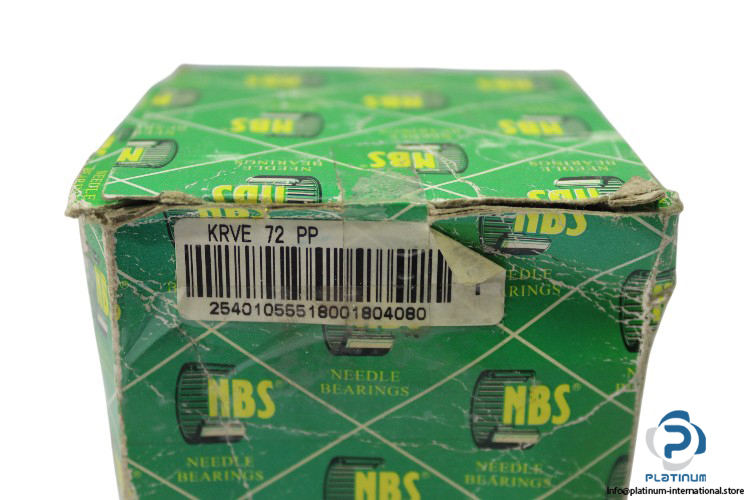

NBS Krve 72 PP Stud Type Track Roller
Novo
Em estoque1 unidadePronto para envio
Rolamento de trilho tipo pino O Rolamento de trilho tipo pino NBS KRVE 72 PP apresenta um pino céntrico com uma gola excêntrica, vedantes PP e alta capacidade de carga para aplicações de seguidor de came.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
NBS KRVE 72 PP Stud Type Track Roller
The NBS KRVE 72 PP Stud Type Track Roller is a high-performance bearing component designed for cam followers and track applications. Featuring a centric stud with an eccentric collar, high load capacity, and durable seals, this roller ensures reliable operation in demanding environments.
Manufacturer: NBS
Type: Stud Type Track Roller
Model: KRVE 72 PP
Basic Load Ratings, Radial:
| Outside Diameter (D) | 72 mm |
| Fit Diameter of Roller Stud (d1) | 24 mm |
| Width of the Roller Stud (B) | 80 mm |
| Roller Width (B1) | 49.5 mm |
| Thread (G) | M24X1.5 |
| Stud Alignment | Centric Stud with Eccentric Collar |
| Dynamic (Cr w) | 39,500 N |
| Static (C0r w) | 86,450 N |
| Limit Speed on Grease Lubrication | 2,100 rpm |
| Sealing | PP, Seals on Both Sides |
