NSK Ucfl 210 Oval Flange Ball Bearing Unit
Novo
Em estoque1 unidadePronto para envio
A unidade de rolamento de esferas com flange oval NSK UCFL210 apresenta diâmetro de furo de 50 mm, carcaça de ferro fundido, dispositivo de travamento por parafuso e montagem com flange oval para desempenho industrial durável e eficiente.
50BallbearingbearingsboreCastDevicediameterFL210FlangeHighHousingIndustrialIronlockingmmNSKOvalperformancescrewSetUC210UCFL210Unit
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

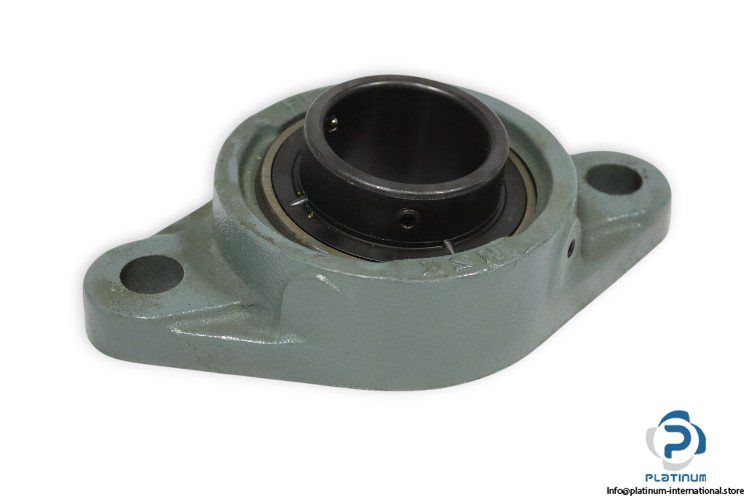

NSK Oval Flange Ball Bearing Unit – UCFL210
The NSK UCFL210 Oval Flange Ball Bearing Unit is a robust and reliable solution for various industrial applications. It combines the strength of a cast iron housing with the precision of the UC210 bearing. Designed for easy installation and maintenance, this unit ensures high performance and durability in demanding environments.
- Type: Oval Flange Ball Bearing Unit
- Model: UCFL210

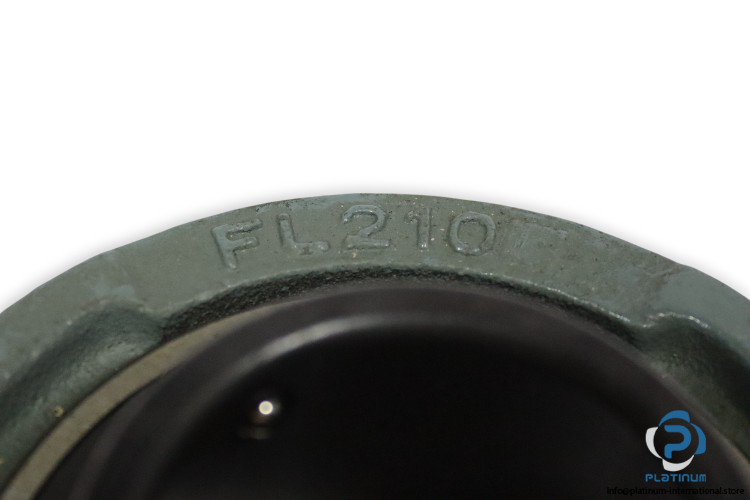

- Housing No.: FL210

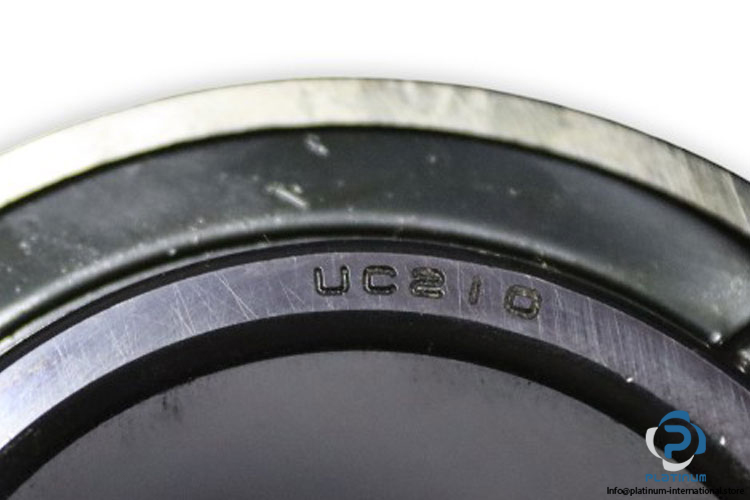

- Bearing No.: UC210
- Bore Diameter (d): 50 mm
- Overall Length (L): 115 mm
- Width of Inner Ring (B): 51.6 mm
- Overall Height (H): 197 mm
- Distance Between Attachment Bolts (J): 157 mm
- Overall Unit Width (A0): 54.6 mm
- Diameter of Attachment Bolt Hole (N): 19 mm
- Mounting: Oval Flange
- Locking Device: Set Screw
- Material, Housing: Cast Iron
