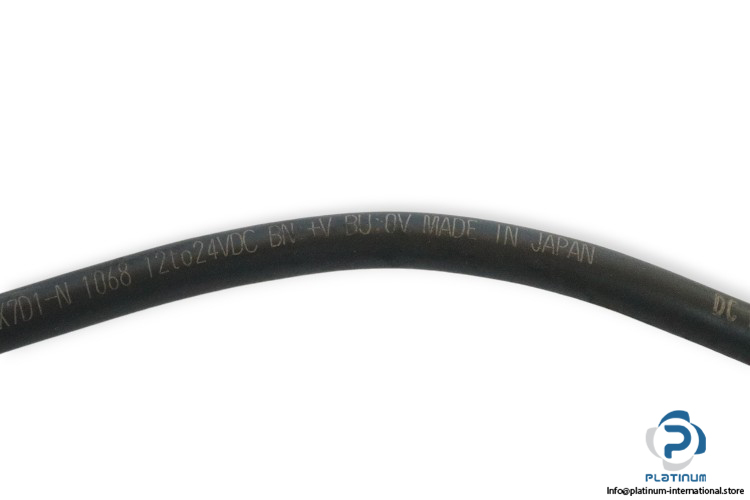

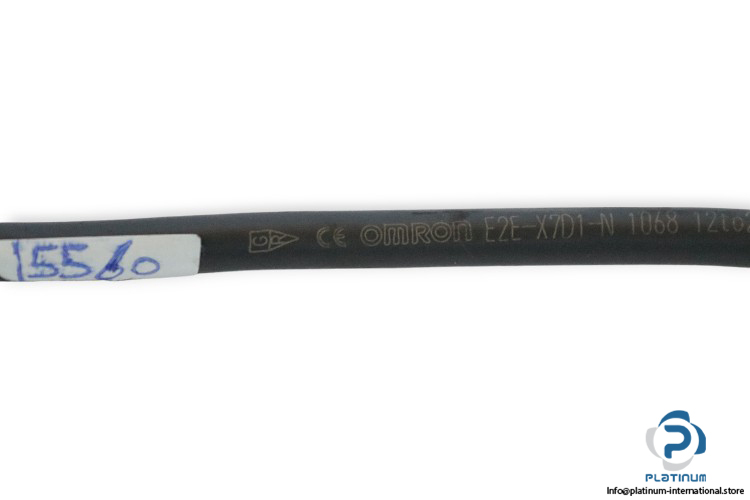

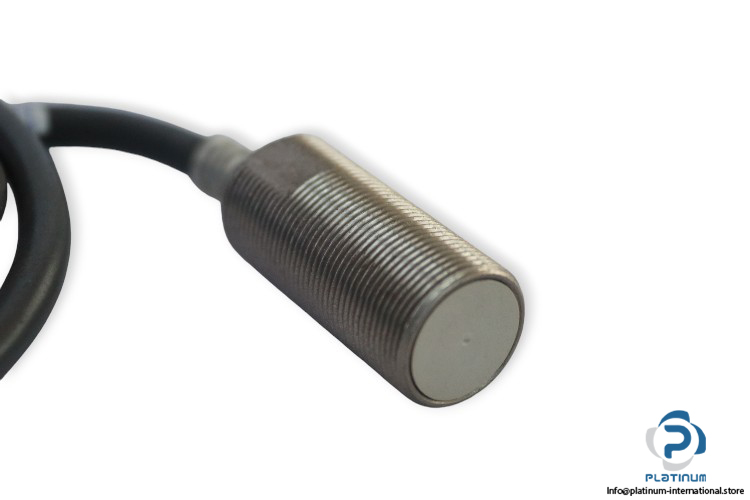

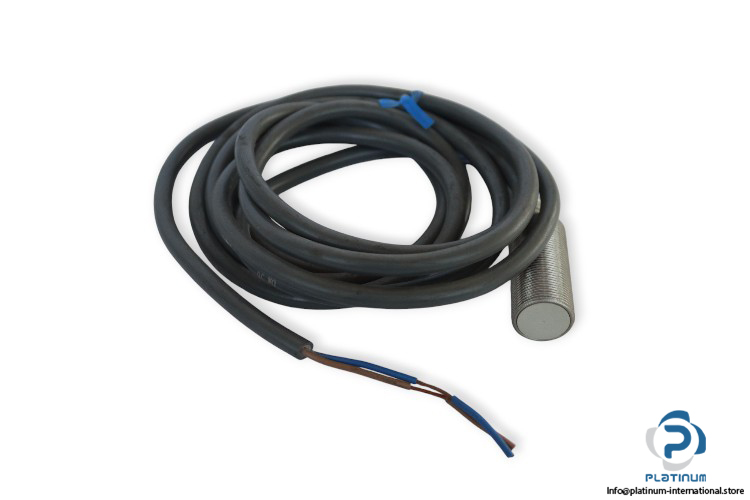

Omron E2E-X7D1-N Proximity Switch

Manufacturer: OMRON
Type: Proximity Switch
Model: E2E-X7D1-N

Sensing distance: 7 mm ± 10%
Voltage influence: ±1% max. of sensing distance in the rated voltage range ±15%
Power supply voltage (operating voltage range): 12 … 24 VDC
Sensing object: Ferrous metal (The sensing distance decreases with non-ferrous metal, refer to Engineering Data)
Standard sensing object: Iron, 18 x 18 x1mm
Response speed: 0.5 kHz
Leakage current: 0.8 mA max.
Control output Load current: 3 to 100 mA
Control output Residual voltage: 3 V max
Connection method:
Pre-wired models (standard length: 2 m), connector models, pre-wired
connector models (standard length: 0.3 m)
Material:
Case: Brass-nickel plated
Sensing surface: PBT (polybutylene terephthalate)
Clamping nuts: Brass-nickel plated
Toothed washer: Iron-zinc plated
Ambient temperature: –25 … 70°C
