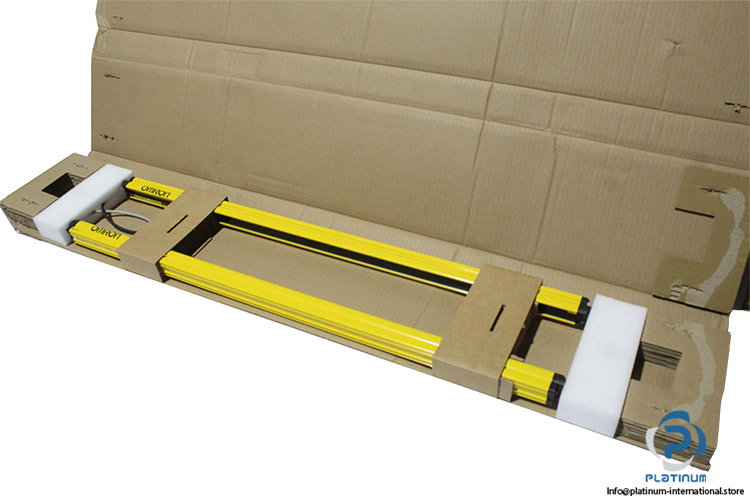

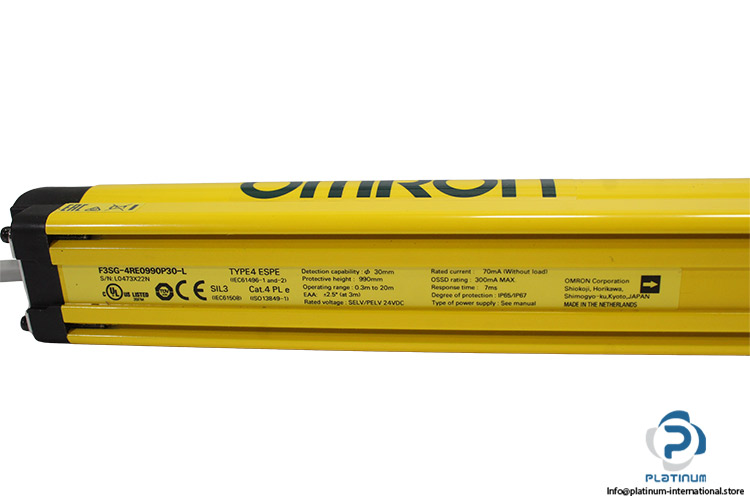

Omron F3SG-4RE0990P30 Safety Light Curtain
Novo
Em estoque1 unidadePronto para envio
Safety Light Curtain Omron F3SG-4RE0990P30 Type 4 safety light curtain with 48 beams, 990 mm safety field height, 24 V DC operation, PNP output, and IP65/IP67 protection for reliable hand protection and machine safeguarding applications.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
| Serial No. | L0473X22N / D0473X22N |

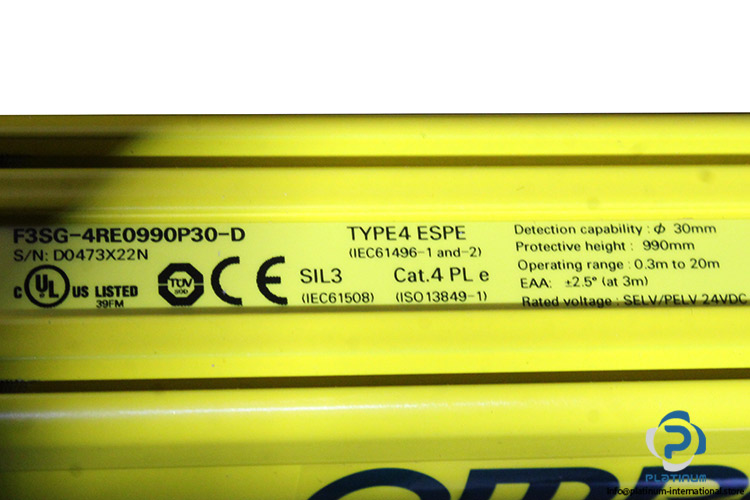

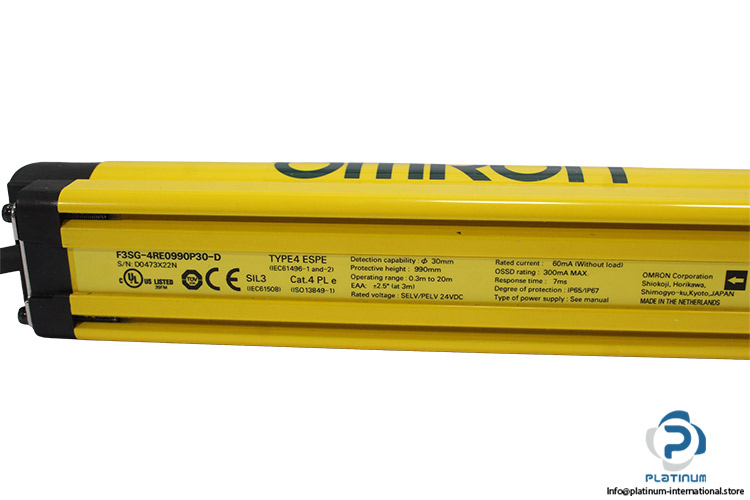

| Receiver Model | F3SG-4RE0990P30-D |

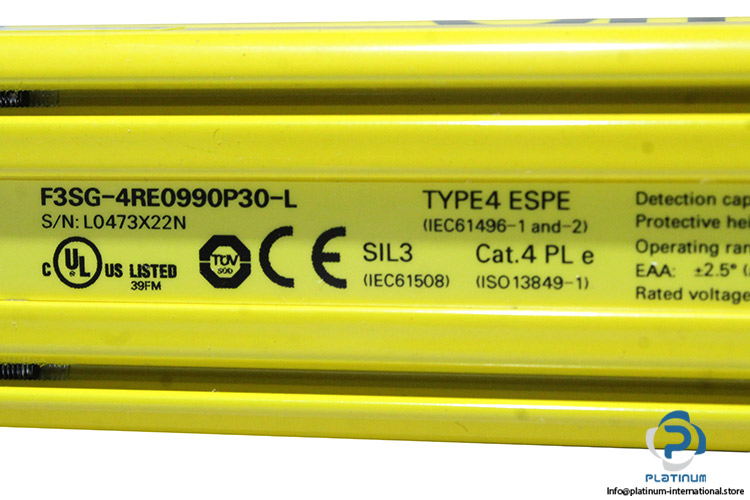

| Transmitter Model | F3SG-4RE0990P30-L |

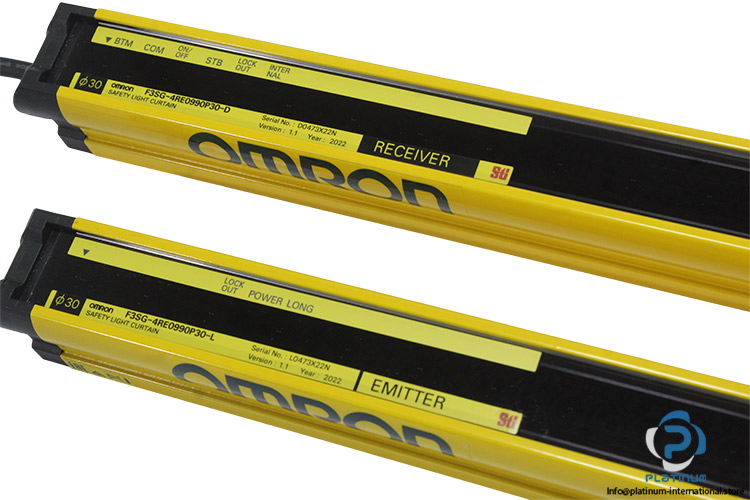

| Function | Transmitter and Receiver |
| Voltage | 24 V DC |
| Output current OSSD | max. 300 mA |
| Output type | PNP |
| Rated current (Without load) | 70 mA (Transmitter), 60 mA (Receiver) |
| Operating distance | 0.3 m to 20m |
| Key features | Fast response (ON/OFF applications), Simple wiring |
| Wavelength of the sensor | 870 nm |

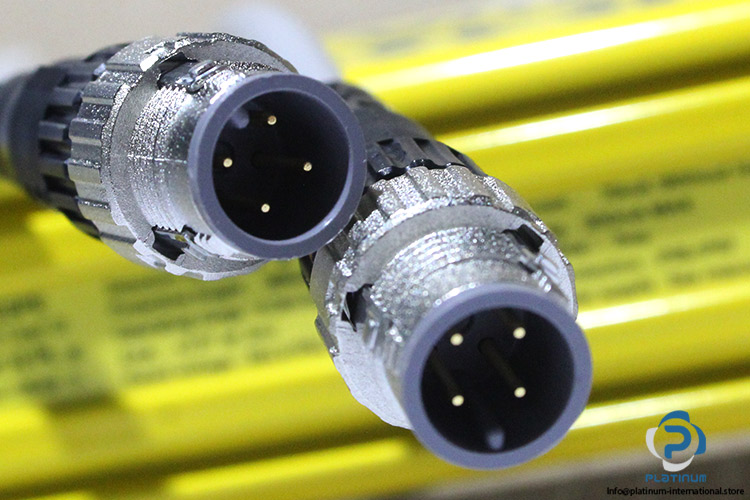

| Connection method | M12 pigtail Smartclick connector |
| Detection capability | 30 mm |
| Beam gap | 20 mm |
| No. of beams | 48 |
| Safety range | max. 20 m |
| EAA | ±2.5° (at 3m) |
| Response time | 7 ms |
| Safety Category | Type 4 ESPE ((IEC61496-1 and-2), (IEC61508) (ISO 13849-1) |
| Type of protection | Hand protection |
| Protection degree | IP65/IP67 |
| Certificate | CE, cULus, TUV |
| Temperature | -10 to 55°C |
| Safety field height | 990 mm |
| Height of sensor | 35 mm |
| Width of sensor | 35 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097852 |
| Weight | 4,51 |
