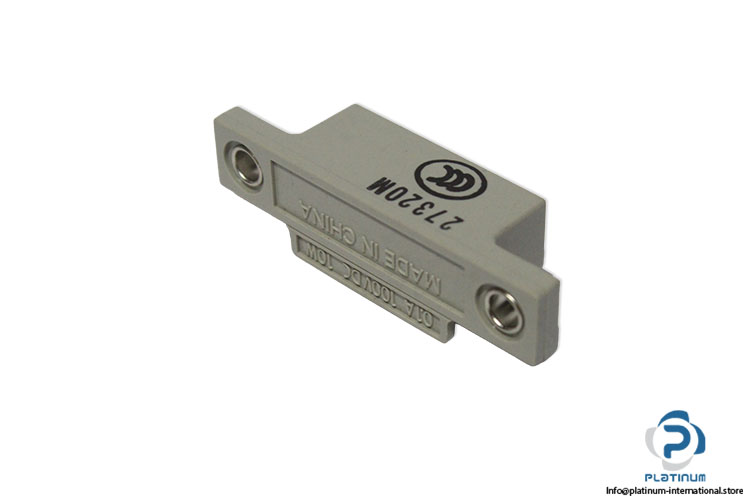

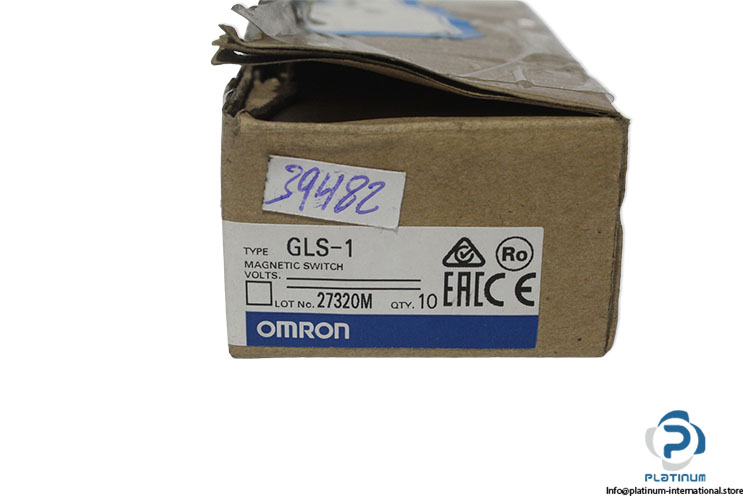

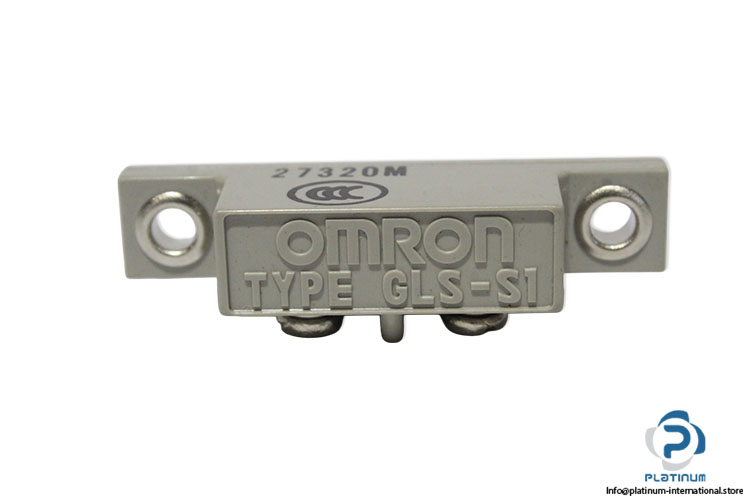

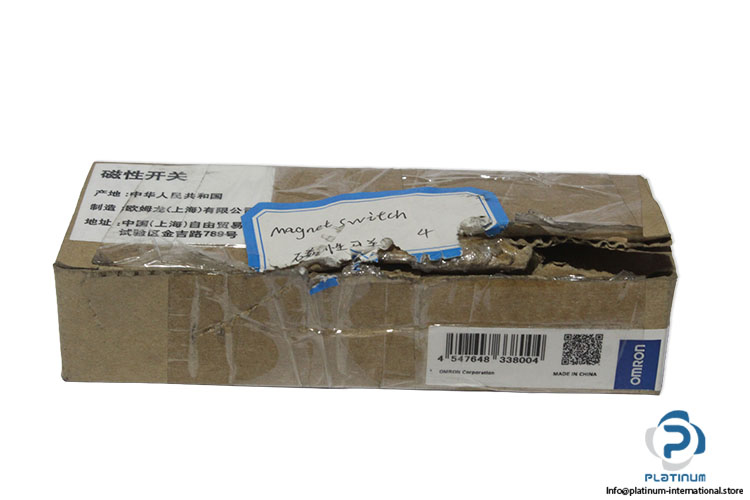

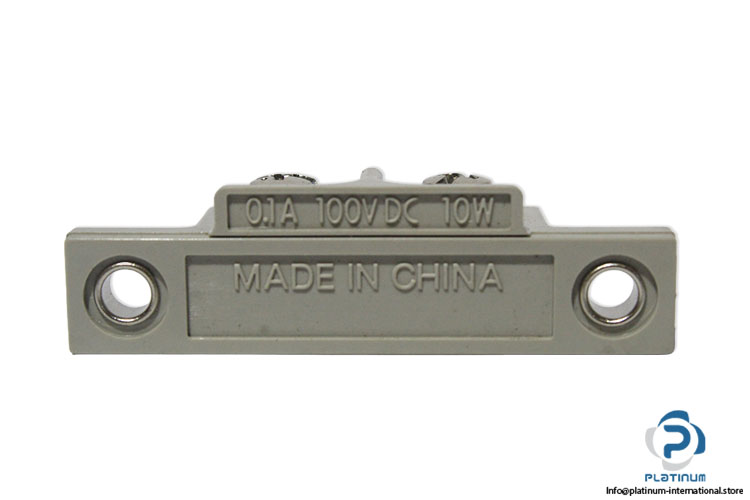

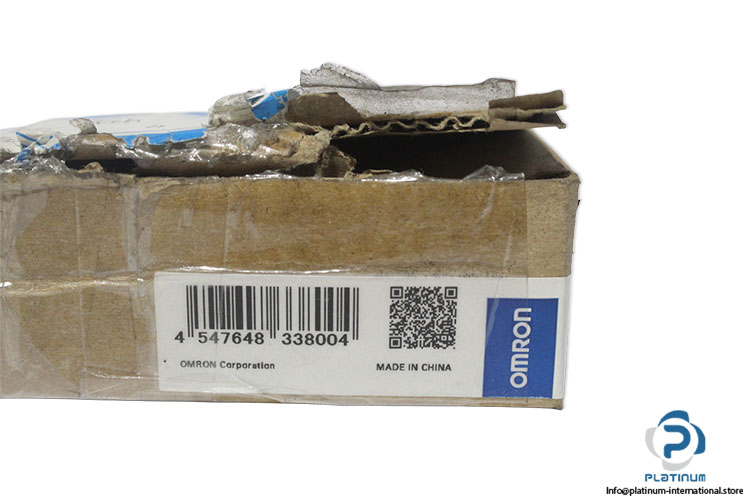

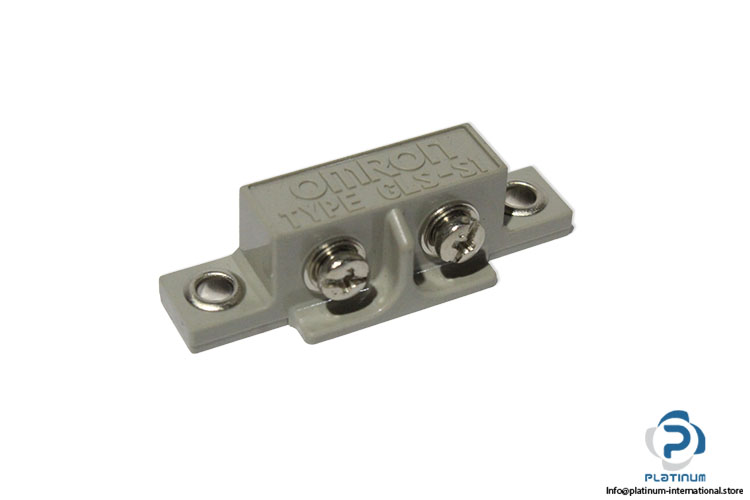

OMRON GLS-1 MAGNETIC PROXIMITY SENSOR(Emitter + Receiver)

Em estoque1 unidadePronto para envio

Magnetic Proximity Sensor OMRON GLS-1 magnetic proximity sensor set with 15 mm sensing distance and SPST-NO contact, designed for reliable position detection in industrial automation applications.

Fabricante
OMRON
SKU
1100903
Categoria
Sensors
Condição
Novo
Compartilhar
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
Set ModelGLS-1
Sensor ModelGLS-S1
Ref No4 547648 338004,27320M
SeriesGLS
Sensing distance15 mm
Contact circuitSPST-NO
Maximum operating voltage100 VDC
Maximum operating current0.1 A DC
Maximum switching capacity10 W (for both open and closed contacts)
Contact dielectric strength250 VDC for 1 min with a leakage current of 1 mA max.
Response frequency20 Hz max.
Ambient temperature rangeOperating/Storage: -20 to 60°C (with no icing or condensation)
Contact resistance150 mohm
Dielectric strength1,000 VAC for 1 min between terminals and case
Vibration resistanceDestruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions
Shock resistanceDestruction: 300 m/s2 3 times each in X, Y, and Z directions
Degree of protectionIP40 (IEC) IP62 (IEC)
Connection methodTerminal block
MaterialsABS
Items per set4Emitter + 4Receiver
Stock keyCON003
ConditionNew
SKU1100903
Weight0,02
