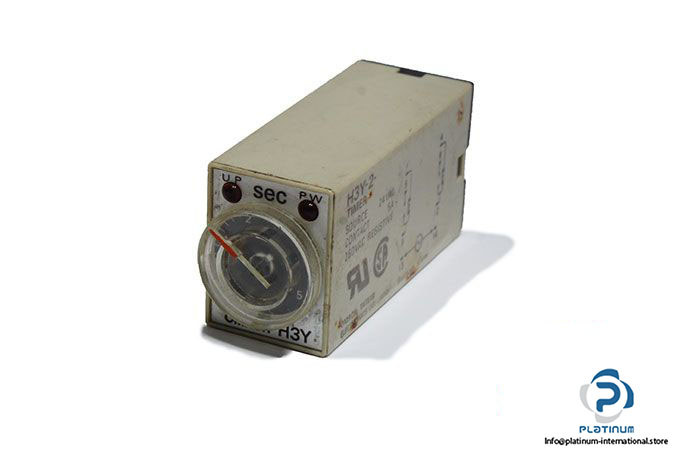

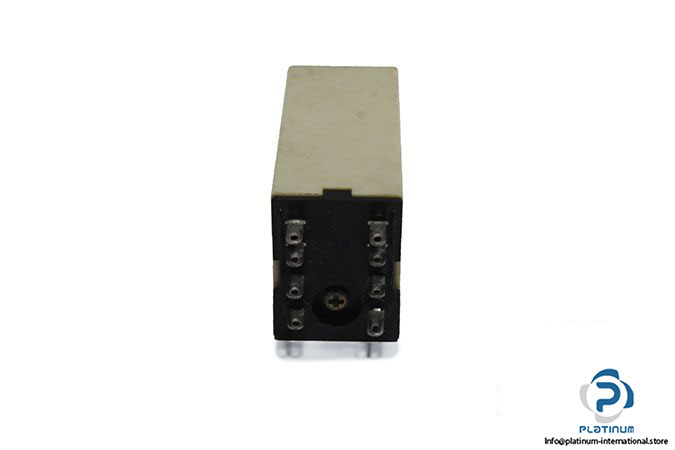

Omron H3Y-2 Solid-State Timer 220 VAC

Manufacturer: OMRON
Type: Solid-State Timer
Model: H3Y-2

Rated Supply Voltage: 220 VAC
Frequency: 50/60 Hz
Control Outputs: 5 A at 250 VAC, resistive load (cosφ = 1)
Power Consumption: Relay ON: 1.8 VA (1.5 W) / Relay OFF: 1.2 VA (0.9 W)
Time-Limit Contact: DPDT
Time Range: 0.1 … 60 s
Insulation Resistance: 100 M„¦ min. (at 500 VDC)
Ambient Temperature: −10 … 50°C
Dimensions: 20.5 X 63 X 27 mm
