Panasonic MHMA052P1G AC Servomotor
Novo
Em estoque2 unidadesPronto para envio

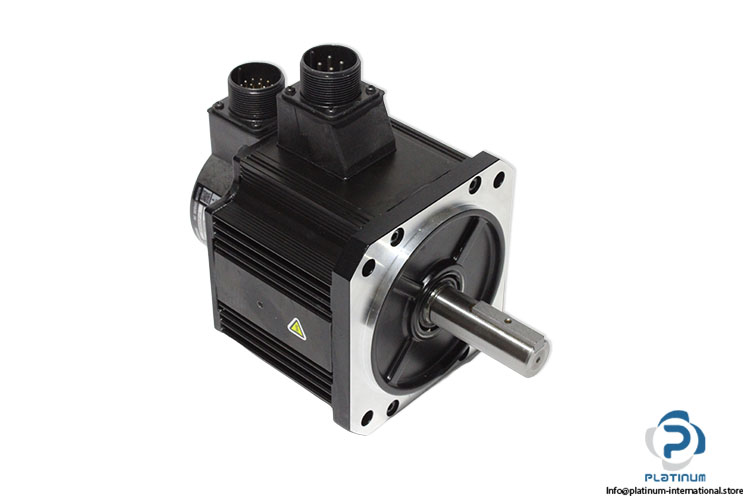

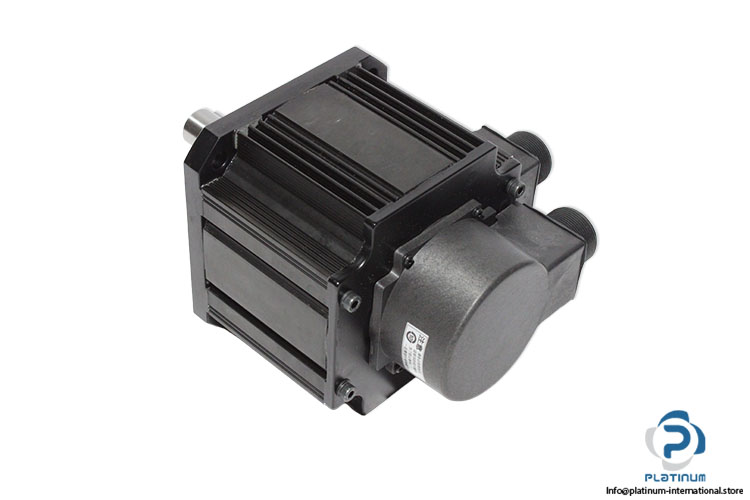

AC Servo Motor The Panasonic MHMA052P1G is a 500W high inertia AC servo motor from the MINAS A4 family, offering 2000 rpm speed, 2.38 N·m torque, IP65 protection, and connector-based installation for precision automation systems.
500WA4ACAutomationCircularConnectorDriveHighIndustrialInertiaIP65Keyway.MHMA052P1GMinasmotorPanasonicPrecisionServoshaft
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

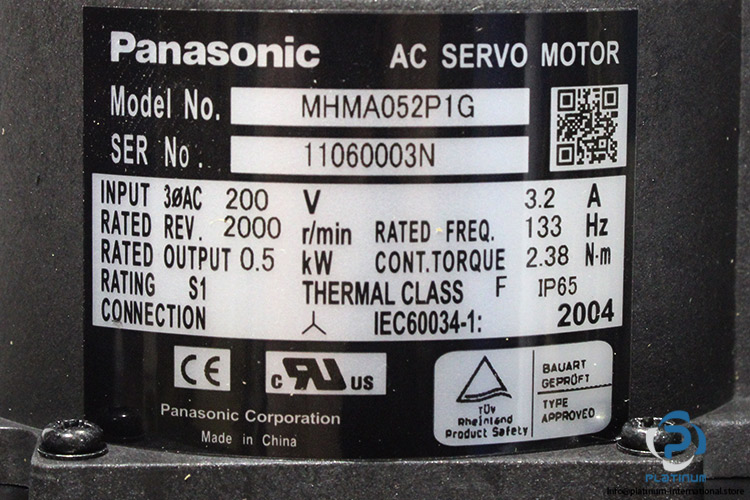

| SN. | 11060003N |
| Family Name | MINAS A4 Family |
| Series | MHMA |
| Frequency [Hz] | 133 hz |
| Rated Power [W] | 500 |
| Rated Voltage [V] | 200 |
| Rated Current [A] | 3.2 |
| Rated Speed [rpm] | 2000 |
| Duty | S1 |
| thermal class | f |
| Protection Class | ip65 |
| Standard | IEC60034-1 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Flange sq. dimension | 130 mm sq. |
| Flange size (mm) | 130 |

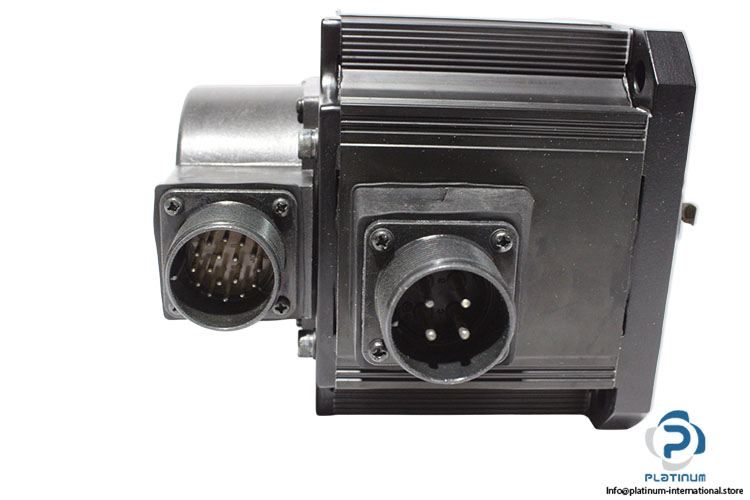

| Motor lead-out configuration | Connector |
| Motor encoder connector | Connector |
| Oil seal | with |
| Shaft | Key-way |
| Rated torque (N · m) | 2.38 |
| Momentary Max. peak torque (N · m) | 6 |
| Max. current [Reference value] (A 0-p) | 11.5 |
| CONNECTION | circular connector |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1096868 |
| Weight | 7 |
