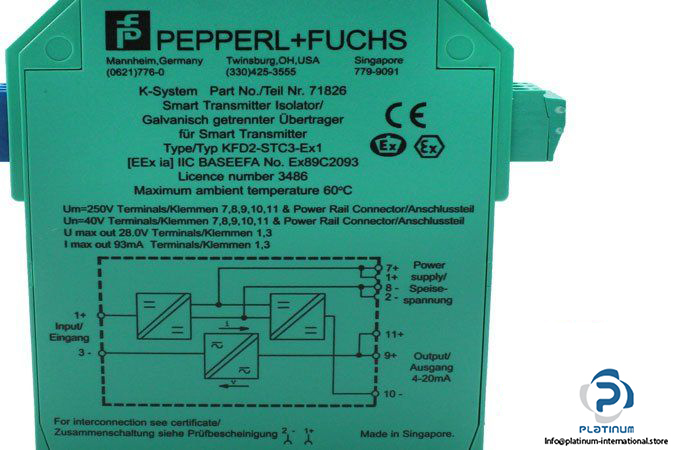

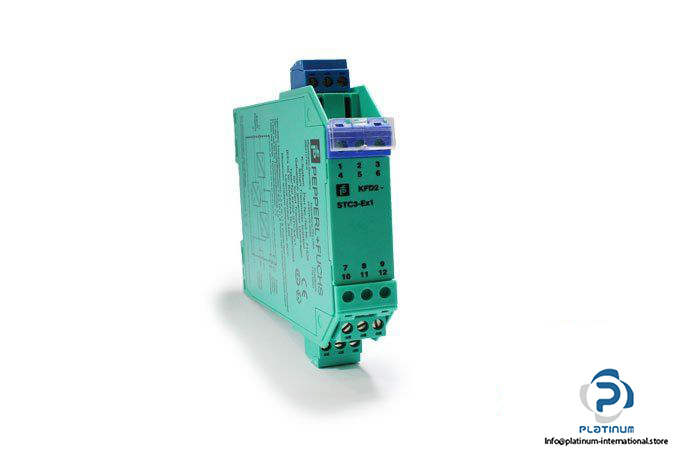

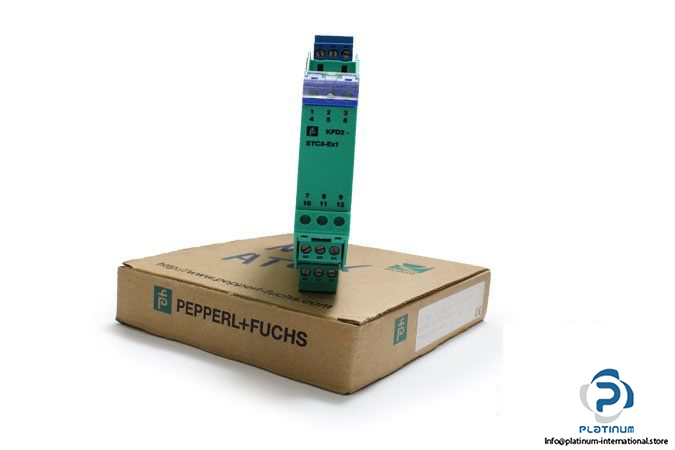

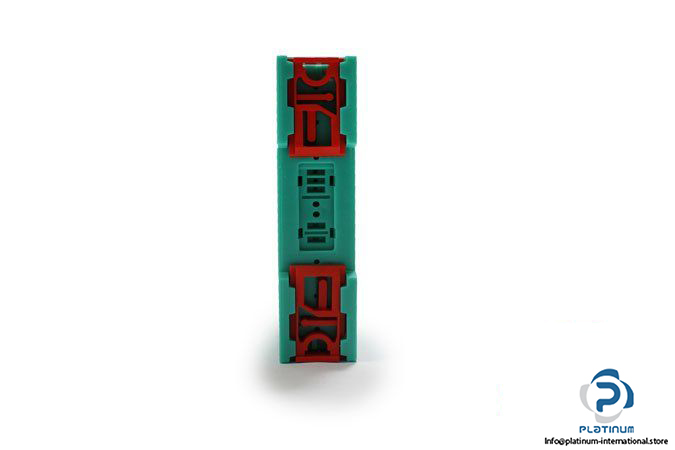

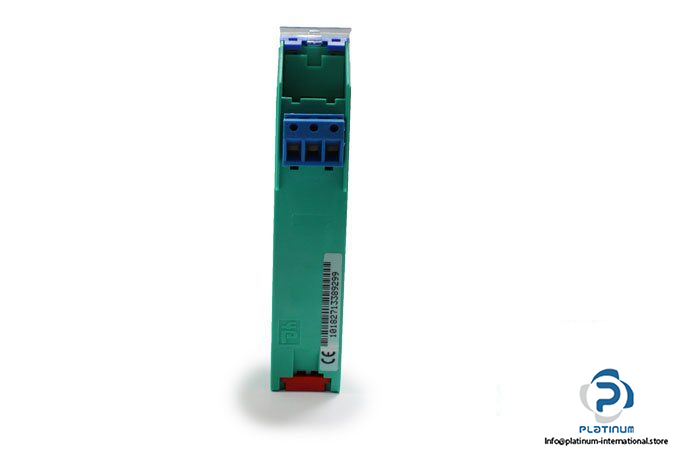

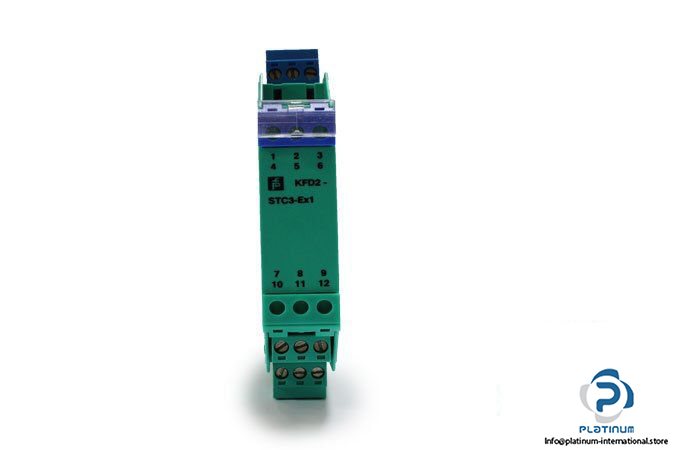

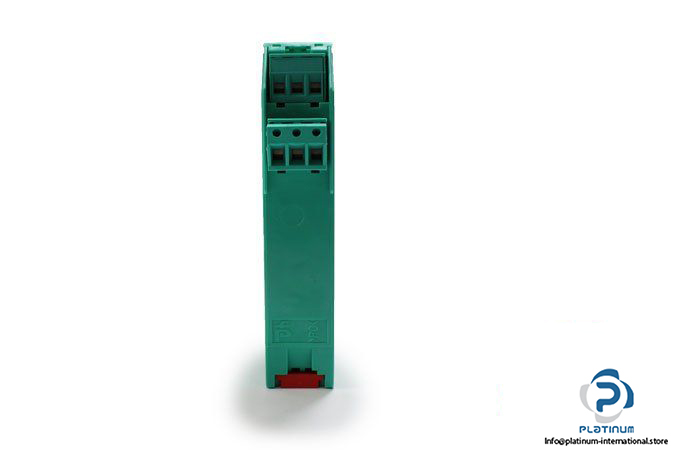

Pepperl+Fuchs KFD2-STC3-EX1 Smart Transmitter Power Supply

Manufacturer: PEPPERL+FUCHS

Type: SMART TRANSMITTER POWER SUPPLY

Model: KFD2-STC3-EX1

Part No.: 71826

Signal Type: Analog input

Supply Voltage: 20 … 35 VDC

Power Dissipation / Consumption: ≤ 1.6 W / ≤ 2 W

Connection: Power Rail or terminals 7+, 8-

Input:

Connection: terminals 1+, 3-

Connection Side: field side

Input Signal: 4 … 20 mA

Available Voltage: approx. 17 V

Output:

Connection Side: control side

Connection: terminals 9+, 10-, 11+

Output Signal: 4 … 20 mA , max. load 1000 Ω

Ambient Temperature: -20 … 60 °C

Protection Degree: IP20

Dimensions: 20 X 115 X 115 mm

Weight: approx. 0.15 Kg
