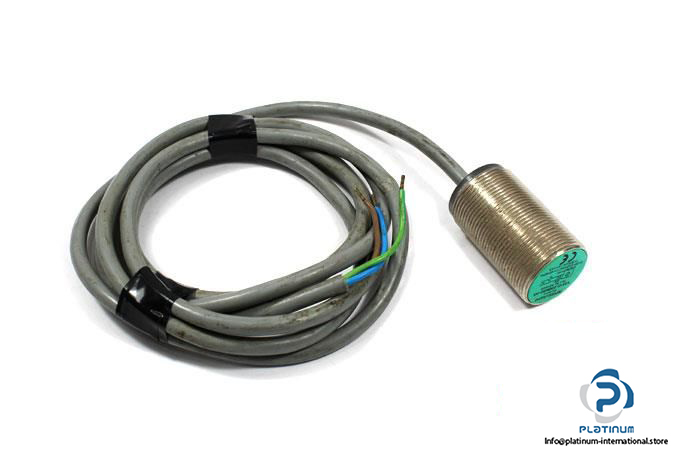

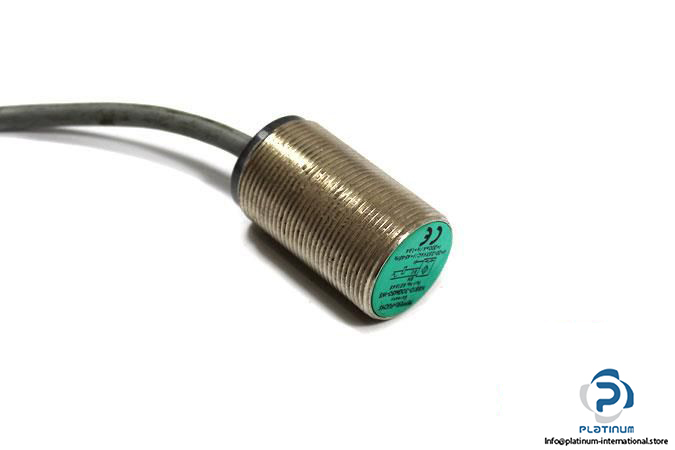

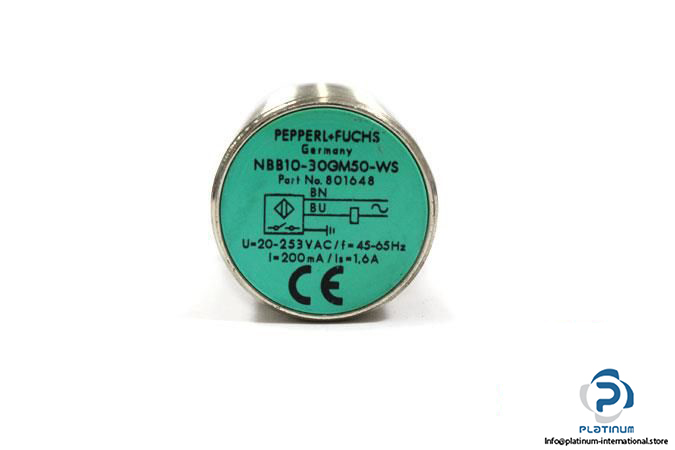

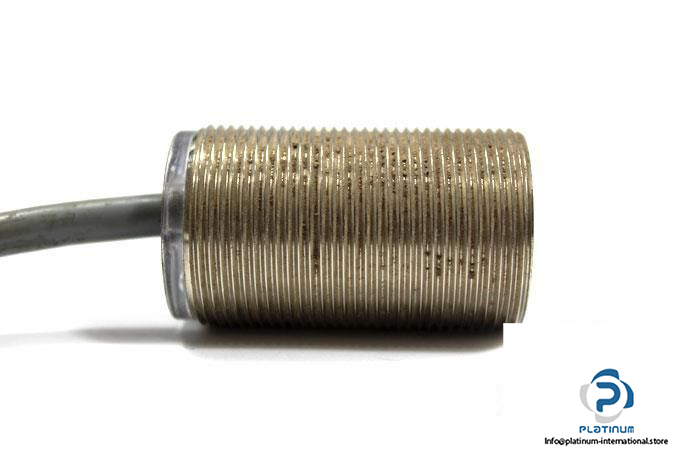

Pepperl+Fuchs NBB10-30GM50-WS Inductive Sensor

Manufacturer: PEPPERL FUCHS

Type: INDUCTIVE SENSOR

Model No.: NBB1030GM50WS

Part No.: 801648

Rated operating distance: 10 mm

Assured operating distance: 0 … 8.1 mm

Operating Voltage: 20 … 253 V AC

Operating Current: 200 mA

Switching frequency: 0 … 20 Hz

Switching output: Normally open

Connector type: PVC Cable, 2 m

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Diameter, housing length: 30, 50 mm

Housing material: Brass, nickel-plated

Sensing face material: PBT

Mounting: Flush mountable

Condition: Used
