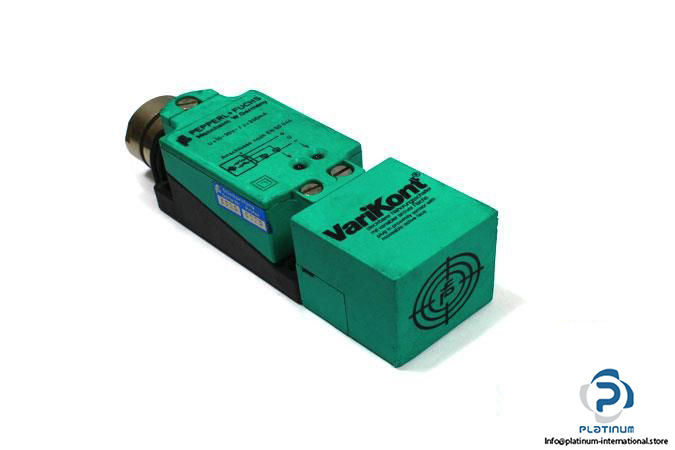

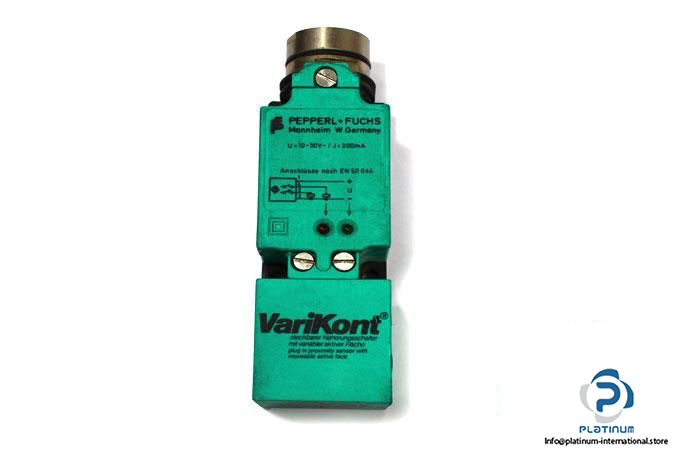

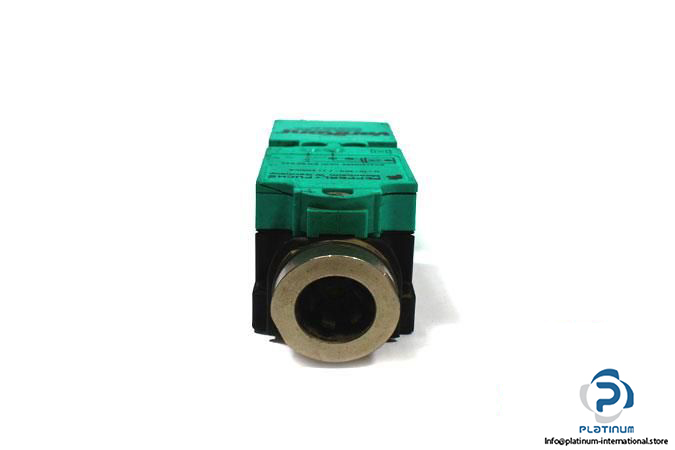

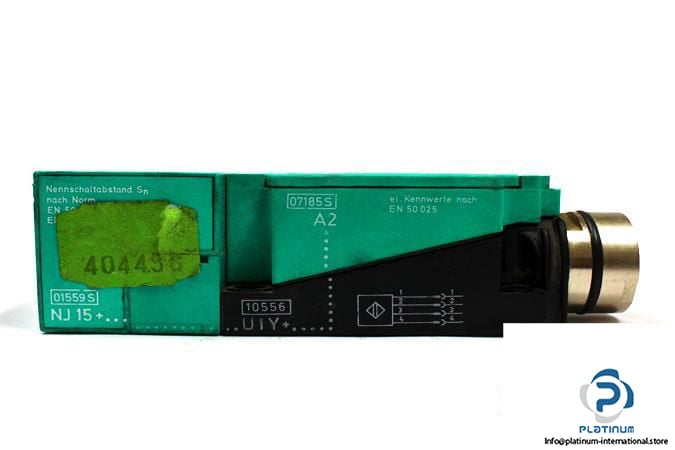

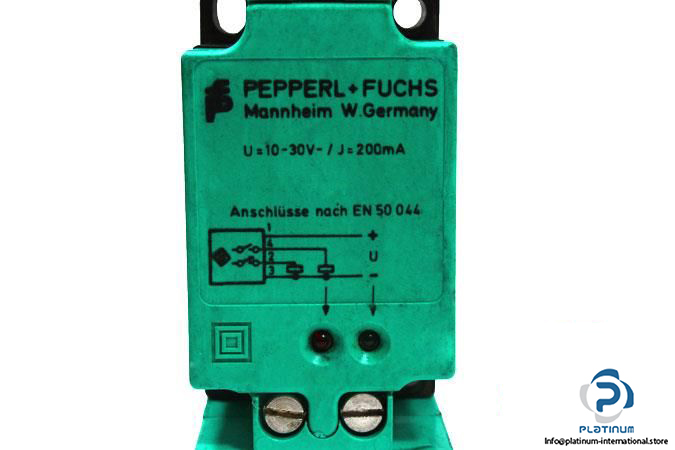

Pepperl+Fuchs NJ15+U1Y+A2 Inductive Sensor

Manufacturer: PEPPERL FUCHS

Series: VariKont

Type: INDUCTIVE SENSOR

Model No.: NJ15U1YA2

Rated operating distance: 15 mm

Assured operating distance: 0 … 12.15 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 200 mA

Switching frequency: 0 … 300 Hz

Electrical design: PNP

Switching output: Complementary

Connector type: Screw terminals

Enclosure rating: IP68

Ambient Operating temperature: -25 … 100°C

Dimensions: 40 x 40 x 118 mm

Housing: Rectangular

Housing material: PBT

Sensing face material: PBT

Mounting: Flush mountable

Condition: Used
