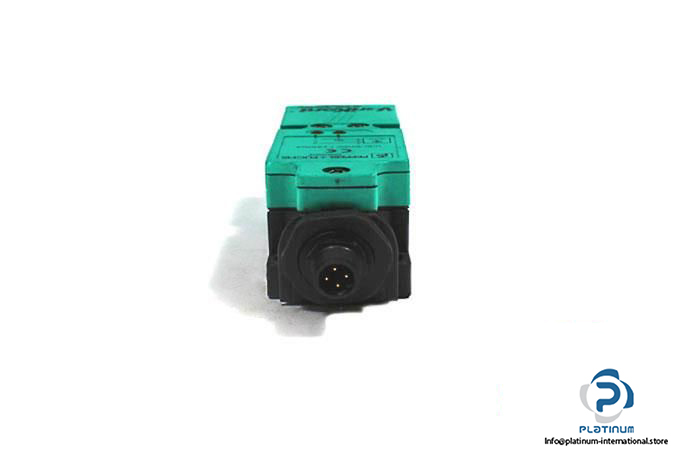

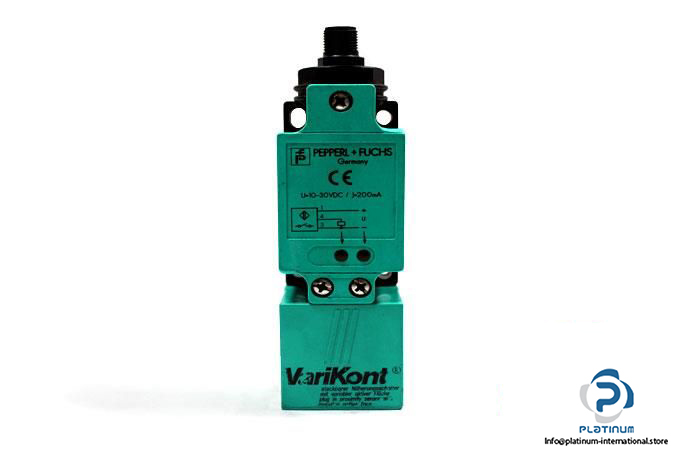

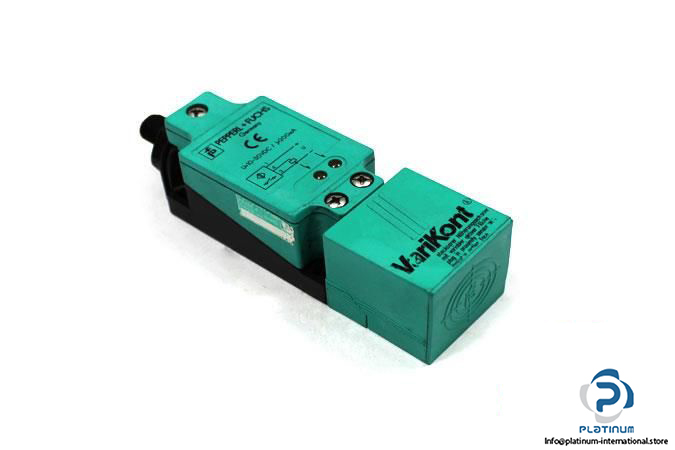

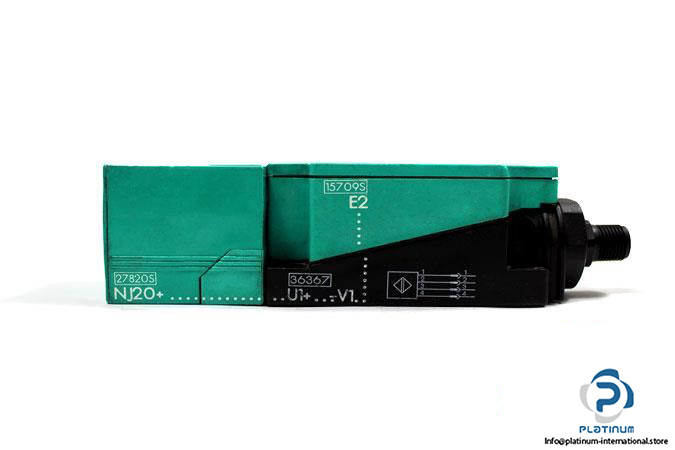

Pepperl+Fuchs NJ20+U1-V1E2 Inductive Sensor

Manufacturer: PEPPERL FUCHS

Series: VariKont

Type: INDUCTIVE SENSOR

Model No.: NJ20U1V1E2

Rated operating distance: 20 mm

Assured operating distance: 0 … 16.2 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 200 mA

Switching frequency: 0 … 100Hz

Electrical design: PNP

Switching output: Normally open

Connector type: M12 Connector,4-pin

Protection class: II

Enclosure rating: IP67

Ambient Operating temperature: -25 … 70°C

Dimensions: 40 x 40 x 118 mm

Housing: Rectangular

Housing material: PBT

Sensing face material: PBT

Mounting: Non-flush mountable

Condition: Used
