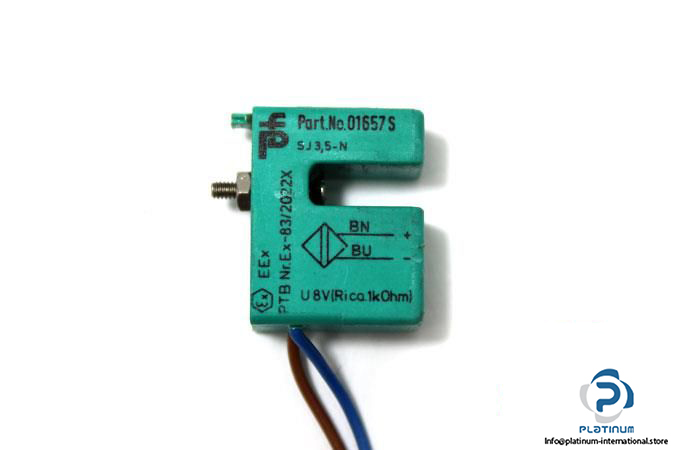

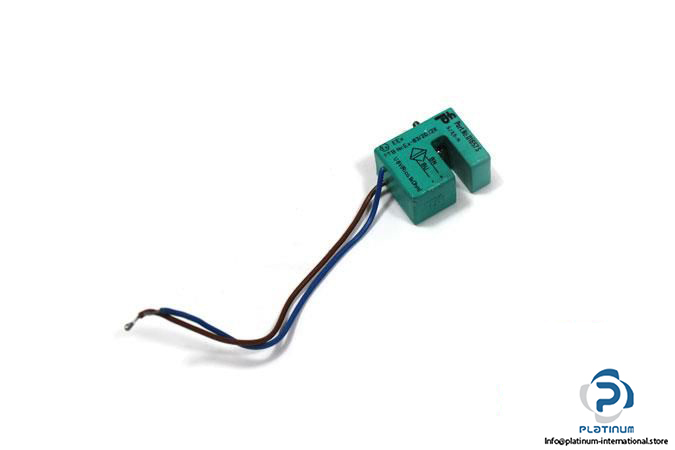

Pepperl+Fuchs SJ3,5-N Inductive Slot Sensor
60,00$
Fabricante: PEPPERL FUCHS Tipo: Sensor de fenda indutivo Modelo: SJ3,5-N Nº da peça: 01657S
Manufacturer: PEPPERL FUCHS
Type: Inductive Slot Sensor
Model: SJ3,5-N
Part No.: 01657S
Depth of insertion: 5 … 7 mm, typ. 6 mm
Slot width: 3.5 mm
Operating Voltage: 5 … 25 V DC
Nominal Voltage: 8.2 V DC
Current Consumption (measuring plate not detected): ≥ 3 mA
Current Consumption (measuring plate detected): ≤ 1 mA
Switching frequency: 0 … 3000 Hz
Hysteresis: 0.41 … 0.6 mm
Switching output: Normally closed
Output type: NAMUR
Connector type: flexible leads LiY, 500 mm
Protection class: II
Enclosure rating: IP
Ambient Operating temperature: -25 … 100°C
Dimensions: 10 x 15 x 18 mm
Housing material: PBT/PPS
