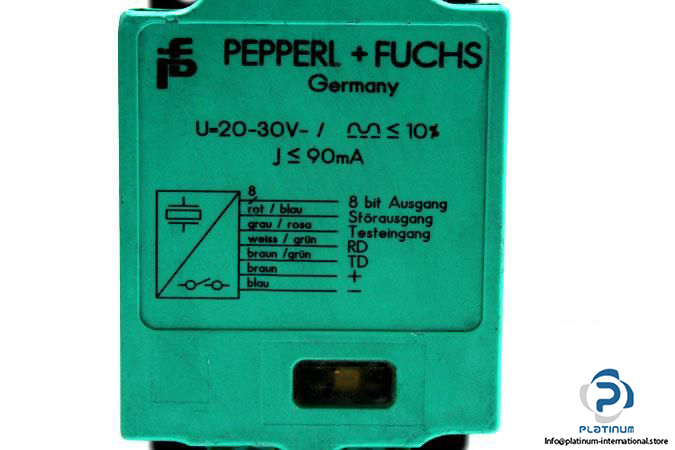

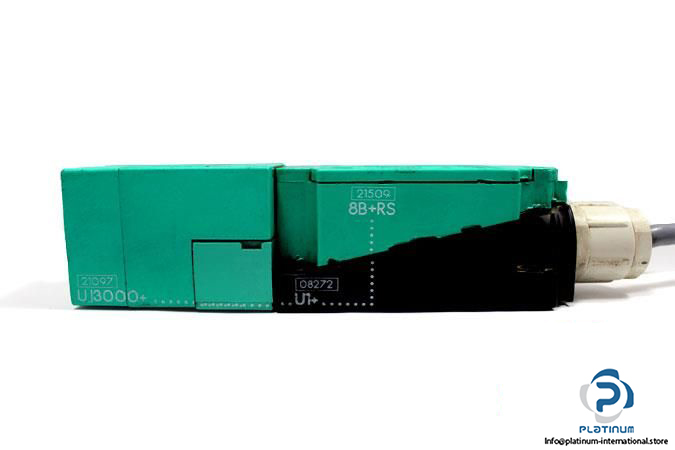

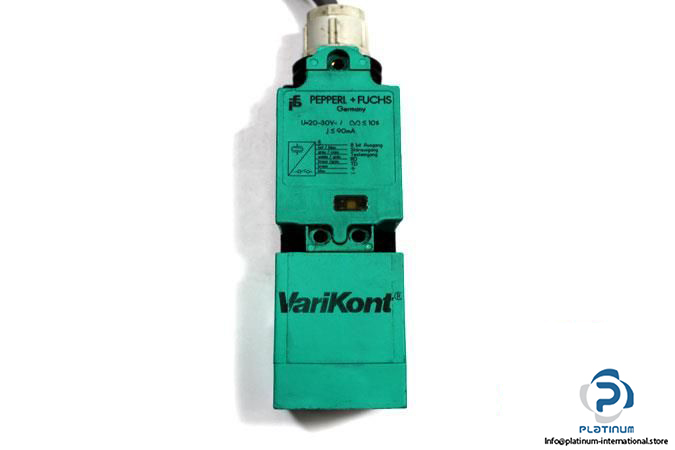

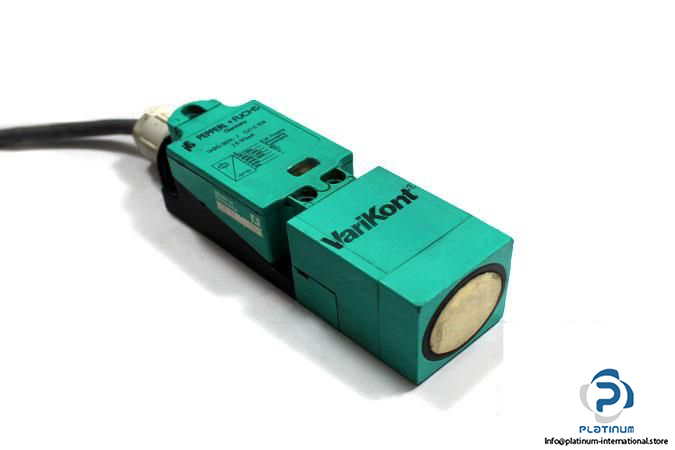

Pepperl+Fuchs UJ3000+U1+8B+RS Ultrasonic Sensor

Manufacturer: PEPPERL FUCHS

Series: VariKont

Type: ULTRASONIC SENSOR

Model: UJ3000U18BRS

Sensing Distance: 300 … 3000 mm

Dead Band: 0 … 300 mm

Standard Target Plate: 100 x 100 mm

Response Delay: Static 4: ≤ 280 ms (factory setting) static 1: ≤ 70 ms dynamic; ≤ 100 ms

Interface Type: RS 232, 9600 bit/s, no parity, 8 data bits, 1 stop bit

Input Type: 1 test input

Operating Voltage: 20 … 30 V DC

No-load Supply Current: 90 mA

Operating Current: 20 mA

Transducer Frequency: Approx. 130 kHz

Switching Output: 8-bit output for outputting object distance, PNP, 1 fault output, PNP, NC

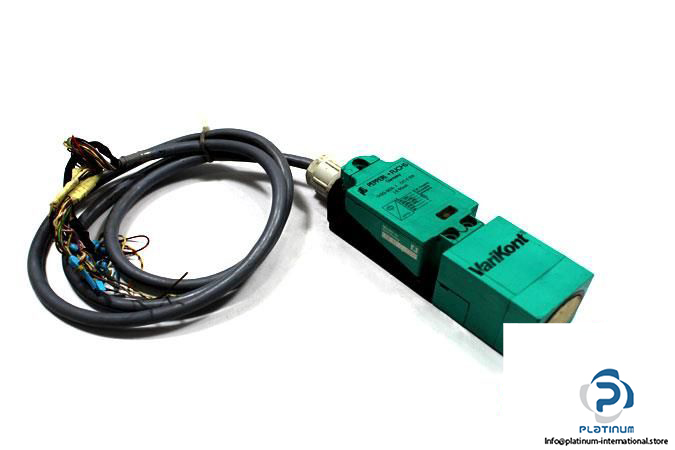

Connector Type: Cable, 2 m

Enclosure Rating: IP65

Ambient Operating Temperature: -10 … 50°C

Dimensions: 40 x 40 x 132 mm

Housing: Rectangular

Housing Material: PBT

Transducer: epoxy resin/hollow glass sphere mixture; polyurethane foam

Weight: 290 g
