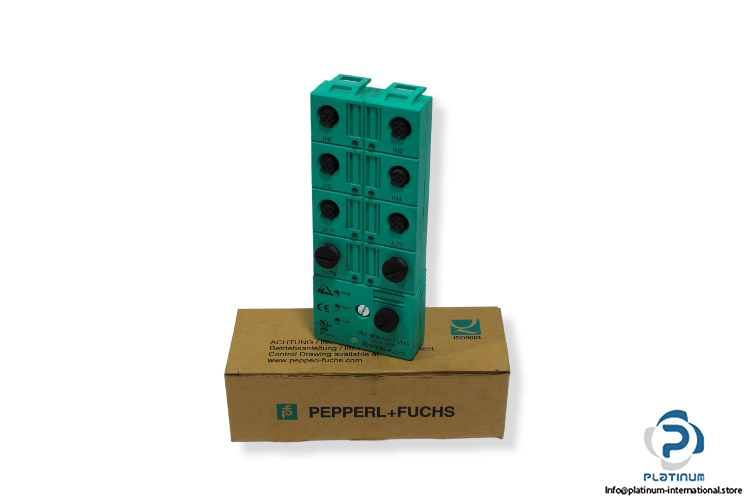

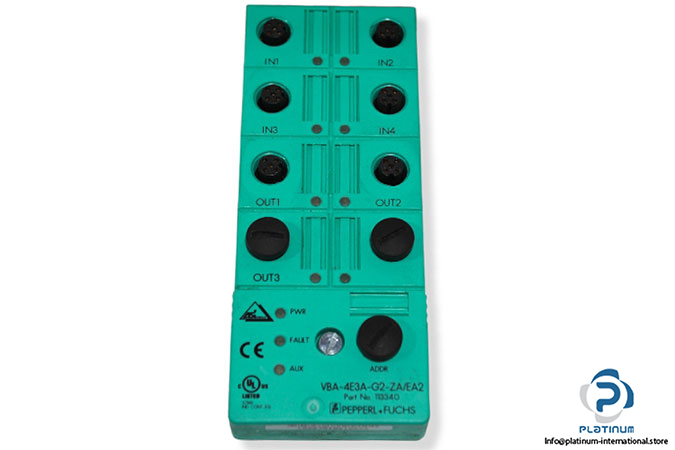

Pepperl+Fuchs VBA-4E3A-G2-ZA/EA2 AS-Interface Sensor/Actuator Module

Manufacturer: Pepperl+Fuchs

Type: AS-Interface Sensor/Actuator Module

Model: VBA-4E3A-G2-ZA/EA2

Part No.: 113340

Auxiliary voltage (output): 20 … 30 V DC

Rated operating voltage : 26.5 … 31.6 V from AS-Interface

Rated operating current: ≤ 40 mA (without sensors) / max. 240 mA

Number of Inputs: 4 inputs (PNP)

Number of Outputs: 3 electronic outputs (PNP)

Ambient Temperature: -25 … 60 °C

Degree of Protection: IP67

Protection Class: Class 3

Housing Material: PBT

Mounting: Mounting plate
