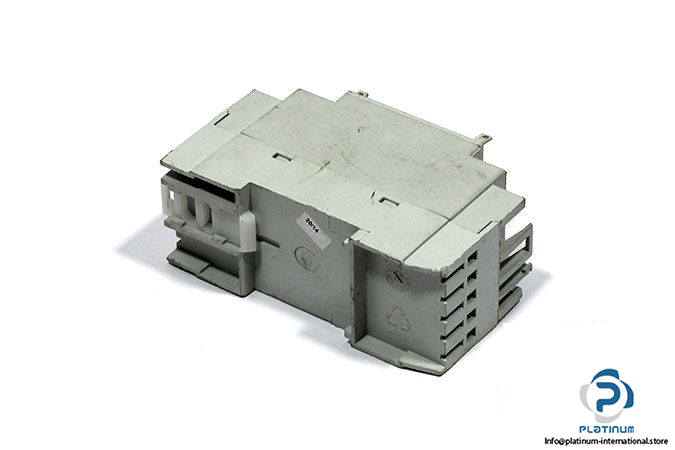

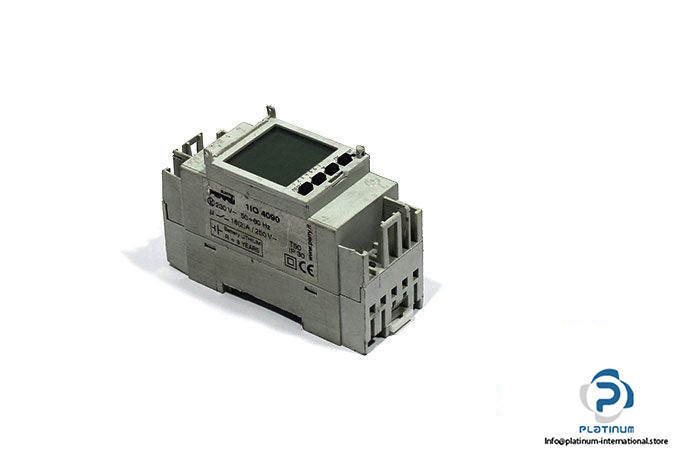

Perry 1IO 4090 Astronomical Twilight Time Switch

Manufacturer: Perry

Type: Astronomical Twilight Time Switch

Model: 1IO4090

Power Supply: 230V a.c.+/-10%, 50Hz

Nominal Data Contats: 16 (2) A / 250V a.c.

Max Number of Programs: (ON+OFF) 45

Minimum ON-OFF Engaging Time: 1 minute

Backlit LCD Display: 1″ 1/3

Max Switching Power: 3500 VA

Power LP incandescence: 2300 W

Power LP Fluorescent Tubes Uncompensated: 1000 W

Power LP Fluorescent Tubes in Parallel, Compensated: 500 W

Power Compact LP Fluorescent Tubes: 600 W

Max Size of Cables At Terminals: 6 mm²

Operating Temperature: -20…60 °C

Dimensions: 35 x 60 x 90 mm

Protection Class: IP20

Weight: 0.12 kg
