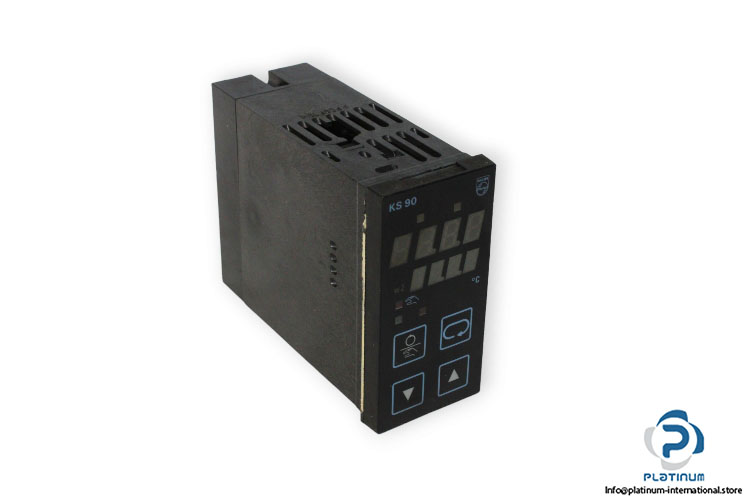

Philips KS 90 Compact Industrial Controller

Manufacturer: Philips
Type: Compact industrial controller
Model: KS 90
Part No.: 9404 410 40991/8327

Supply Voltage: 115/230 VAC
Frequency: 48 … 62 Hz
Power consumption: approx. 6,5 VA

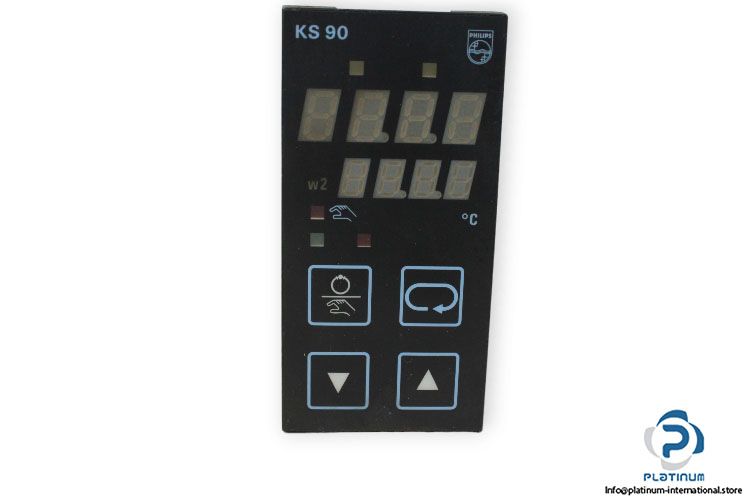

Displays: Two red 4-digit LED displays
Display Range: -999 … 9999
Switching controllers: 3 relays (Normally open) and 1 logic output
Relays rating: 250 V,3 A,500 VA max.

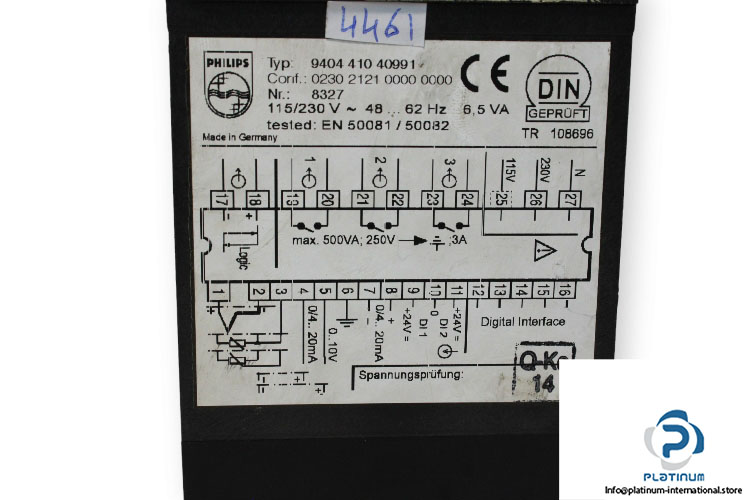

Electrical connection: Screw terminals
Mounting method: Panel-mounting with two fixing clamps at top/bottom
Operation temperature: 0 … 60°C
Protection degree: IP 00
Dimensions: 58 x 78 x 60 mm
