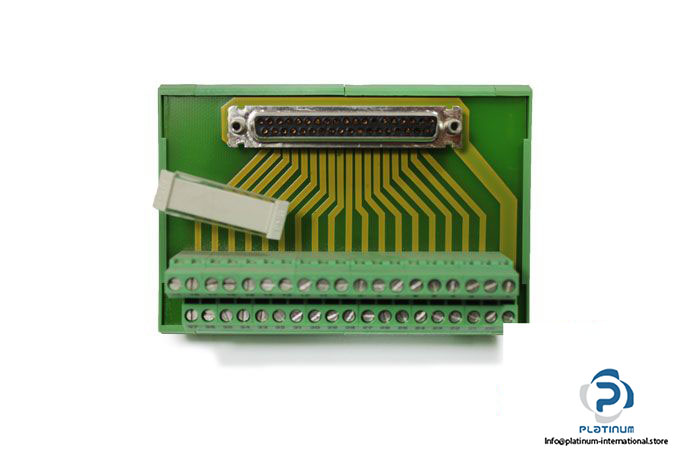

Phoenix Contact FLKM-D37 Sub/B – 2281212 Interface Module

Manufacturer: Phoenix Contact

Type: Interface Module

Model: FLKM-D37 SUB/B – 2281212

Order No.: 2281212

Max. Perm. Operating Voltage: 125 V AC/DC

Max. Perm. Current (Per Branch): 2.5 A / 1.5 A (with even load on all branches)

Number of Positions: 37

Rated Insulation Voltage: 125 V

Rated Surge Voltage: 1.2 kV (Functional insulation)

Degree of Pollution: 2

Overvoltage Category: II

Connection Method: Screw connection

Stripping Length: 8 mm

Screw Thread: M3

Degree of Protection: IP20

Ambient Temperature (Operation): -20 … 50 °C

Dimensions: 77 X 101.3 X 58.5 mm

Weight: 0.2 Kg
