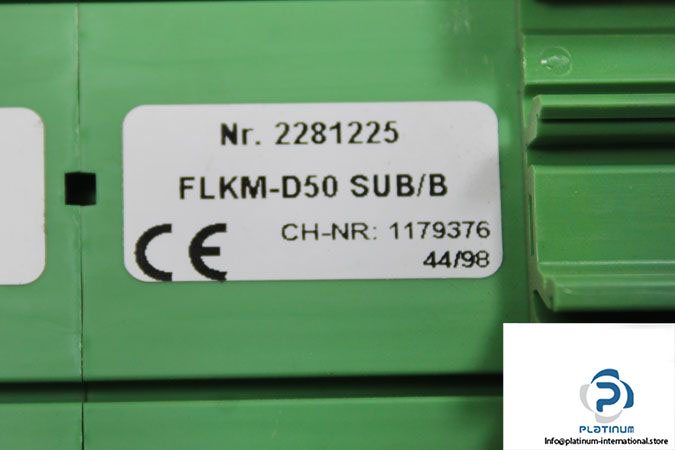

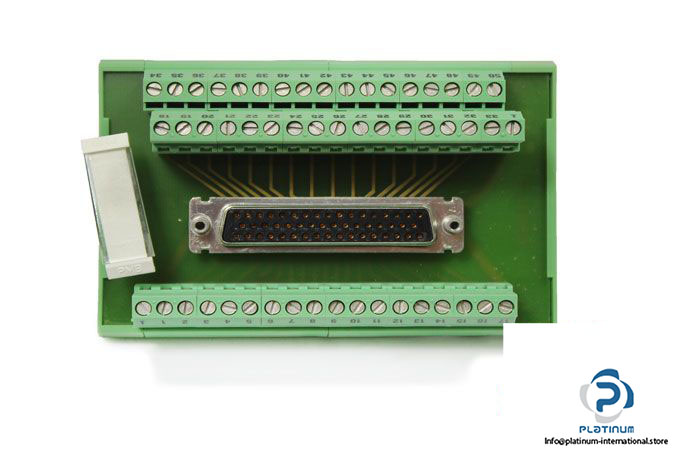

Phoenix Contact FLKM-D50 Sub/B – 2281225 Interface Module
Novo
Em estoque4 unidadesPronto para envio
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
Manufacturer: Phoenix Contact
Type: Interface Module
Model: FLKM-D50 SUB/B – 2281225
Order No.: 2281225
Max. Perm. Operating Voltage: 125 V AC/DC
Max. Perm. Current (Per Branch): 2.5 A / 1.5 A (with even load on all branches)
Rated Insulation Voltage: 125 V
Rated Surge Voltage: 1.2 kV (Functional insulation)
Degree of Pollution: 2
Overvoltage Category: II
Number of Positions: 50
Connection Name: Field level
Connection Method: Screw connection
Stripping Length: 8 mm
Degree of Protection: IP20
Ambient Temperature (Operation): -20 … 50 °C
Dimensions: 77 X 112.5 X 58.5 mm
Weight: 0.26 Kg
