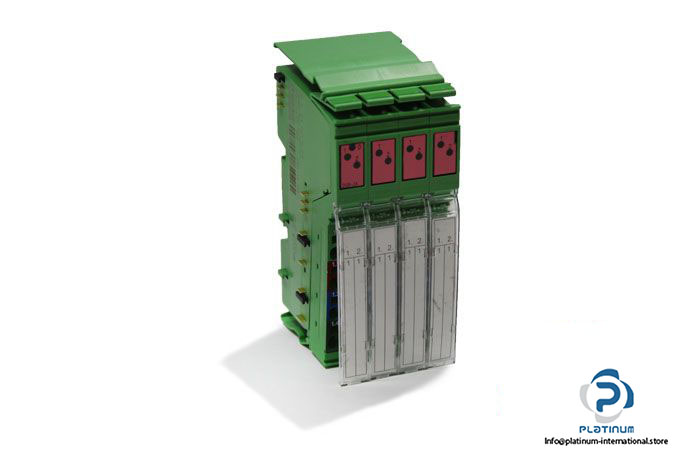

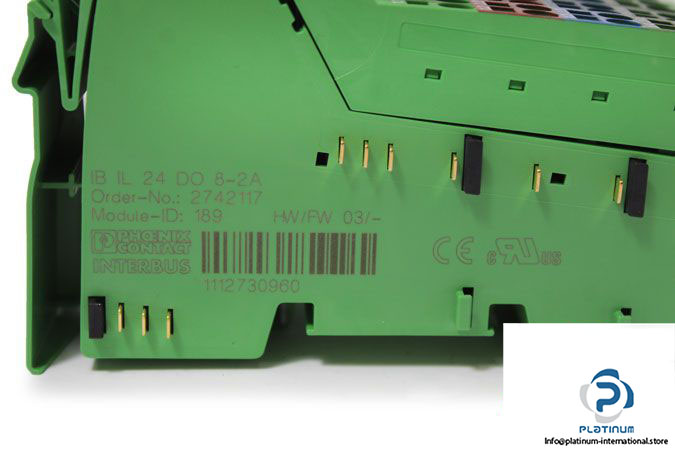

Phoenix Contact IB IL 24 DO 8-2A – 2742117 Inline Terminal

Manufacturer: Phoenix Contact

Type: Inline Terminal

Model: IB IL 24 DO 8-2A – 2742117

Order No.: 2742117

Nominal Output Voltage: 24 VDC

Output Current: 2 … 8 A

Nominal Load, Inductive: 48 W

Number of Outputs: 8

Color: green

Output Name: Digital outputs

Output Connection Method: Spring-cage connection

Interface Designation: Inline local bus

Interface Connection Method: Inline data jumper

Air Pressure (Operation): 70 … 106 kPa

Degree of Protection: IP20

Ambient Temperature (Operation): -25 … 55 °C

Dimensions: 119.8 X 48.8 X 71.5 mm

Weight: 0.11 Kg
