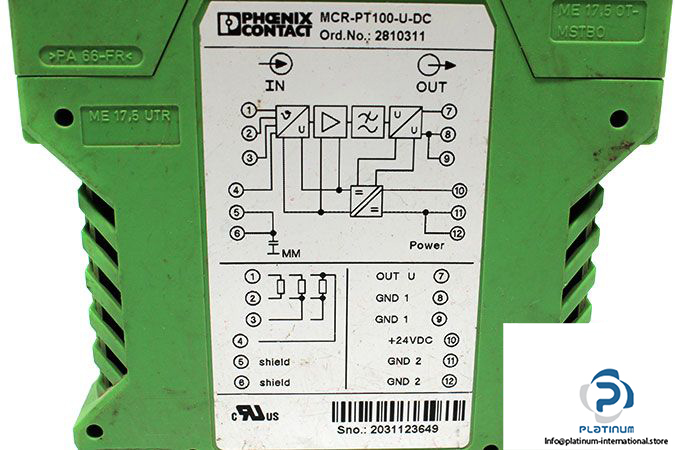

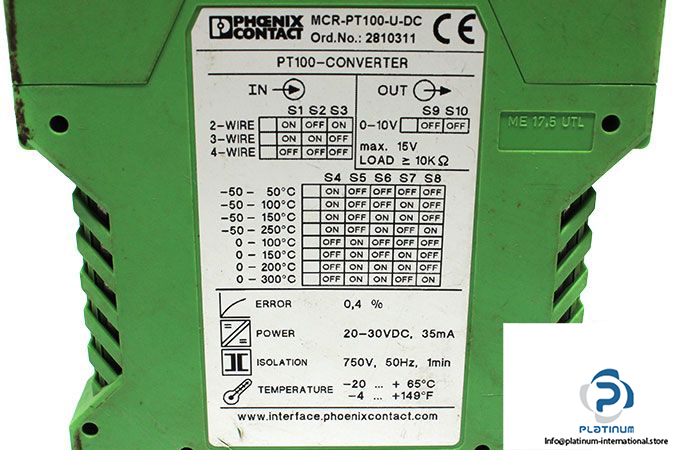

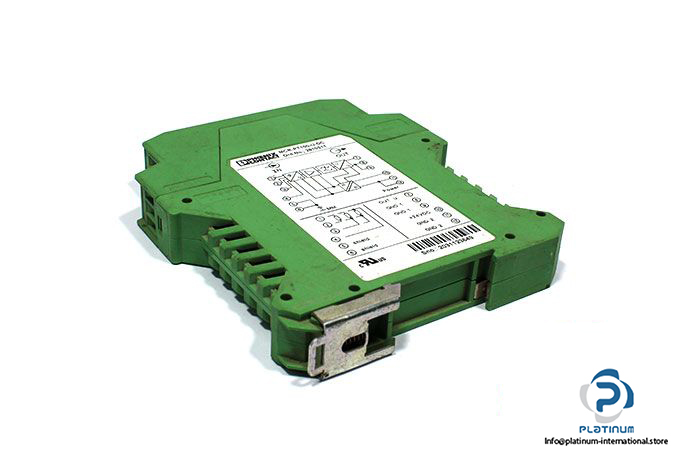

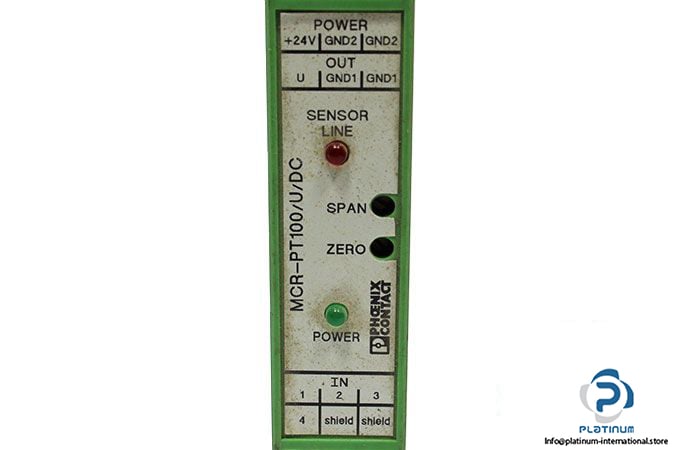

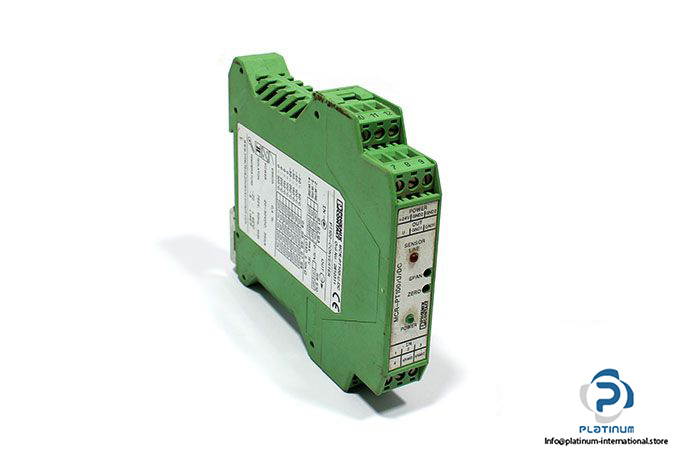

Phoenix Contact MCR-PT100-U-DC Temperature Transducer

Manufacturer: PHOENIX CONTACT

Type: Temperature Transducer

Model: MCR-PT100-U-DC

Art No.: 2810311

Supply Voltage: 20 … 30 V DC

Max. Current Consumption: 35 mA

Voltage Output Signal: 0 … 10 V

Max. Output Voltage: 15 V

Load/Output Load Voltage Output: ≥ 10 kΩ

Ambient Temperature: –20 °C … 65 °C

Number of Channels: 1 Channel

Connection Method: Pluggable screw connection

Degree of protection: IP20

Housing material: Polyamide PA non-reinforced

Dimensions: 99 x 114 x 18 mm
