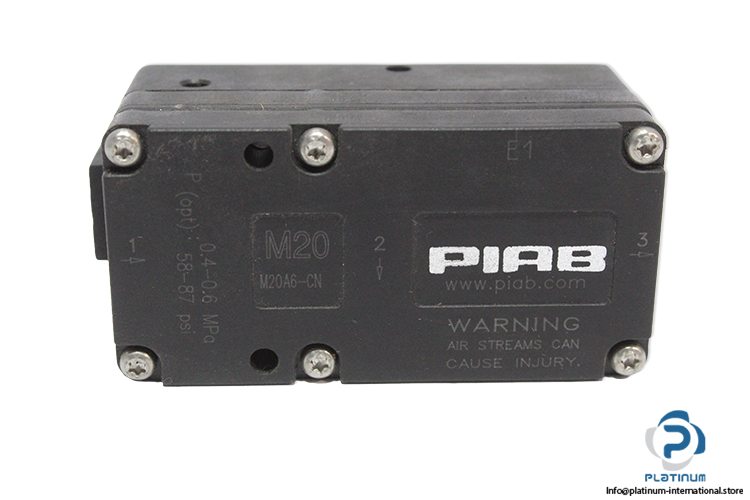

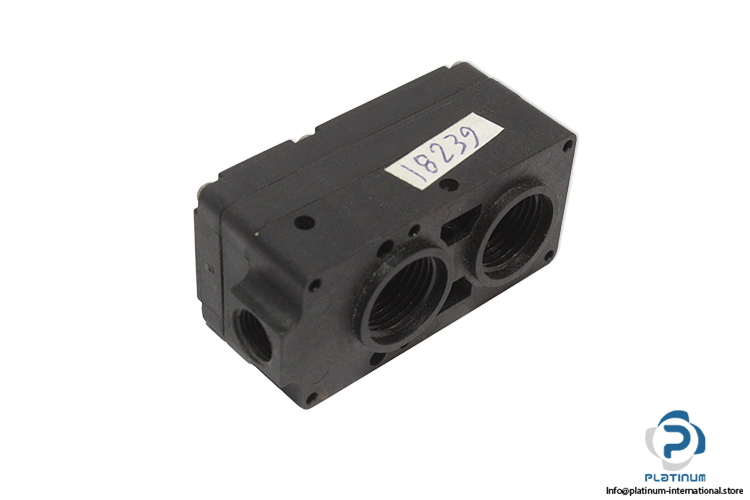

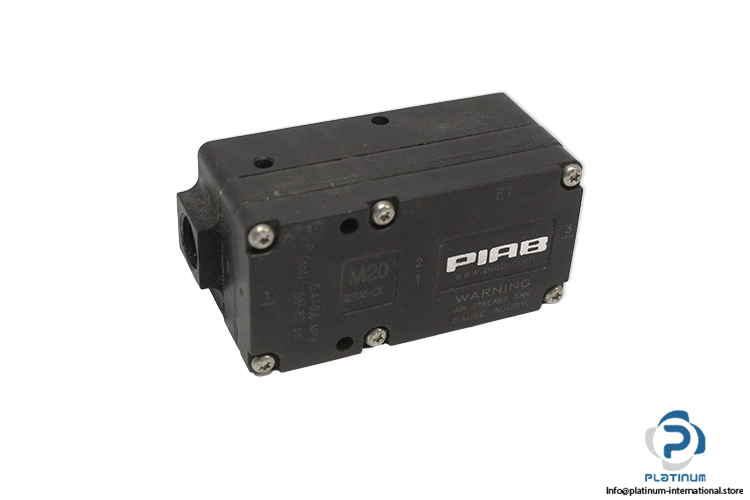

Piab M20A6-CN Vacuum Pump
Novo
Em estoque1 unidadePronto para envio
Vacuum Pump
A lightweight and efficient vacuum pump designed for medium vacuum applications, offering stable suction performance, low noise operation, and reliable functionality in industrial automation systems.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
PIAB M20A6-CN Vacuum Pump
A compact and efficient vacuum pump designed to generate medium vacuum levels for industrial handling, automation, and pneumatic applications. This model ensures stable vacuum performance, low noise operation, and reliable functionality across a wide temperature range. Manufacturer: PIAB
Type: Vacuum Pump
Model: M20A6-CN
| Vacuum Level | Up to -84 kPa |
| Operating Pressure | 0.4 “ 0.6 MPa (58 “ 87 psi) |
| Feed Pressure (Max.) | 0.7 MPa |
| Air Consumption | 1.4 Nl/s |
| Noise Level | 57 “ 68 dBA |
| Temperature Range | -20 °C to +80 °C |
| Particle Size (Compressed Air Max.) | 250 µm |
| Material | CuZn, Nitrile (NBR), PA, PE, POM, Stainless Steel |
| Weight | 57.5 g |
| Connection | M20, Connection C |
| Sealings | NBR |
