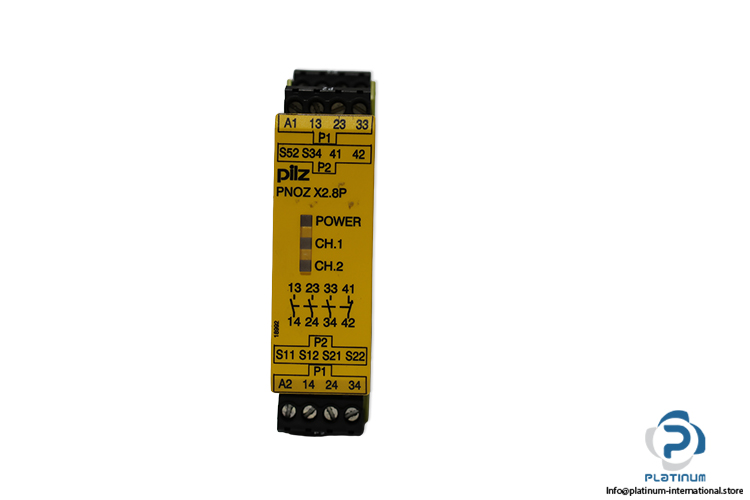

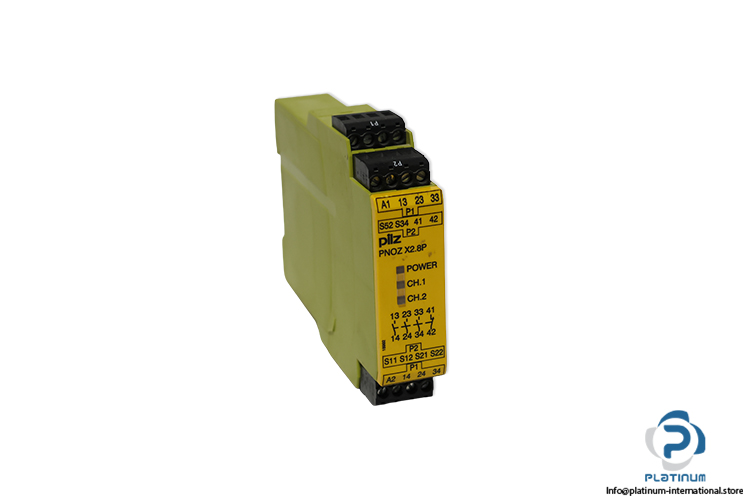

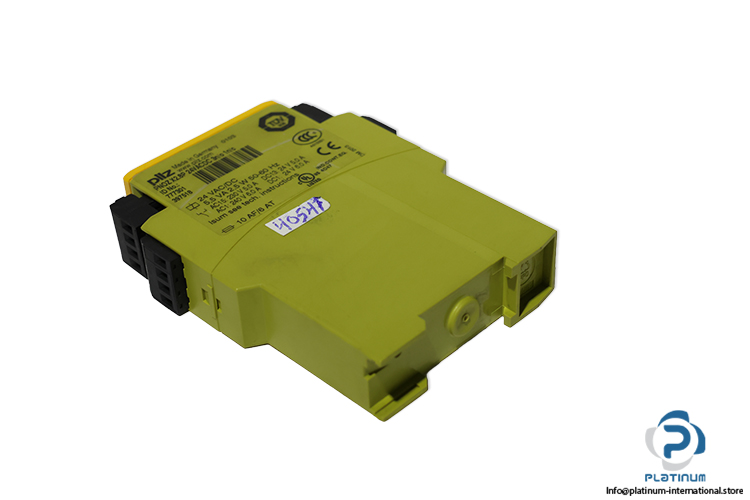

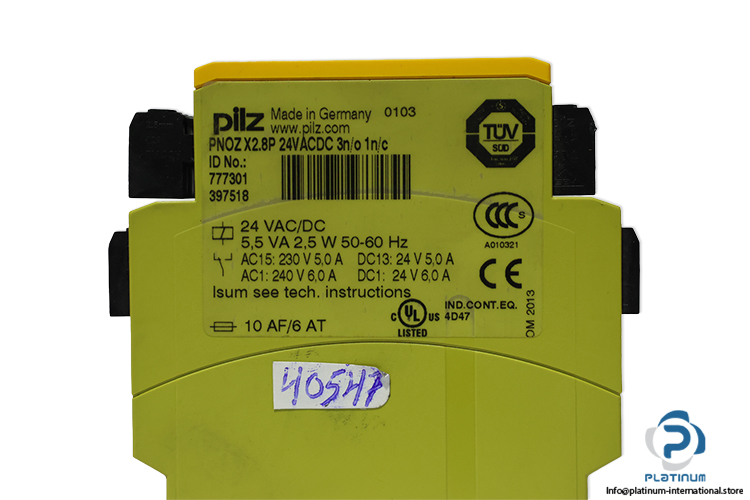

Pilz Pnoz X2.8P 24VACDC 3N/O 1N/C 397518 Safety Relay
Usado
Em estoque1 unidadePronto para envio
Safety Relay PILZ PNOZ X2.8P dual-channel safety relay with 24 V AC/DC supply, designed for reliable industrial safety and automation applications.
Novo
Em estoque
Este produto também está disponível novo
Ver Nova Versão →
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
| Part No. | 777301 |
| Ref. No. | 397518 |
| Rated Supply Voltage | 24 V AC/DC |
| Rated Current Max. | 5 A |
| Power | 5,5 VA / 2.5 W |
| Frequency | 50 … 60 Hz |
| Number of Channels | 2 Channels |
| Contact | 3 Normally Open (NO) + 1 Normally Open (NO) Delayed |
| Rated Contact Voltage | AC15: 230 V / AC1: 240 V / DC13 / DC1: 24 V |
| Rated Contact Current | AC15 230 V: 5 A / AC1 240 V: 6 A / DC1 24 V: 6 A / DC13 24 V: 5 A |
| Electrical Connection | Screw terminals |
| Ambient Temperature | -10 ... 55 °C |
| Dimensions | 94 x 22.5 x 121 mm |
| Stock Key | JO-004 |
| Condition | Used |
| SKU | 1104191 |
| Weight | 0,19 |
