Rexroth 4WE 6 J62/EG24N9K4/B10 Directional Control Valve Coil 021389 E 294

Name: REXROTH 4WE 6 J62/EG24N9K4/B10 DIRECTIONAL CONTROL VALVE COIL 021389 E 294
Brand: REXROTH
SKU: 995196
Availability: LimitedAvailability

rexroth-4we-6-j62_eg24n9k4_b10-directional-control-valve-coil-021389-e-294-3

rexroth-4we-6-j62_eg24n9k4_b10-directional-control-valve-coil-021389-e-294-2

rexroth-4we-6-j62_eg24n9k4_b10-directional-control-valve-coil-021389-e-294-1

Usado

Em estoque1 unidadePronto para envio

Válvula de controle direcional Rexroth acionada por solenóide com montagem em subplaca, tamanho 6 mm, classificada para 350 bar, com bobina 24 V CC para sistemas hidráulicos de alta pressão.

Fabricante

REXROTH

SKU

995196

Categoria

Directional Control Valves

Condição

Usado

24v 6mm coil Control dc Directional Fluid High Hydraulic Industrial Power Pressure Rexroth solenoid sub-plate Valve

Grande Estoque

Envio Global

Suporte Especializado

Qualidade Garantida

REXROTH 4WE6J62EG24N9K4B10 DIRECTIONAL CONTROL VALVE

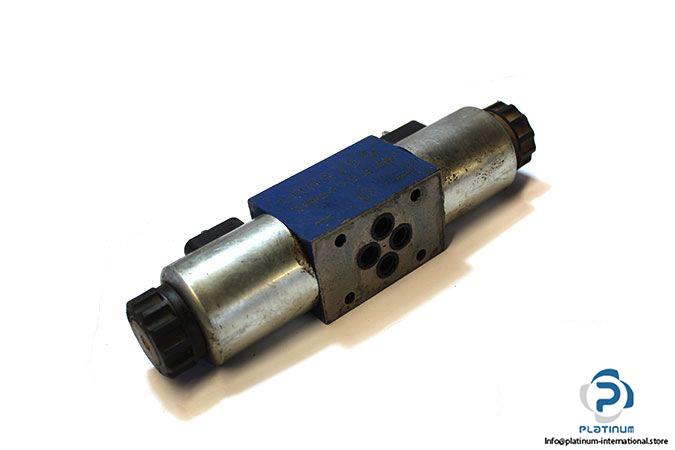

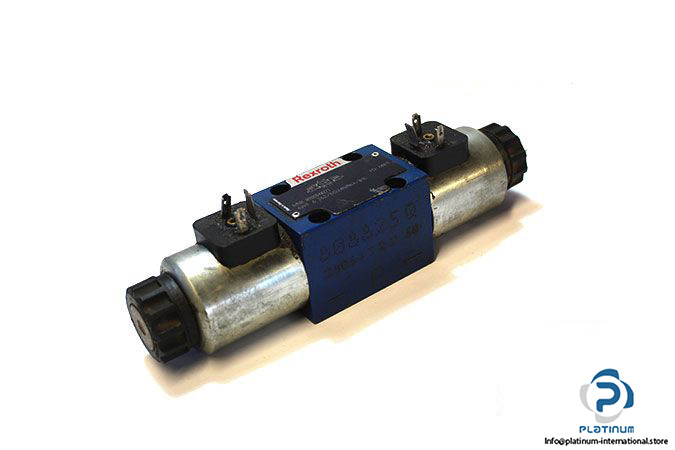

The Rexroth 4WE 6 J62/EG24N9K4/B10 is a high-performance solenoid operated directional control valve designed for precise control of hydraulic fluid flow in industrial systems. Featuring robust construction and a compact size, it is ideal for sub-plate mounting applications requiring high pressure and fast response.

Manufacturer: REXROTH

Type: Solenoid Operated Directional Control Valve

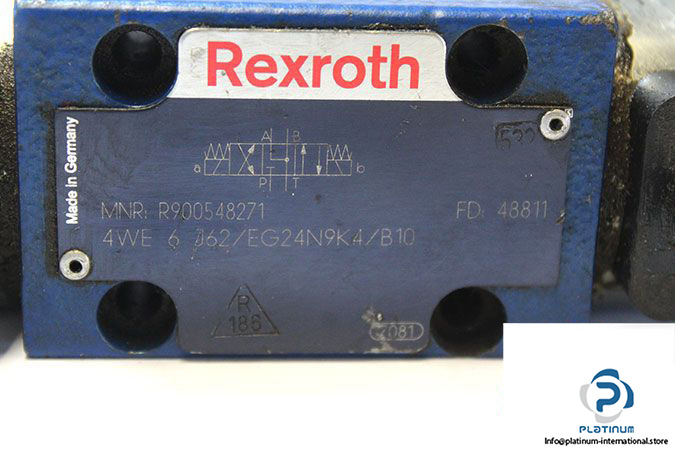

Model: 4WE 6 J62/EG24N9K4/B10

MNR: R900548271

Attached Component

Fluid	Oil
Size	6
Type of Actuation	Electrically
Operating Pressure at Ports A, B, P Max.	350 bar
Operating Pressure at Port T Max.	210 bar
Flow Rate Max.	80 l/min (DC), 60 l/min (AC)
Hydraulic Connection	Sub-plate
Ambient Temperature Range	-30 / 50 °C

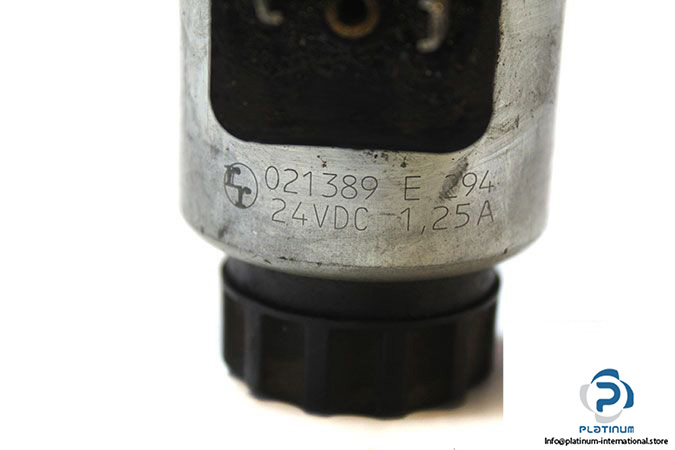

REXROTH 021389E294 SOLENOID COIL Type	Solenoid Coil
Supply Voltage	24 V DC
Current Consumption	1.25 A
