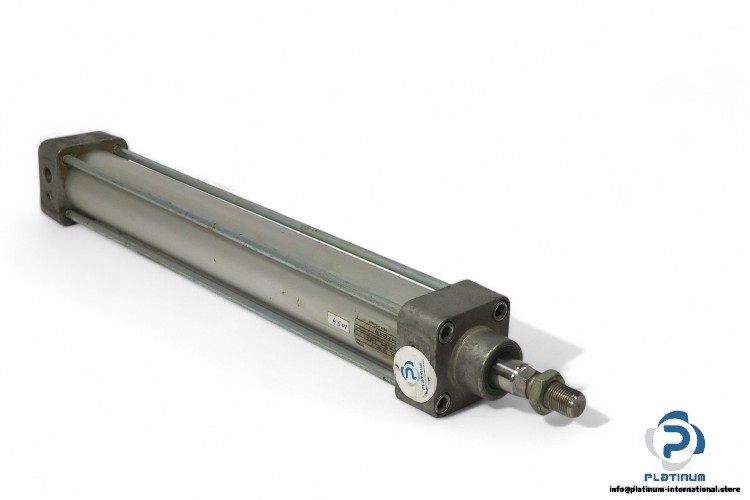

Rexroth 5232030700 ISO Cylinder

REXROTH ISO Cylinder 5232030700

The REXROTH ISO Cylinder 5232030700 is designed for high-performance pneumatic systems, offering reliable and efficient operation with a maximum pressure of 10 bar. This double-acting cylinder is ideal for industrial automation applications, featuring a square shape and a male piston rod end for easy integration into systems.

Manufacturer: REXROTH

Type: ISO Cylinder

Model: 5232030700

Technical Specifications

• Media: Compressed Air
• Bore Diameter: 50 mm
• Stroke: 350 mm
• Bore x Stroke: 50 x 350 mm
• Rod Diameter: 20 mm
• Frame Dimensions: 67 x 485 mm
• Pneumatic Connection: G 1/4
• Pressure Max.: 10 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
