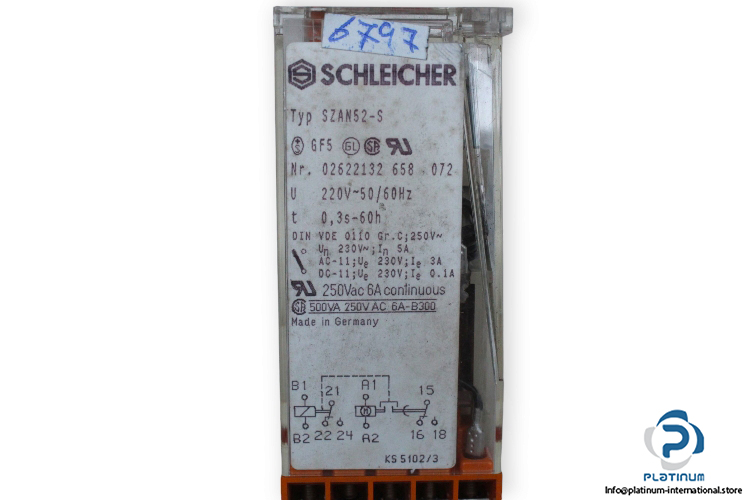

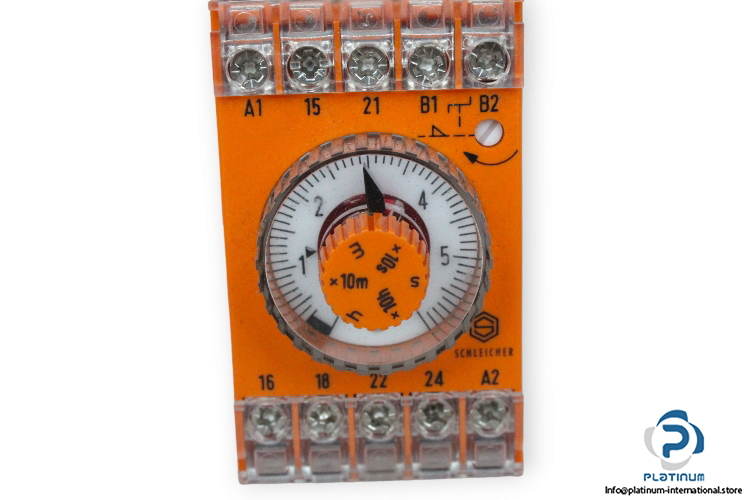

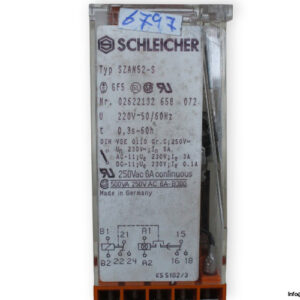

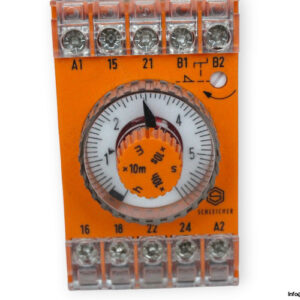

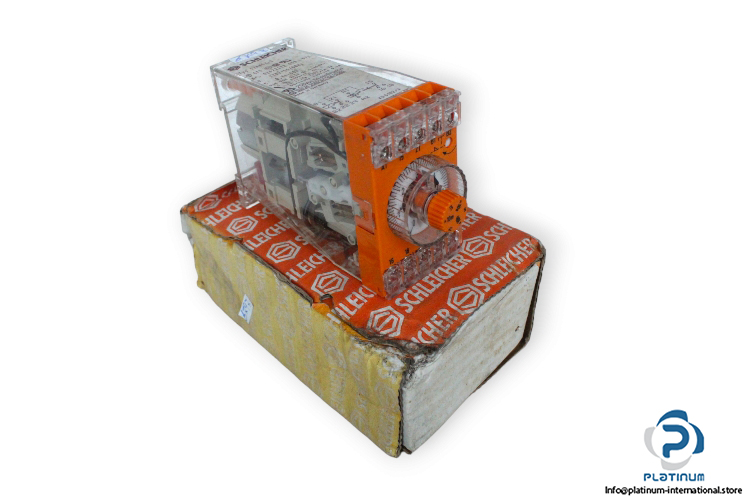

Schleicher SZAN52-S Timer

Manufacture: Schleicher
Type: Timer
Model: SZAN52-S
MNR.: 02622132 658 072

Rated operating voltage Un: 230 V AC
Max. continuous current In: 5 A
Setting range: 0.3s … 60h
Contact assignment: 1 timed and 1 instantaneous change-over contact
Contact material: Ag Cu
Switching capacity:
AC-11: 230 V,3 A
DC-11: 230 V,0.1 A
Rated impulse voltage: 4 Kv
Protection degree: IP 30/IP 20
Ambient operating Temperature: -10 … 55 °C
Time setting / number of time ranges: analog / 6
Recovery time: ≤ 250 ms
