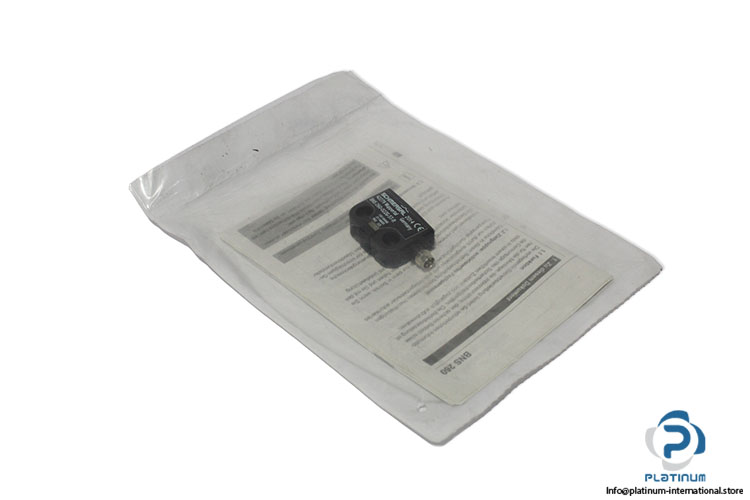

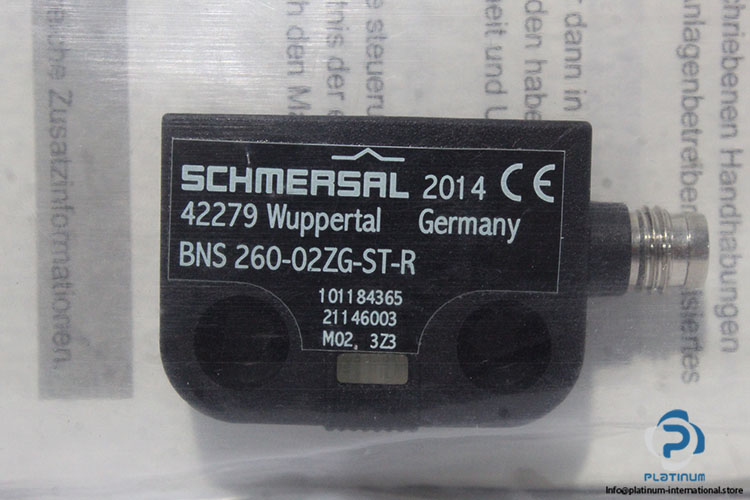

Schmersal BNS 260-02ZG-ST-R Magnetic Safety Sensor

Name: SCHMERSAL BNS 260-02ZG-ST-R MAGNETIC SAFETY SENSOR
SKU: 1101030
Availability: LimitedAvailability

schmersal-bns-260-02zg-st-r-magnetic-safety-sensor(new)

schmersal-bns-260-02zg-st-r-magnetic-safety-sensor(new)-1

schmersal-bns-260-02zg-st-r-magnetic-safety-sensor(new)-2

schmersal-bns-260-02zg-st-r-magnetic-safety-sensor(new)-3

Novo

Em estoque2 unidadesPronto para envio

Magnetic Safety Sensor The SCHMERSAL BNS 260-02ZG-ST-R is a compact magnetic safety sensor with two NC safety contacts, M8 connection, and IP67 protection for industrial safety applications.

Fabricante

SCHMERSAL

SKU

1101030

Categoria

Sensors

Condição

Novo

Grande Estoque

Envio Global

Suporte Especializado

Qualidade Garantida

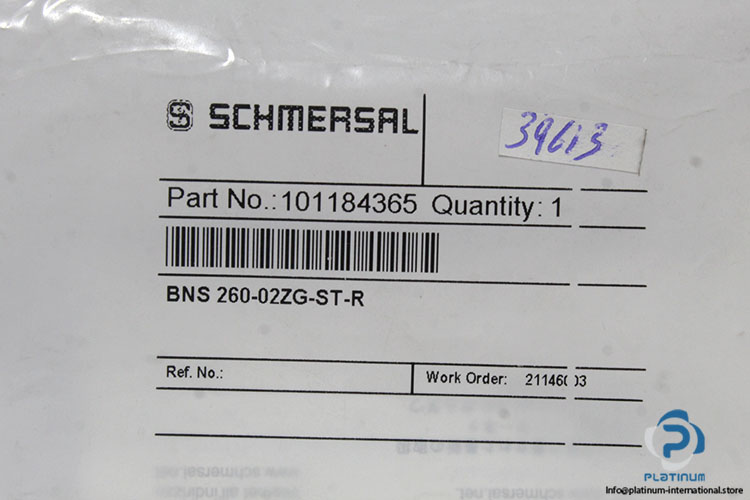

Item number	101184365
Code	211 46003,M02, 3Z3
Rated insulation voltage Ui	75 VDC
Rated impulse withstand voltage Uimp	0.8kV
Required rated short-circuit current	100A
Switching voltage, maximum	24VDC
Switching current, maximum	0.01A
Standards	BG-GS-ET-14,EN IEC 60947-5-3, EN ISO 13849-1
Working principle	Magnetic drive
Installation conditions (mechanical)	quasi-flush
Housing material	Glass-fibre, reinforced thermoplastic
Number of normally closed (NC)	2
Number of safety contacts	2
Actuating element	Magnet
Door hinge	Right
Assured switching distance "ON" Sao	5mm
Assured switching distance "OFF" Sar	15mm
Direction of motion	Head-on to the active surface

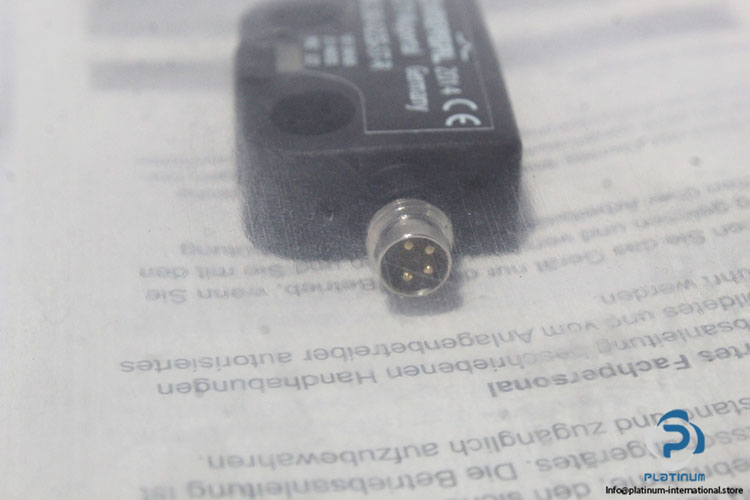

Termination Connector	M8
Tightening torque of electrical connection	0.3Nm
Length of sensor	13mm
Width of sensor	26mm
Height of sensor	36mm
IP Degree of protection	IP67
Ambient temperature	-25 ... +70 °C
Stock key	CON003
Condition	New
SKU	1101030
Weight	0,04
