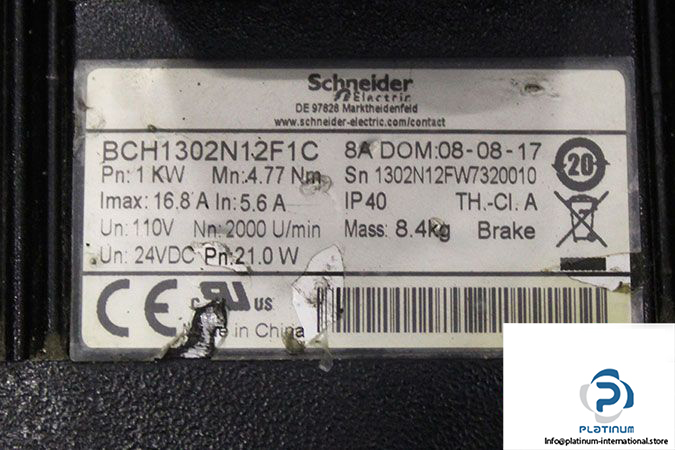

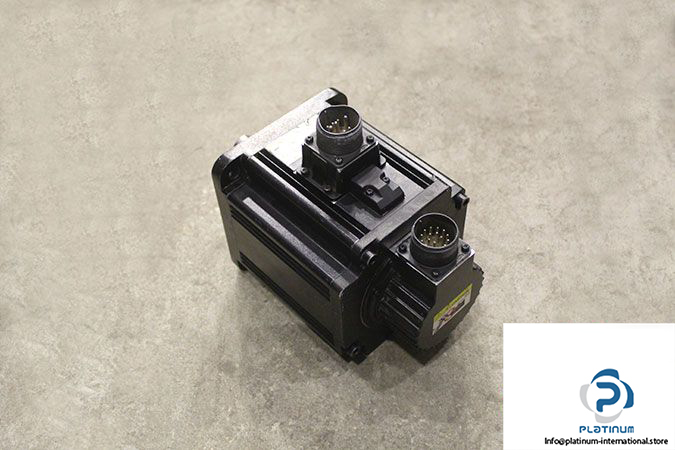

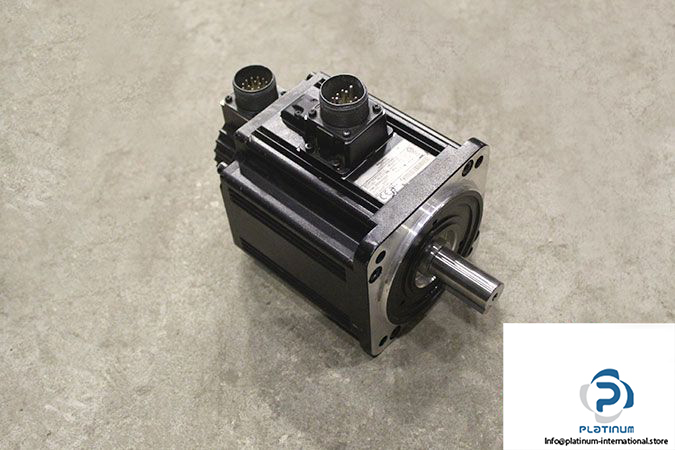

Schneider BCH1302N12F1C Servo Motor

Manufacturer: Schneider Electric, Elau

Type: Servo Motors

Model: BCH1302N12F1C

Rated Torque [Nm]: 4.77

Rated Current [A]: 5.6

Max Current [A]: 16.8

Rated Voltage [V]: 110

Rated Power [kW]: 1.0

Torque Constant [Nm/A]: 0.85

Rated Speed [rpm]: 2000

Max Speed [rpm]: 3000

Brake Voltage [VDC]: 24

Brake Power [W]: 21

Holding Torque [Nm]: 10

Shaft End: Keyed

Flange Size [mm]: 130

Shaft Diameter [mm]: 22

Shaft Length [mm]: 47

Key Width [mm]: 8

Protection Class [IP]: 40

Thermal Class: A

Weight [kg]: 8.385
