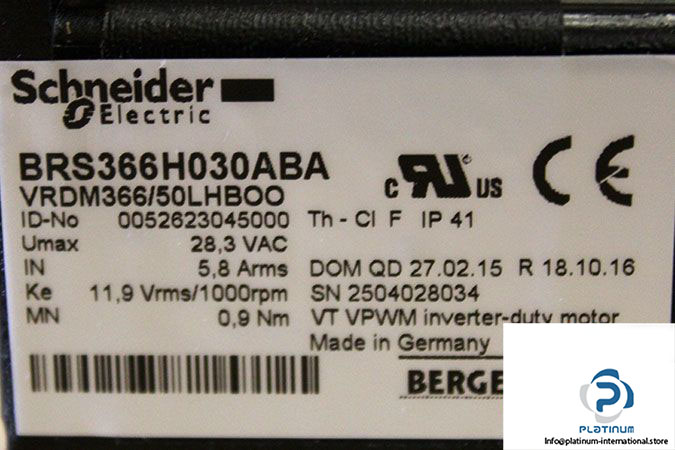

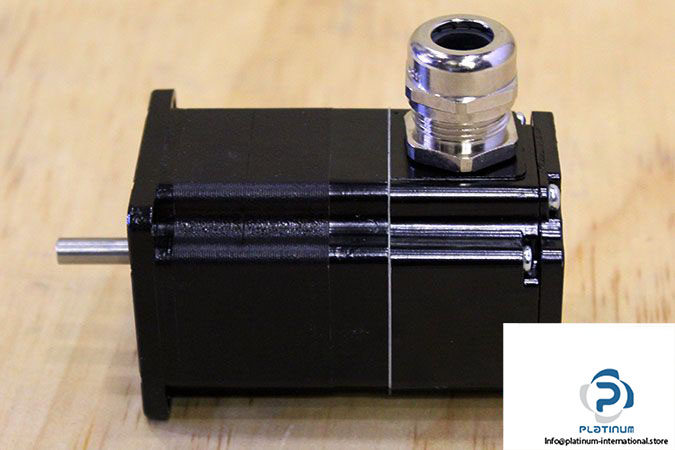

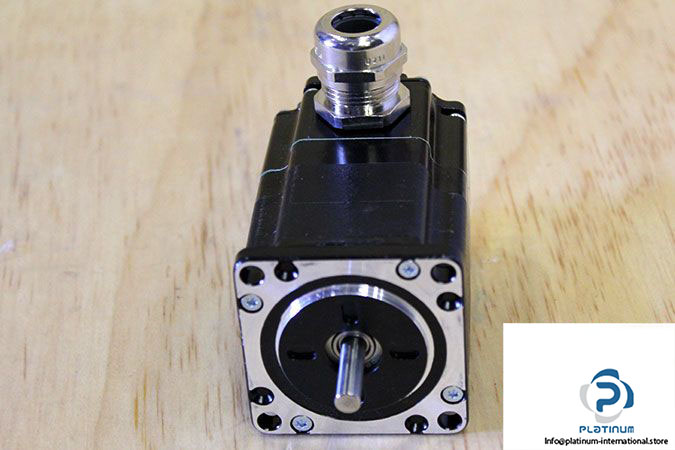

Schneider Electric BRS366H030ABA VRDM366/50LHBOO 3-PHASE Stepper Motor
Novo
Em estoque5 unidadesPronto para envio
244,44$
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
Manufacturer: ELAU – SCHNEIDER ELECTRIC / BERGER LAHR
Type: 3-PHASE STEPPER MOTOR
Model: BRS366H030ABA
ID No: 0052623045000
MRN: VRDM366/50LHBOO
Rated Voltage : 28.3 V AC
Stall Current (In): 5.8 Arms
Speed: 1000 Revolution Per Minute (rpm)
Nominal Torque: 0.9 Nm
Resistance: 0.5 ohm
Flange Size: 57.2 mm
Motor Length: 93 mm
Shaft Diameter: 6.35 mm
Shaft Length: 21 mm
Insulation Class: F
Protection Class: IP 41
Weight: 1.15 kg
