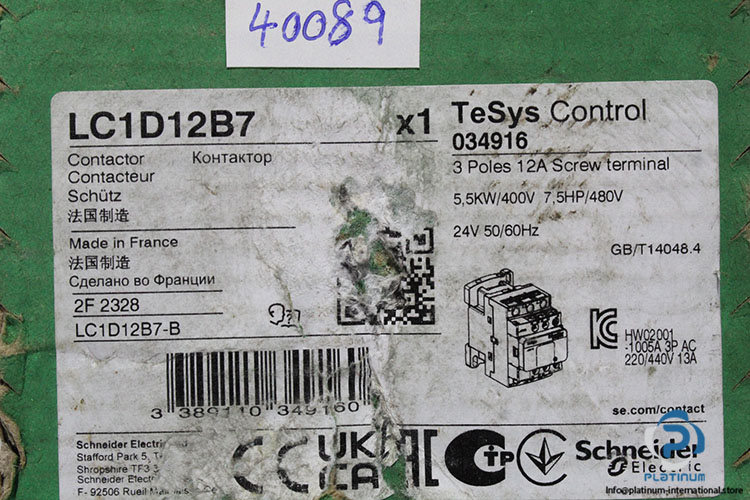

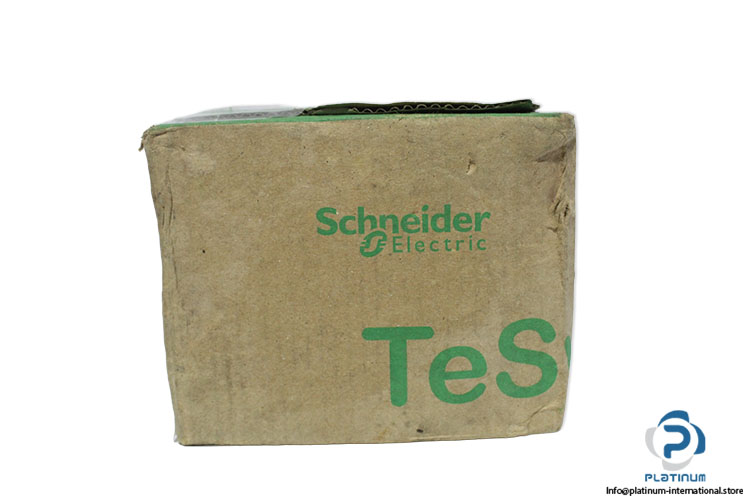

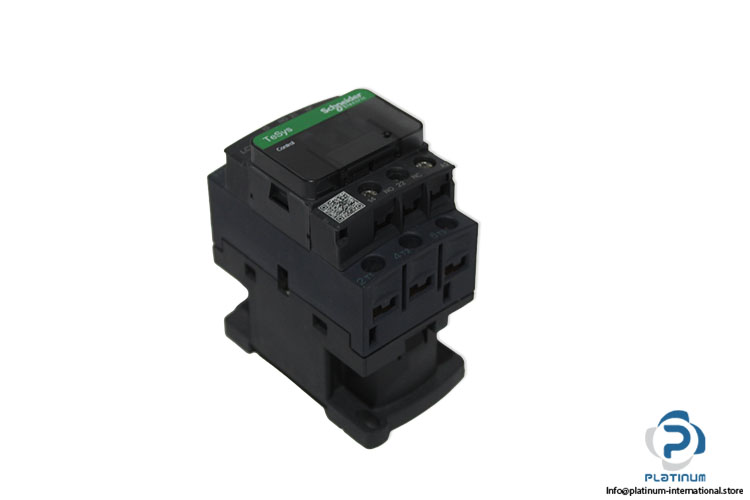

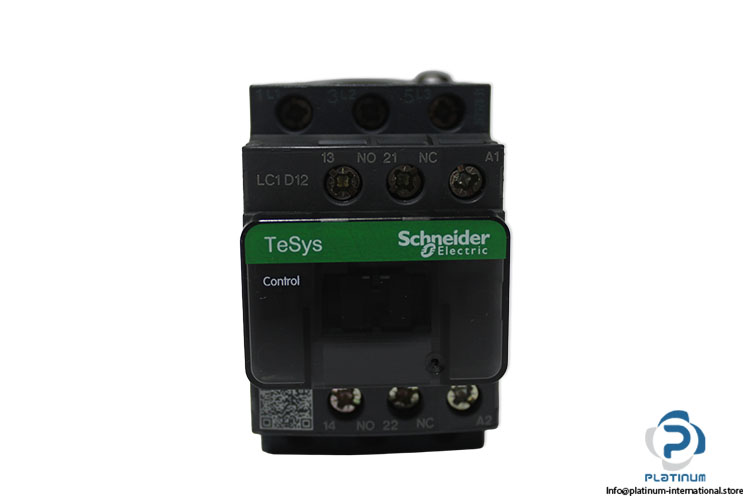

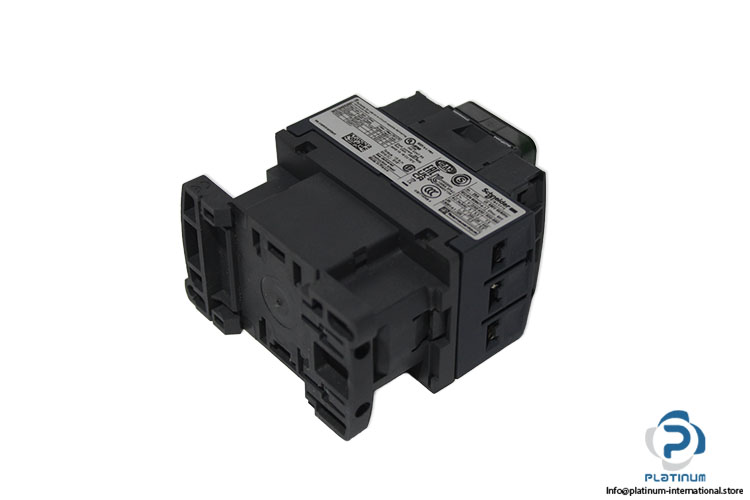

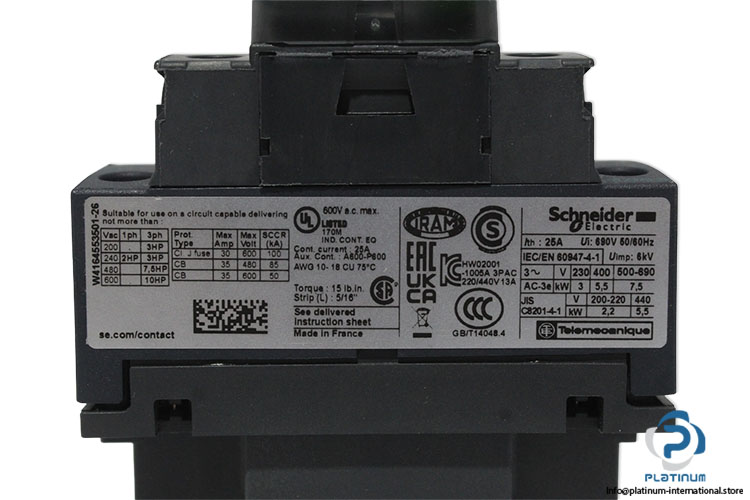

Schneider LC1D12B7 Contactor
Novo
Em estoque1 unidadePronto para envio
Contactor The Schneider LC1D12B7 is a 3-pole industrial contactor with a 24 V AC coil, 12 A AC-3 current and NO/NC auxiliary contacts.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
| Part No. | 034916 |
| Short Name | LC1D |
| Coil Voltage | 24 V AC / 50/60Hz |
| Rated Operational Voltage | 690 V AC |
| Rated Operational Current AC-3 | 12 A |
| Rated Thermal Current | 25 A |
| Frequency | 50 … 60 Hz |
| Power AC-3 | 5.5 kW |
| Rated Impulse Voltage (Uimp) | 6 kV |
| Poles No. | 3-Pole |
| Auxiliary Contact | 2-Pole 1 Normally Open (NO) + 1 Normally Closed (NC) |
| Rated Breaking Capacity | 250 A |
| Protection Class | IP20 |
| Ambient Temperature | -40 … 60 °C |
| Dimensions | 77 x 45 x 86 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1103911 |
| Weight | 0,35 |
