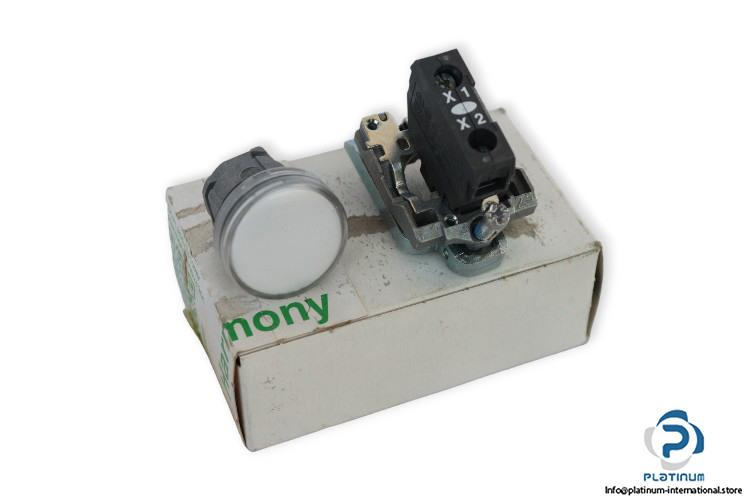

Schneider XB4 BVB1 Pilot Light

Manufacturer: SCHNEIDER
Type: Pilot Light
Model: XB4BVB1
Alternative Model: ZBVB1
Part No.: 089191

Range of Product: Harmony XB4
Short Name: XB4
Light Source: Universal LED
Bulb Base: Integral LED
Rated Supply Voltage: 24 V AC/DC
Rated Insulation Voltage: 250 V AC
Current Consumption: 18 mA
Rated Impulse Voltage (Uimp): 6 kV
Frequency: 50 … 60 Hz
Bezel Material: Chromium Plated Metal
Collar Material: Zamak
Protection Class: IP66
Ambient Temperature: -40 … 70 °C
Diameter: 22 mm
Dimensions: 47 x 30 x 54 mm
