Schneider ZAL VB3 Light Block FOR Head
Bloco de luz Schneider para Head ZAL VB3, operando a 24 V AC/DC, com consumo de corrente de 18 mA e grau de proteção IP20. Suporta temperaturas de -40 a 70 °C e é ideal para ambientes industriais.

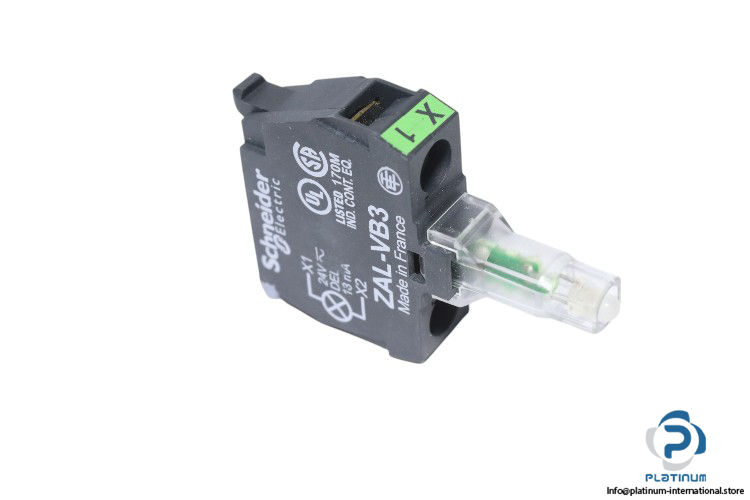

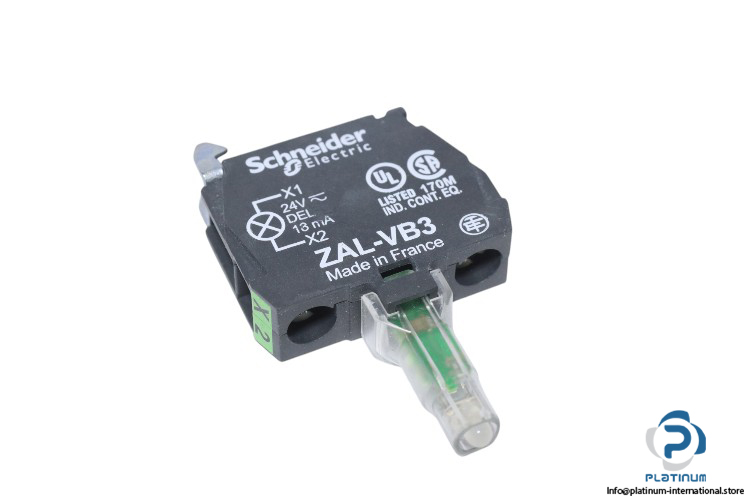

Schneider Light Block for Head ZAL VB3
The Schneider Light Block for Head ZAL VB3 is designed for use in industrial environments, offering reliable performance with a rated supply voltage of 24 V AC/DC. With an insulation voltage of 250 V and a rated impulse withstand voltage of 4 KV, it is engineered for robust applications. The current consumption is 18 mA, and the device operates efficiently within a supply voltage range of 19.2 to 30 V DC / 21.6 to 26.4 V AC. It comes with an IP20 protection rating and is designed to work in ambient temperatures from -40 to 70°C, ensuring durability in harsh conditions.
Manufacturer: Schneider
Type: Light Block for Head
Model: ZAL VB3
Part no: 011510
This product is ideal for applications requiring precise and reliable operation in industrial environments.
| Rated Supply Voltage (Us) | 24 V AC/DC |
| Tightening Torque | 0.8 / 1.2 Nm |
| Rated Insulation Voltage (Ui) | 250 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 KV |
| Supply Voltage Limits | 19.2 / 30 V DC / 21.6 / 26.4 V AC |
| Current Consumption | 18 mA |
| Protection Degree | IP20 |
| Ambient Temperature | -40 to 70 °C |
