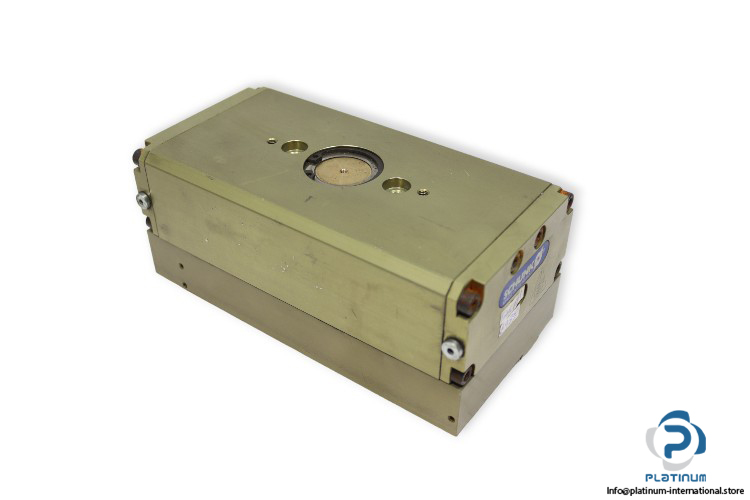

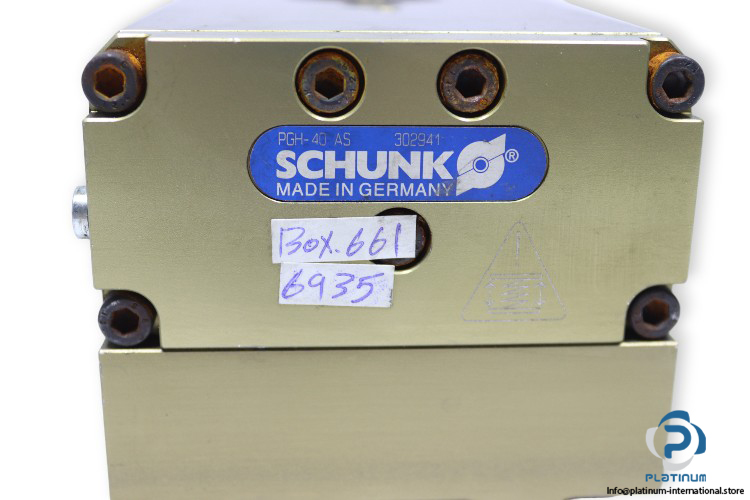

Schunk PGH-40 AS Parallel Gripper

Manufacturer: SCHUNK
Type: Parallel Gripper
Model: PGH-40AS
Part No.: 302941

Media: Compressed air
Stroke per gripper jaw: 4 mm
Closing Force: 920 N
Opening Force: 920 N
Min. spring force: 160 N
Cylinder volume per double stroke: 142 cm³
Operating pressure: 4.5 … 10 bar
Nominal operating pressure: 6 bar
Gripper function: Parallel
Closing time: 0.5 s
Opening time: 0.5 s
Max. permissible finger length: 400 mm
Max. axial force Fz max.: 1500 N
