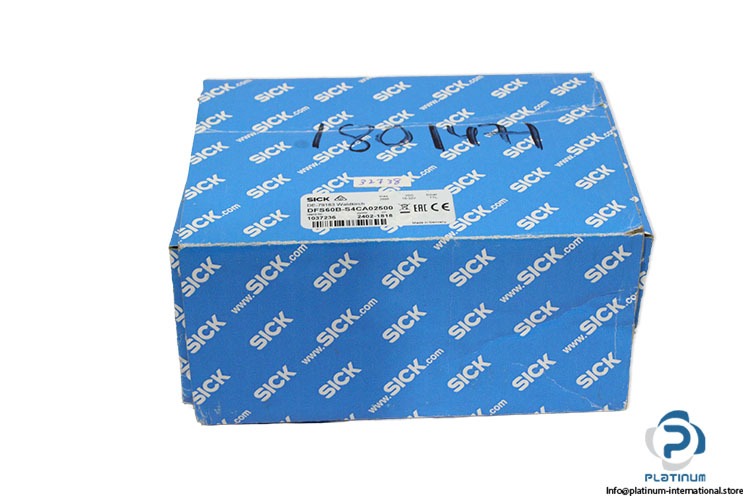

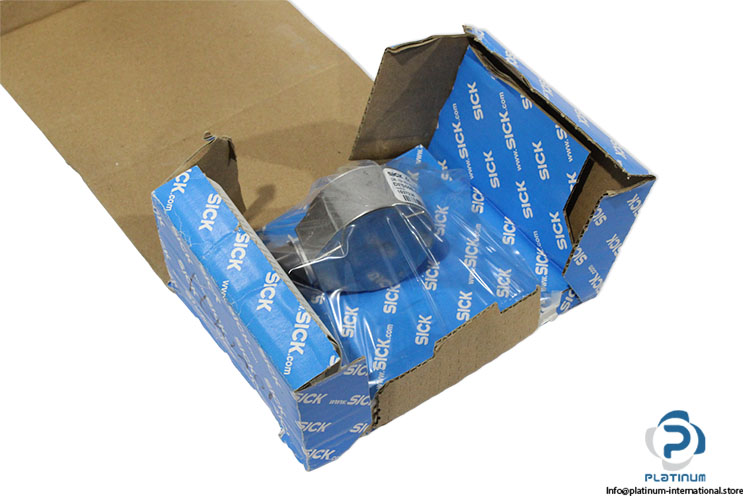

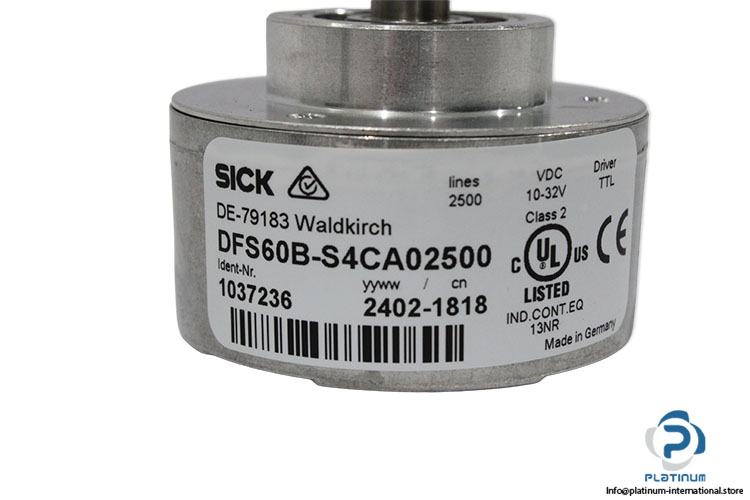

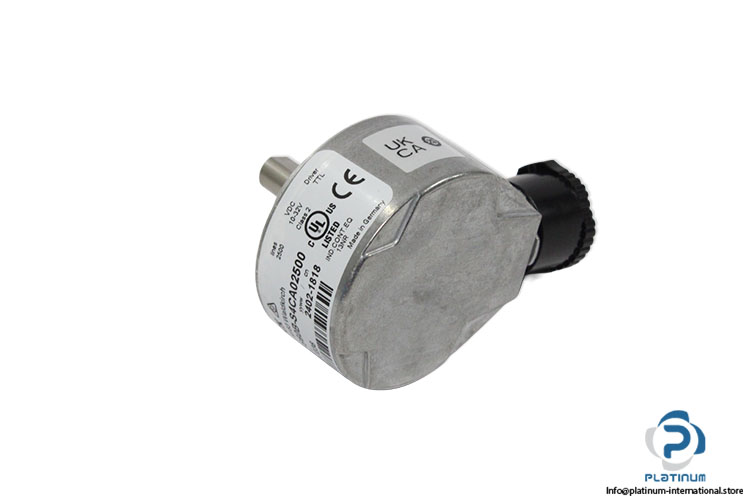

Sick DFS60B-S4CA02500 Incremental Encoder
Novo
Em estoque1 unidadePronto para envio
Incremental Encoder SICK DFS60B-S4CA02500 incremental encoder with 2,500 pulses per revolution, TTL / RS-422 interface, solid shaft design, and high-speed performance for industrial motion control and automation systems.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

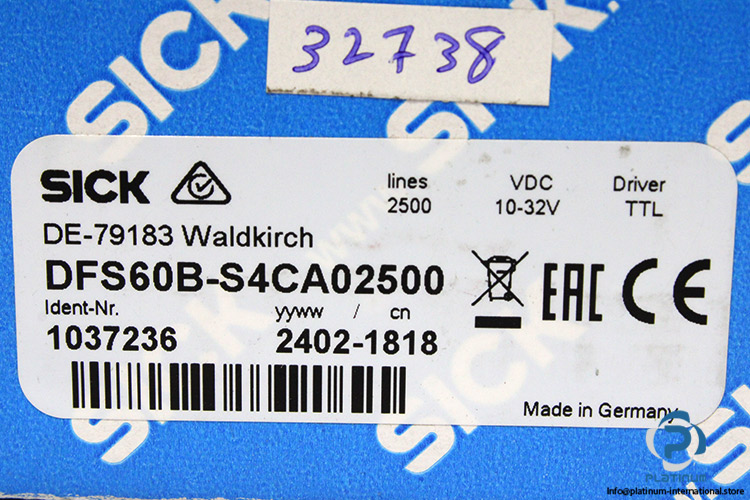

| Part No. | 1037236 |
| Code | 2402-1818 |
| Class | 2 |
| Pulses per revolution | 2,500 |
| Measuring step | 90°, electric/pulses per revolution |
| Measuring step deviation at non binary number of lines | ± 0.01° |
| Error limits | ± 0.05° |
| Communication interface | Incremental |
| Communication Interface detail | TTL / RS-422 |
| Number of signal channels | 6-channel |
| Initialization time | 40 ms |
| Output frequency | 600 kHz |
| Load current | 30 mA |
| Power consumption | 0.5 W (without load) |

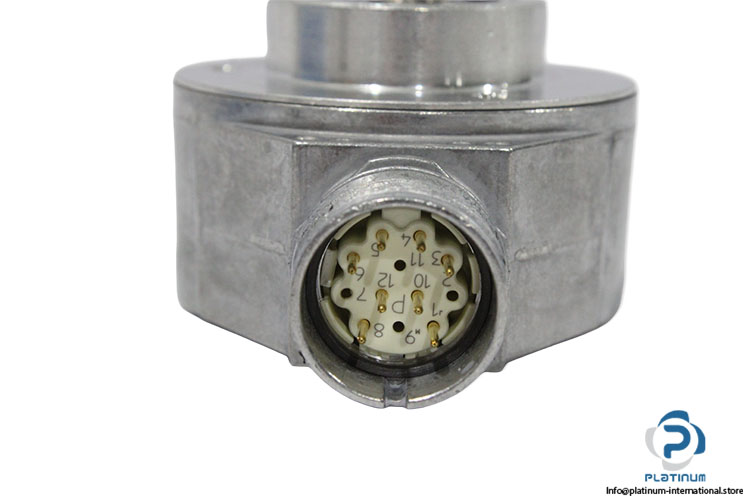

| Connection type | Male connector, M23, 12-pin, radial |
| Supply voltage | 10 ... 32 V |
| Reference signal, number | 1 |
| Reference signal, position | 90°, electric, logically gated with A and B |

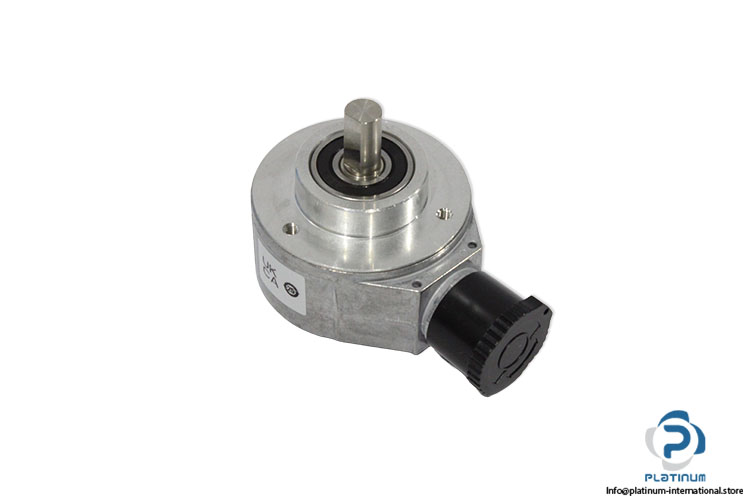

| Mechanical design | Solid shaft, face mount flange |
| Shaft diameter | 10 mm With flat |
| Shaft length | 19 mm |
| Shaft material | Stainless steel |
| Flange material | Aluminum |
| Housing material | Aluminum die cast |
| Start up torque | 0.5 Ncm (+20 °C) |
| Operating torque | 0.3 Ncm (+20 °C) |
| Permissible shaft loading | 80 N (radial) 40 N (axial) |
| Operating speed | 9,000 min?¹ |
| Moment of inertia of the rotor | 6.2 gcm² |
| Stock Key | CON-003 |
| Condition | New |
| SKU | 1099217 |
| Weight | 0,32 |
