Sick LFV200.XXSGATPV Level Sensor
Usado
Em estoque2 unidadesPronto para envio
Sensor de Nível de Fluido Sick Fluid Level Sensor LFV200-XXSGATPV com comprimento de sonda de 67 mm, faixa de pressão de processo de -1 a 64 bar e saída transistor PNP. Projetado para medição precisa do nível de fluido com alta resolução e tempo de resposta rápido.
67accurateAdjustableenclosureFluidIndustrialIP65LevelMeasurementmmOutputPNPPressureProbeProcessResolutionSensorSickstainlessSteelTemperatureTransistor
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

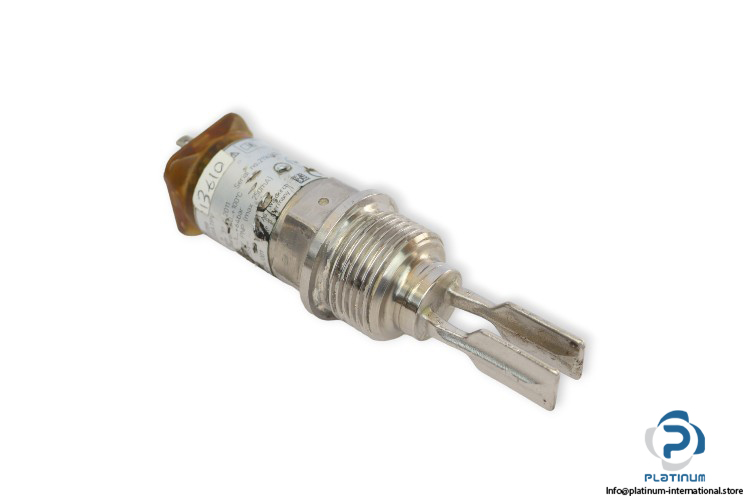

Sick Fluid Level Sensor LFV200-XXSGATPV
Sick Fluid Level Sensor LFV200-XXSGATPV is a high-performance sensor designed for precise fluid level measurement in demanding industrial environments. This sensor provides reliable operation with fast response times and high resolution, making it suitable for a wide range of applications.
- Manufacturer: Sick
- Type: Fluid Level Sensor
- Model: LFV200-XXSGATPV
- Part No.: 6037759
Technical Data:
- Supply Voltage: Max. 55 V DC
- Current Consumption: < 10 mA
- Probe Length: 67 mm
- Process Pressure: -1 / 64 bar
- Process Temperature: -40 / +100 °C
- Fill Material Density: 0.7 / 2.5 g/cm³
- Resolution: ‰¤ 1 mm
- Connection Type: Valve plug DIN 43650
- Output Signal: Transistor output PNP
- Response Time: 500 ms
- Output Current: < 250 mA
- Enclosure Rating: IP65
- Inductive Load: ‰¤ 1 H
- Capacitive Load: 100 nF
- Housing Material: Stainless steel 1.4404, PEI
- Ambient Operating Temperature: -40 / +70 °C
- Dimensions: 165 x 38 x 49 mm
