Sick Stegmann DGS60-G4A05000 Incremental Encoder

Name: SICK STEGMANN DGS60-G4A05000 INCREMENTAL ENCODER
SKU: 1061395
Availability: LimitedAvailability

sick-stegmann-DGS60-G4A05000-incremental-encoder-(Used)

sick-stegmann-DGS60-G4A05000-incremental-encoder-(Used)-1

sick-stegmann-DGS60-G4A05000-incremental-encoder-(Used)-2

Usado

Em estoque1 unidadePronto para envio

Encoder incremental O SICK|STEGMANN DGS60G4A05000 oferece resolução de 5000 PPR com interface HTL push-pull, proteção IP67 e operação em 10“30 V DC. Projetado com precisão para ambientes industriais de alta velocidade e adversos.

Fabricante

SICK

SKU

1061395

Categoria

Rotary Encoders

Condição

Usado

10mm 5000 DGS60 Encoder Flange High HTL Incremental Industrial IP67 PPR Push-Pull Resolution Rotary Servo shaft Sick

Grande Estoque

Envio Global

Suporte Especializado

Qualidade Garantida

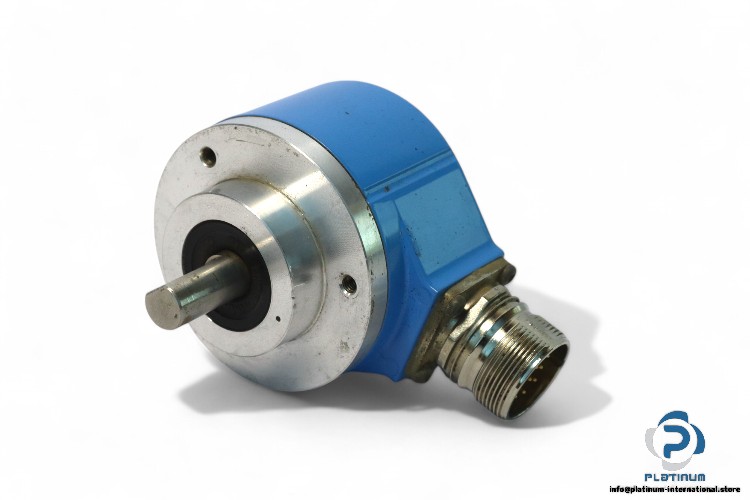

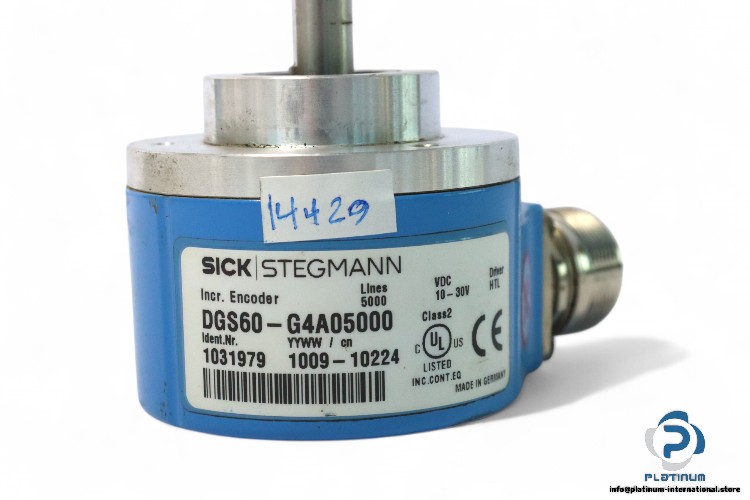

SICK|STEGMANN DGS60G4A05000 Incremental Encoder

Engineered for precise rotary positioning and speed detection, the DGS60G4A05000 Incremental Encoder from SICK|STEGMANN is ideal for demanding industrial environments requiring high resolution and durable performance.

Manufacturer: SICK|STEGMANN

Type: Incremental Encoder

Model: DGS60G4A05000

Part No.: 1031979 1009/10224

Series: DGS60

Servo Flange Shaft Diameter	10 mm
Lines Per Revolution	5000 PPR
Operating Voltage	10 / 30 V DC
Load Current Max.	60 mA
Operating Speed Max.	10000 min-1
Measuring Steps	90°/Number Of Lines
Electrical Interface	HTL Push-Pull
Flange Diameter	36 mm

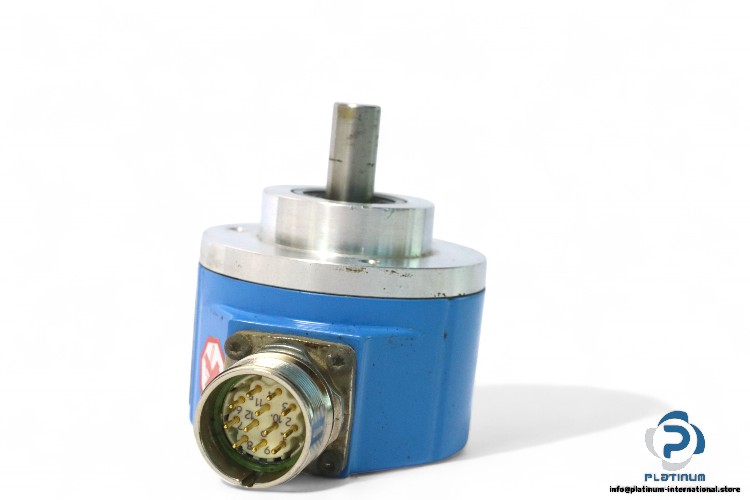

Connection	Connector M23, 12-Pin, Radial
Protection Class	IP67
Operating Temperature	-20 / 85 °C
Dimensions (L x D)	90 x 60 mm
