Siemens 1PH7133-2QD02-0CJ2 Asynchronous Servomotor
Usado
Em estoque1 unidadePronto para envio
3 999,99$
Asynchronous Servomotor
The Siemens 1PH7133-2QD02-0CJ2 asynchronous servomotor offers up to 15 kW power, 8000 rpm max speed, and IP55 protection. Ideal for continuous duty applications with 22-bit incremental encoder and flexible terminal box configurations.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

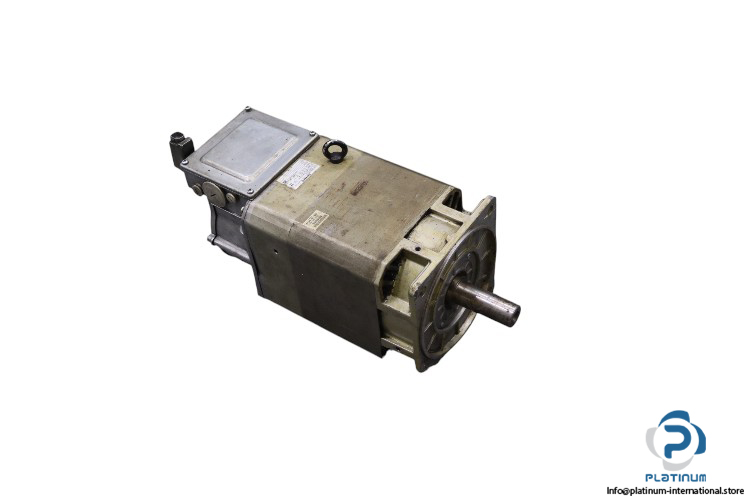

Siemens 1PH7133-2QD02-0CJ2 Asynchronous Servomotor
The Siemens 1PH7133-2QD02-0CJ2 is a high-performance asynchronous servomotor designed for demanding industrial applications. Engineered for precision, power, and durability, it features advanced speed and voltage options, robust protection ratings, and a reliable incremental encoder system for accurate feedback.

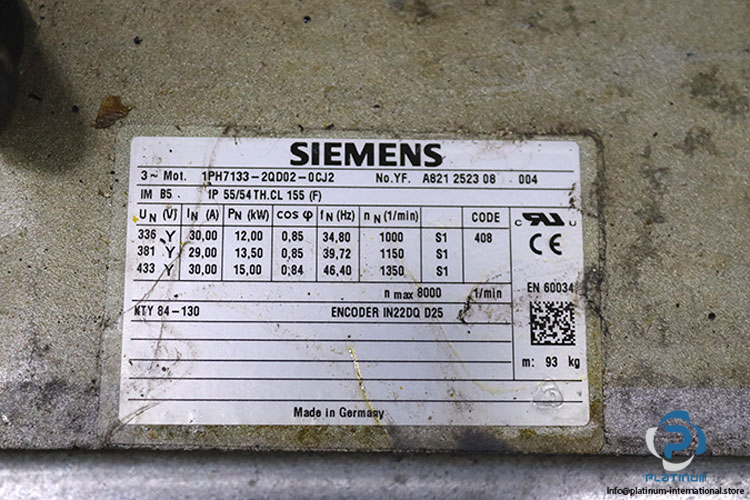

Manufacturer: Siemens
Type: Asynchronous Servomotor
Model: 1PH7133-2QD02-0CJ2

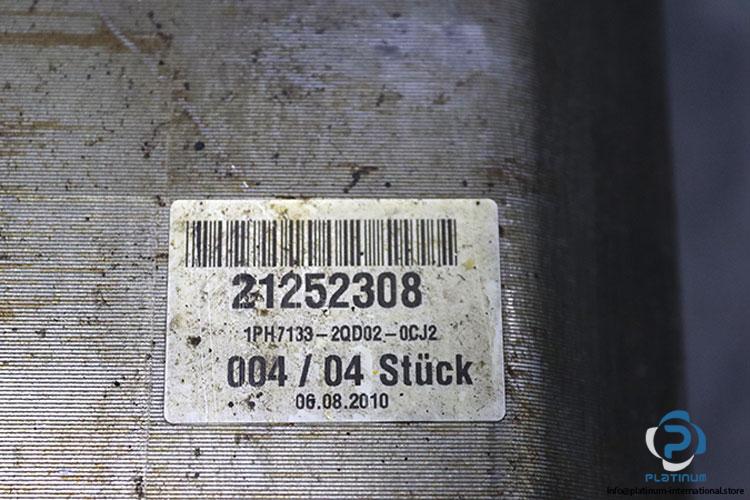

Part No.: A821252308-004
Code: 408
| Encoder System | Incremental encoder 22-bit |
| Fan | External fan unit, heavy-gauge threaded cable entry in terminal box |
| Rated Voltage | 336 / 381 / 433 V |
| Rated Frequency | 34.8 / 39.72 / 46.4 Hz |
| Rated Power | 12 / 13 / 15 kW |
| Rated Speed | 1000 / 1150 / 1350 rpm |
| Rated Current | 30 / 29 / 30 A |
| Maximum Speed | 8000 rpm |
| Terminal Box | IM B5, Top/from right (IM V1, IM V3) available only for shaft heights 100 and 132 |
| Thermal Class | 155F |
| Protection | IP55 / IP54 |
| Duty | S1 (Continuous operation) |
