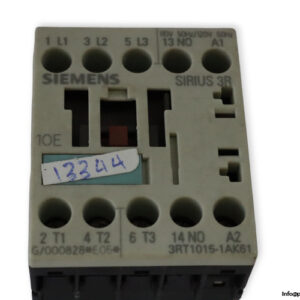

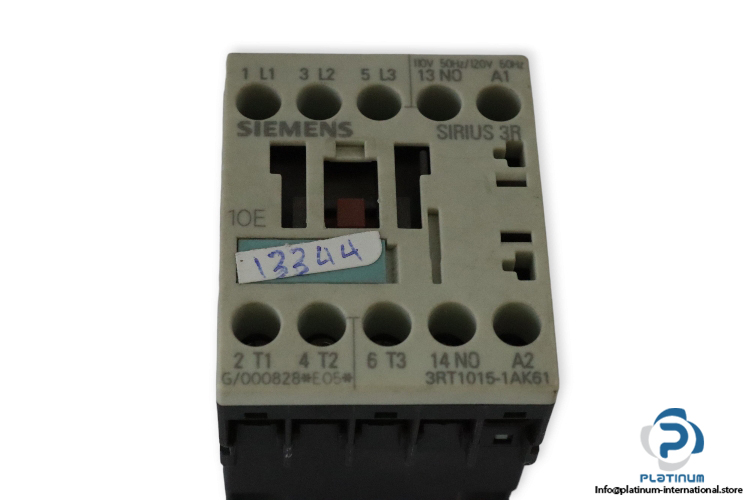

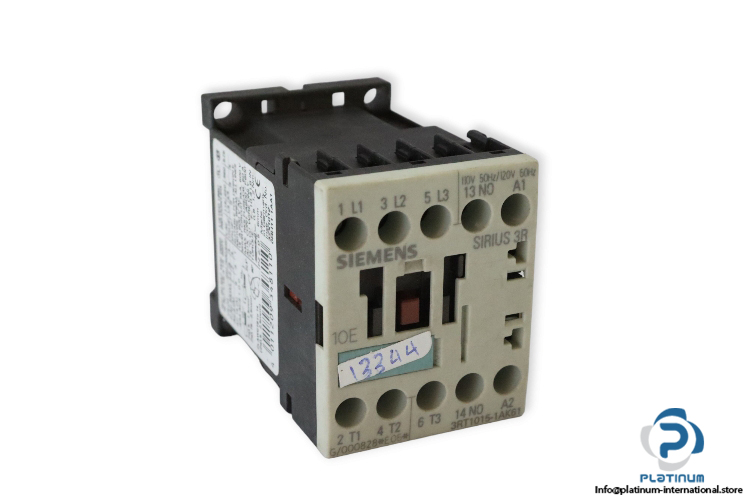

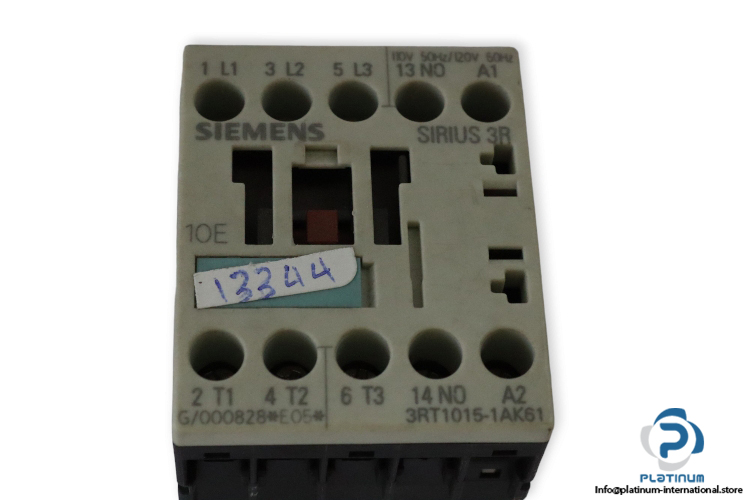

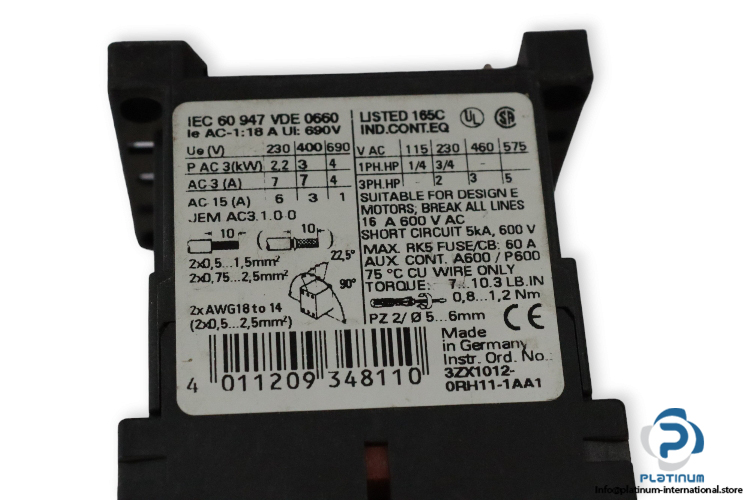

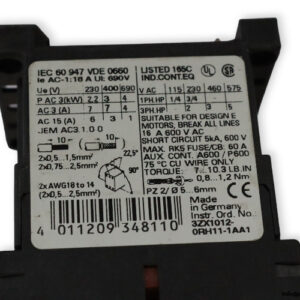

Siemens 3RT1015-1AK61 Contactor

Manufacturer: Siemens
Type: Contactor
MNR: 3RT10151AK61
Family: SIRIUS 3R
Product Brand Name: SIRIUS
Product Designation: power contactor

Rated insulation voltage Ui: 690 V
Operating current @AC-1 @ 400 V: 18 A
Operating power at AC-1 @ 400 V rated value: 11 kW
Operating power at AC-3 @ 400 V rated value: 3 kW
Control supply voltage: @ 50 Hz rated value 110 V, @60 Hz rated value 120 V
Size of contactor: S00
Degree of pollution: 3
Standard: IEC 60 947, VDE 0660
No. of NO contacts for auxiliary contacts: 1
Protection class: IP20
Ambient temperature during operation: -25 … +60 °C
Type of electrical connection: screw-type terminals
Dimensions: 57.5 X 45 X 72 mm
