Siemens 3RT1046-1BB40 Contactor
Contator SIEMENS SIRIUS 3RT10, tamanho S3, configuração de 3 polos com classificação AC-3 de 95 A, bobina de 230 V DC e capacidade de potência de 45 kW para aplicações de controle de motores industriais.

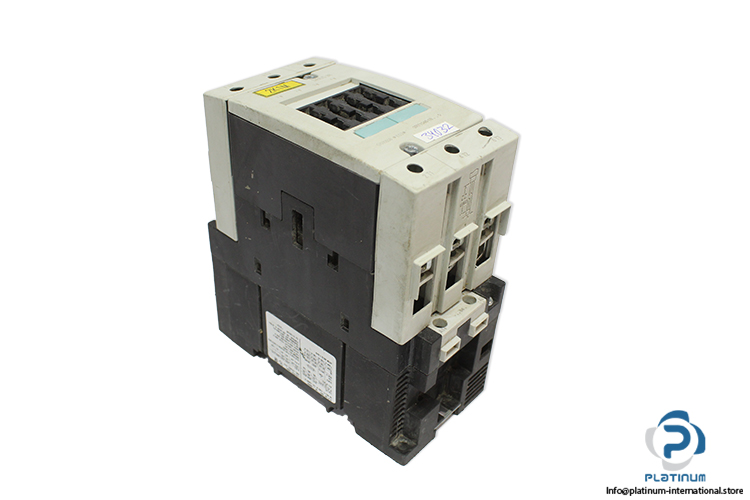

SIEMENS 3RT1046-1BB40 Contactor
The SIEMENS 3RT10461BB40 contactor from the SIRIUS 3RT10 series is designed for reliable switching and control of motors and industrial power circuits. Built in S3 size configuration, it delivers high operational performance, durability, and electrical safety in demanding industrial environments.
Manufacturer: SIEMENS
Type: Contactor
Model: 3RT1046-1BB40
Brand Name: SIRIUS 3RT10
| Size | S3 |
| Coil Voltage | 230 V DC |
| Rated Operational Voltage (Max.) | 600 V AC |
| Rated Operational Current (AC-3) | 95 A |
| Rated Insulation Voltage | 1000 V |
| Frequency | 50 / 60 Hz |
| Power (AC-3) | 45 kW |
| Number of Poles | 3-Pole |
| Contact Configuration | 3 Normally Open (NO) |
| Protection Class | IP20 |
| Operating Temperature | -25 / 60 °C |
| Dimensions | 146 x 70 x 152 mm |
