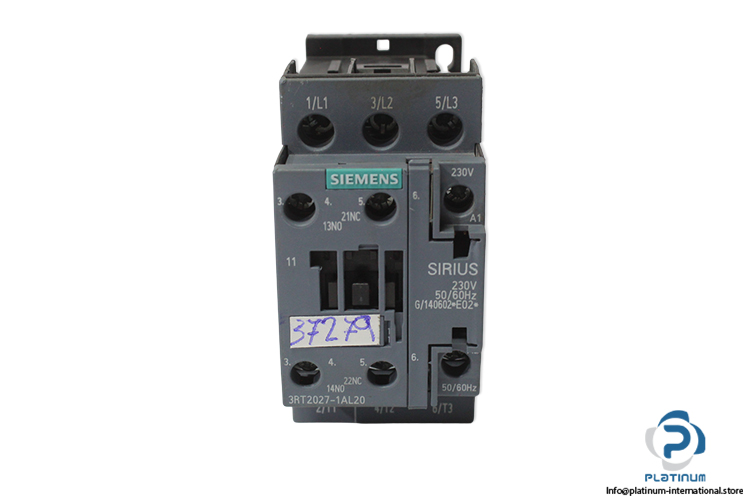

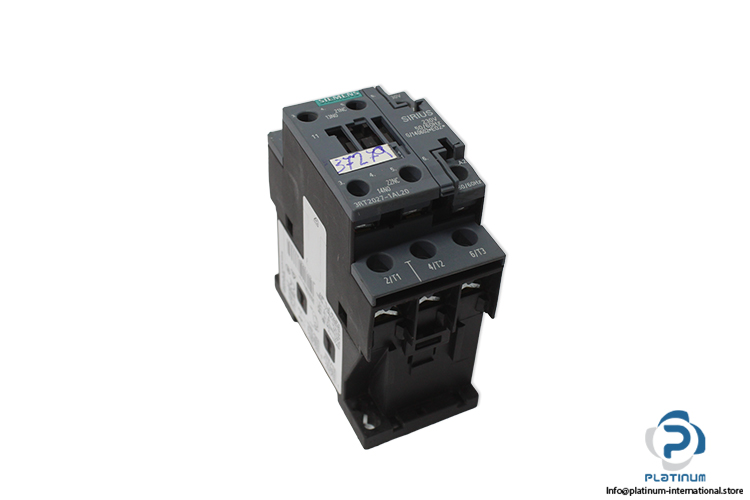

Siemens 3RT2027-1AL20 Power Contactor
Usado
Em estoque1 unidadePronto para envio
Power Contactor The SIEMENS 3RT2027-1AL20 is a 3-pole S0 power contactor with a 230 V AC coil and 32 A rating, designed for industrial motor switching and control.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida
| Size | S0 |
| Designation | 3RT2 |
| Control Coil Voltage | 230 V AC (50/60 Hz) |
| Operating Voltage Max. | 600 V AC |
| Operating Current (AC-3 / AC-3e) Max. | 32 A |
| Power (at 400 V) | 15 kW |
| Horse Power | 10 HP at 230 V / 20 HP at 460 V |
| Rated Insulation Voltage (Ui) | 690 V |
| Surge Voltage Resistance | 6 kV |
| Poles No. | 3-Pole |
| Main Contacts | 3 Normally Open (NO) |
| Auxiliary Contacts | 1 Normally Open (NO) + 1 Normally Closed (NC) |
| Termination Style | Screw Terminals |
| Mounting Type | 35 mm DIN Rail Or Snap-On / Screw Mounting |
| Protection Class | IP20 |
| Dimensions | 45 x 85 x 97 mm |
| Stock Key | CON003 |
| Condition | Used |
| SKU | 1103903 |
| Weight | 0,40 |
