Siemens 3RW3034-1AB04 Sirius Soft Starter
135,00$
PARTIDA SUAVE Siemens 3RW3 034-1AB04 Sirius partida suave com entrada de 200“460 VAC, controle 24V AC/DC e potência de motor até 18,5 kW. Recursos incluem limitador de corrente, montagem DIN e corrente nominal de 38 A.

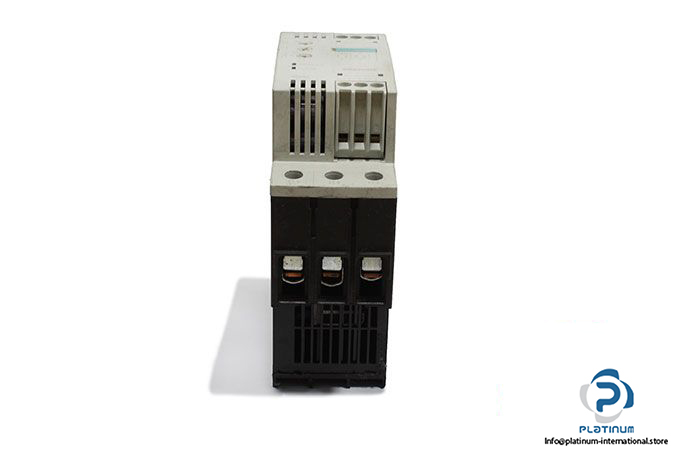

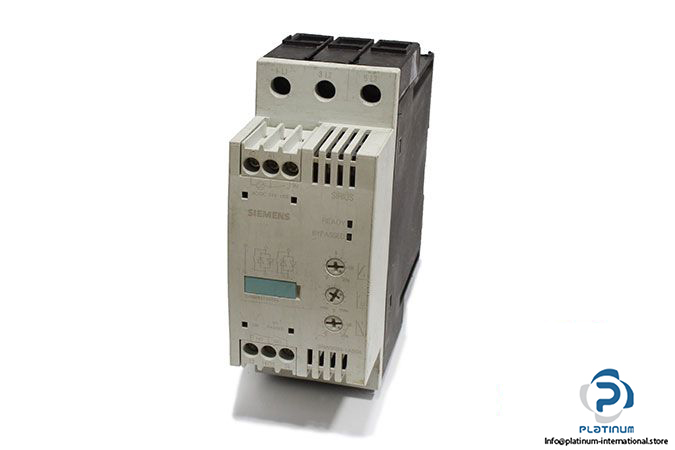

SIEMENS 3RW3 034-1AB04 SIRIUS SOFT STARTER
The Siemens 3RW3 034-1AB04 Sirius Soft Starter is an advanced motor starter designed to optimize startup and shutdown operations. With a compact DIN rail design and integrated starting current limiter, it ensures smooth performance and enhanced motor protection. Ideal for industrial automation and motor control applications.
Manufacturer: Siemens
Type: Sirius Soft Starter
Model: 3RW3 034-1AB04

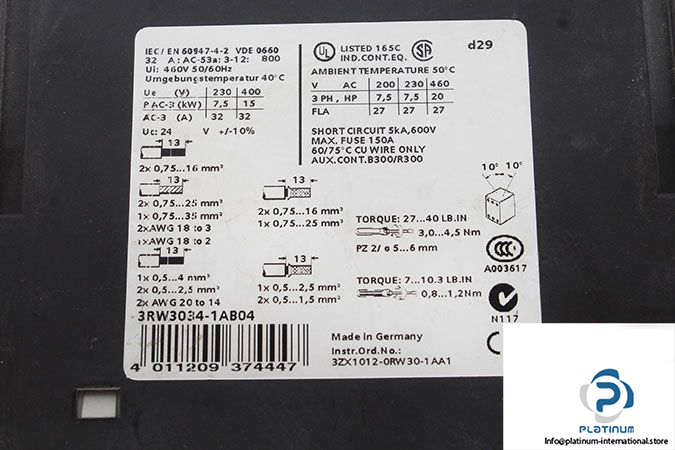

Serial No.: 4 011209 374447
Instruction Order No.: 3ZX1012-0RW30-1AA1
Standard: IEC/EN 60947-4-2, VDE 0660
| Supply Voltage | 200 / 460 VAC |
| Control Voltage | 24 VAC / 24 VDC |
| Power | 15 kW |
| Max. Motor Power | 18.5 kW |
| Contactor Series | S2 |
| Mounting | DIN Rail |
| Additional Functions | Starting Current Limiter |
| Electrical Connection | Screw Terminals |
| Operating Temperature | -25 / 60°C |
| Starting/Stopping Time | 0 / 20 / 0 / 20 s |
| Rated Continuous Current | 38 A |
| Dimensions | 148 x 140 x 55 mm |
