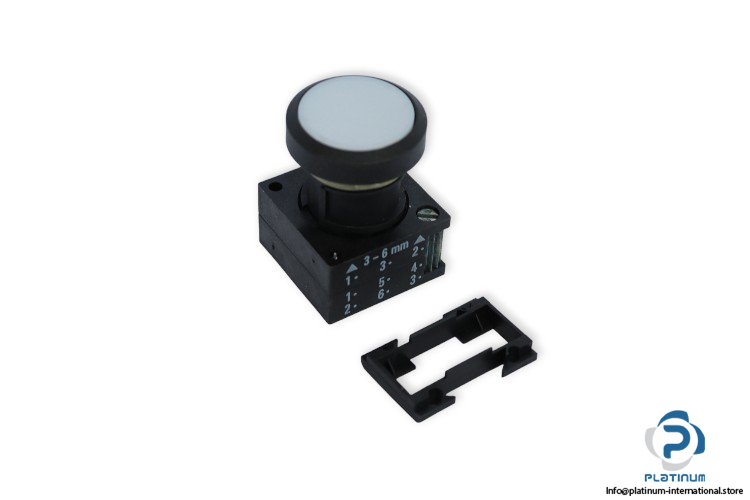

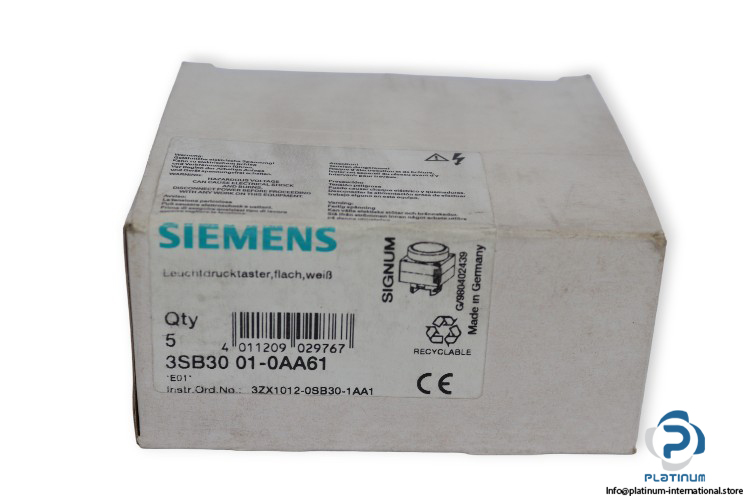

Siemens 3SB30 01-0AA61 Illuminated Pushbutton

Manufacturer: Siemens
Type: Illuminated pushbutton
MNR: 3SB3001-0AA61
Order No.: 3ZX1012-0SB30-1AA1

Design of the product: Round
Material of the front ring, holder: Plastic
Shape of The Actuating Element: Flat Pushbutton
Manner of function of the actuating element: Momentary contact type
Number of switching positions: 2
Color: White
Protection class: IP66
Tightening torque of the screws in the bracket: 1 … 1.2 N·m
Ambient temperature during operation: -25 … +70 °C
Mounting diameter: 22 mm
Mounting height: 8 mm
Installation width: 28.5 mm
Installation depth: 29 mm
