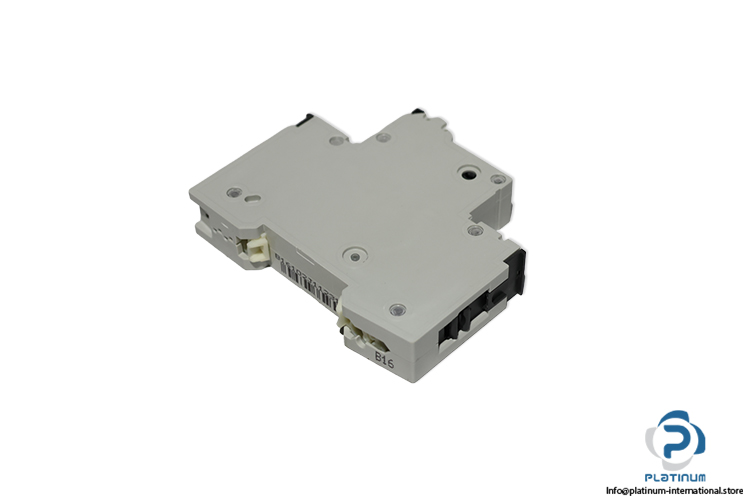

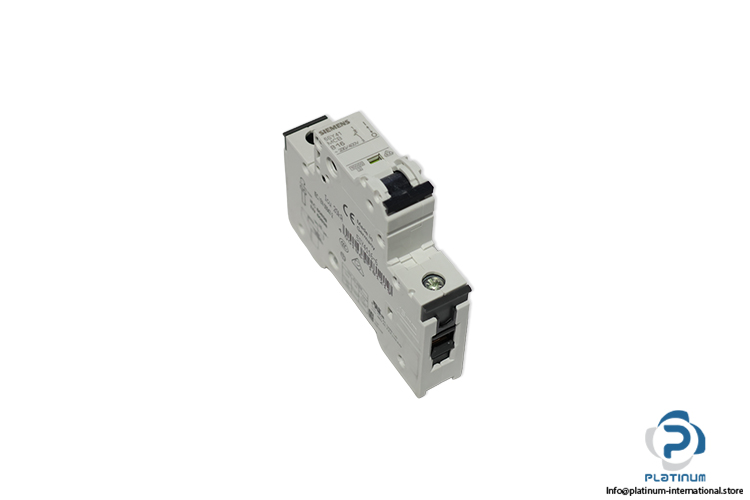

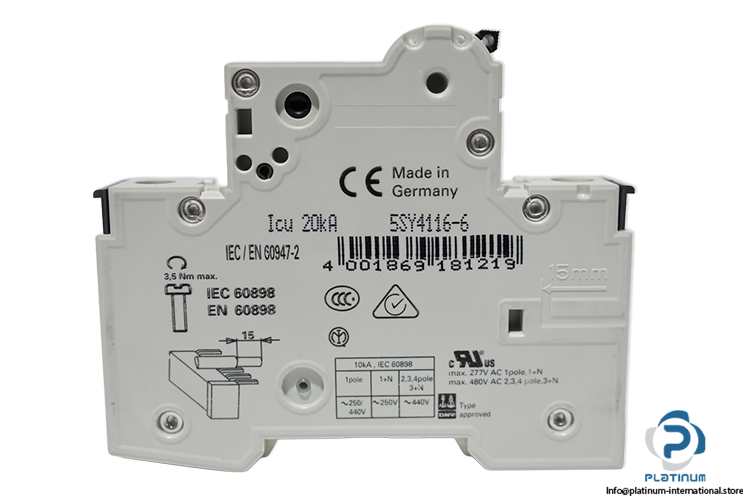

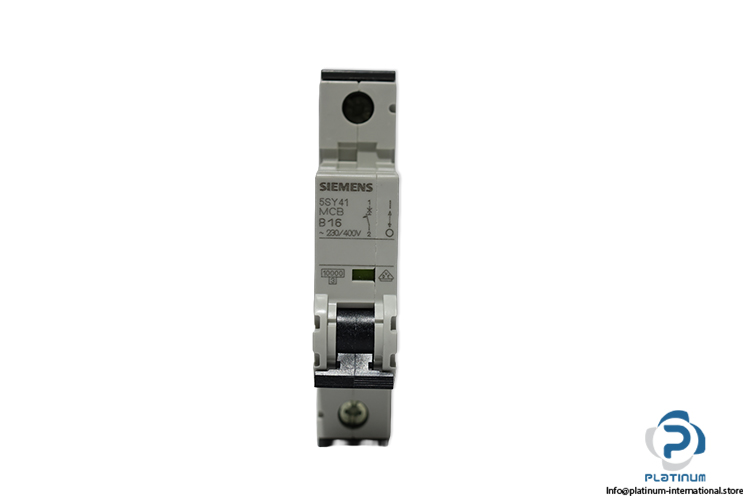

Siemens 5SY4116-6 Miniature Circuit Breaker
Novo
Em estoque1 unidadePronto para envio
Miniature Circuit Breaker Siemens SENTRON single-pole miniature circuit breaker for reliable overload and short-circuit protection in industrial electrical systems.
Grande Estoque
Envio Global
Suporte Especializado
Qualidade Garantida

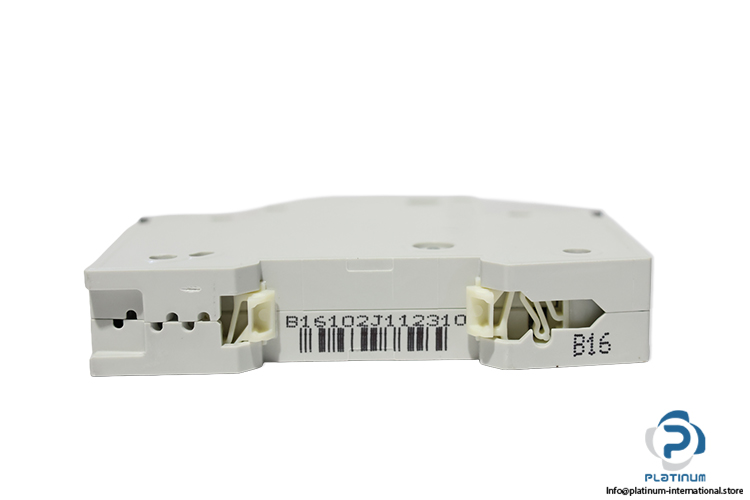

| Code | B161021112310,b16 |
| Standard | IEC/EN 60947-2 |
| product brand name | SENTRON |
| product designation | Miniature circuit breaker |
| number of poles | 1 |
| degree of pollution | 3 |
| type of voltage of the operating voltage | AC |
| insulation voltage (Ui) | with single-phase operation at AC rated value 440 V,with multi-phase operation at AC rated value 440 V |
| supply voltage with single-phase operation at AC rated value | 230 V |
| supply voltage | at AC rated value 400 V,at DC rated value 60 V |
| value range of the supply voltage frequency | 50/60 Hz |
| operating voltage at DC rated value maximum | 72 V |
| protection class IP | IP20 |
| power loss [W] for rated value of the current at AC in hot operating state per pole | 1.8 W |
| Dimensions | 90 x 18 x 70 mm |
| Ambient temperature | -40 … 70 °C |
| Stock key | CON003 |
| Condition | New |
| SKU | 1101485 |
| Weight | 0,16 |
