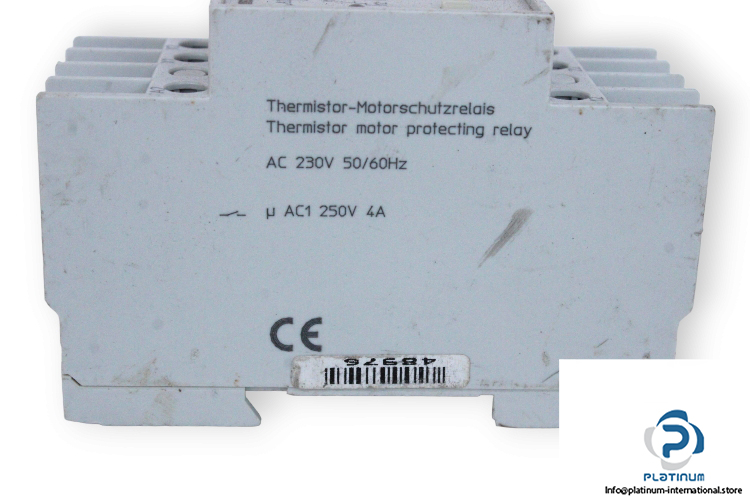

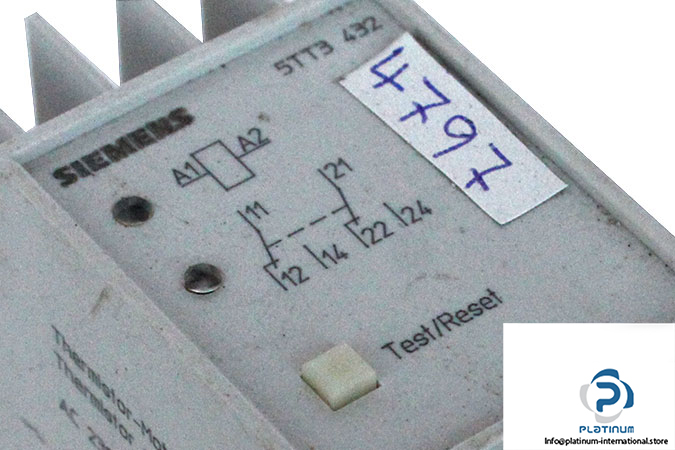

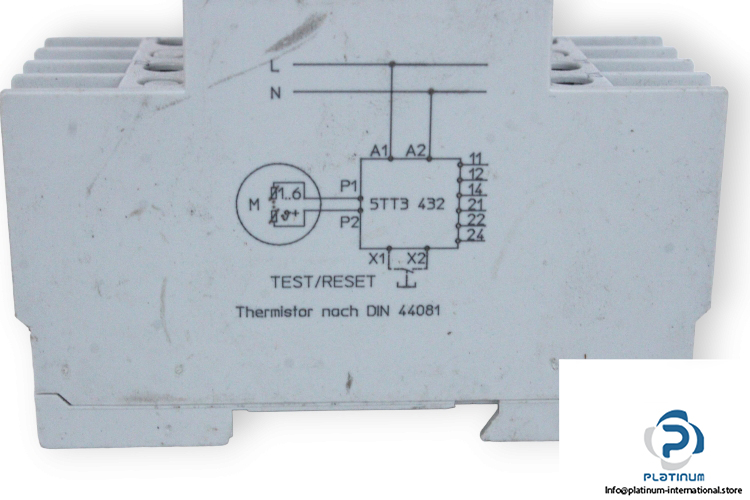

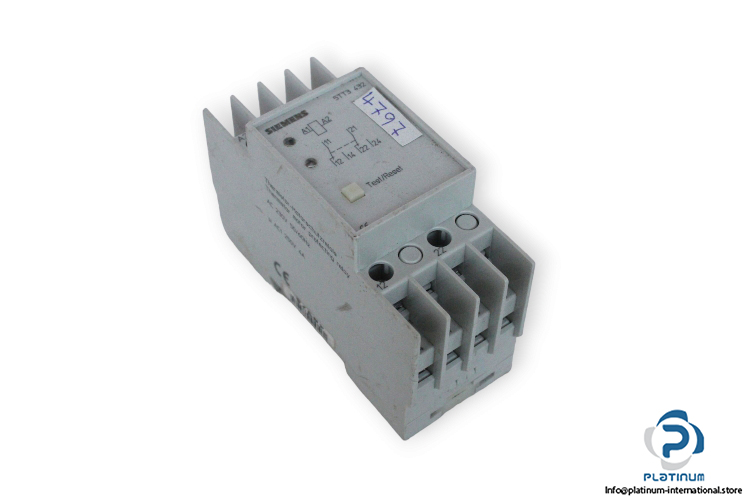

Siemens 5TT3 432 Timer Relay

Manufacturer: SIEMENS
Type: Timer Relay
Model: 5TT3 432

Power voltage: 230 V AC
measurable voltage at AC initial value: 400 V
switching voltage of the contacts at AC minimum: 10 V
switching current at AC per contact minimum: 100 mA
type of voltage of the operating voltage for actuation: AC
measurable voltage at AC full-scale value: 400 V
surge voltage resistance between contacts of the relay operating mechanism: 2.5 kV
operating voltage at AC rated value: 250 V
protection class IP: IP20
ambient temperature: -20 … 60 °c
Dimensions: 90 x 18 x 64 mm
