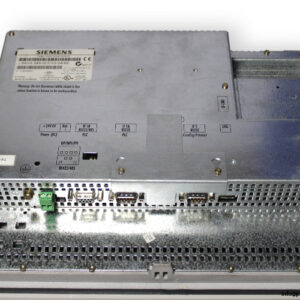

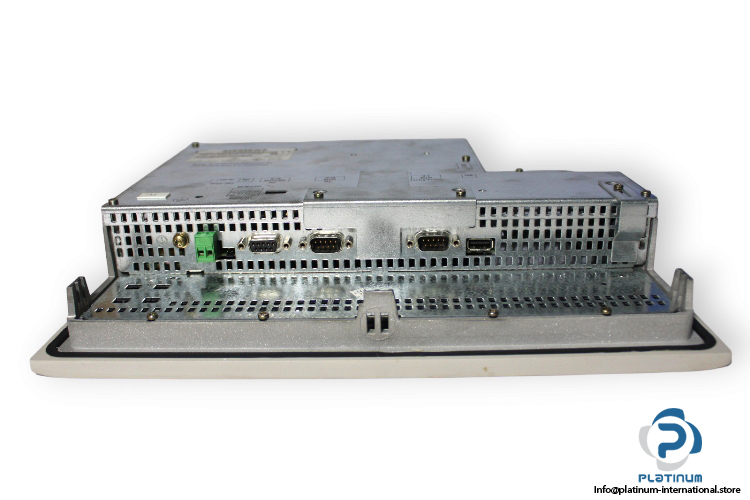

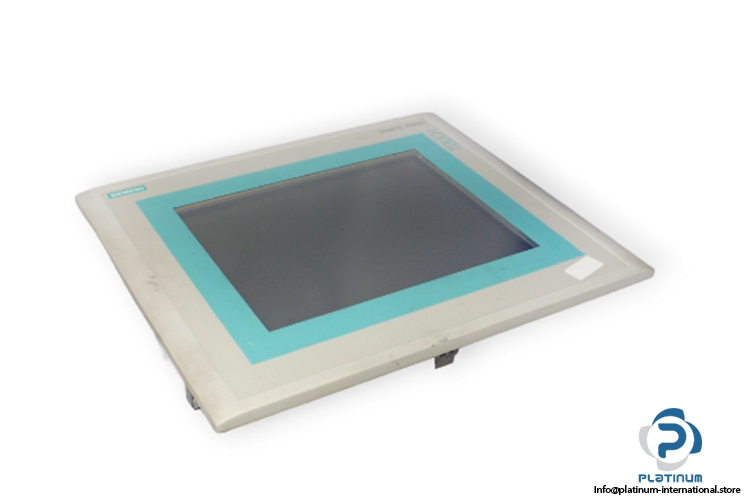

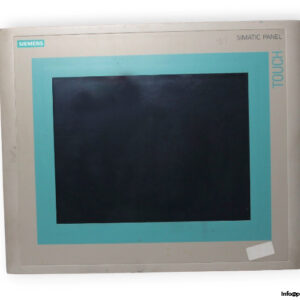

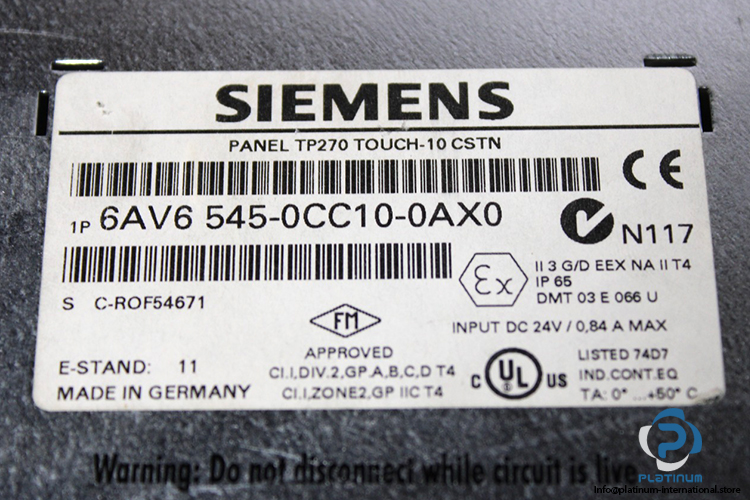

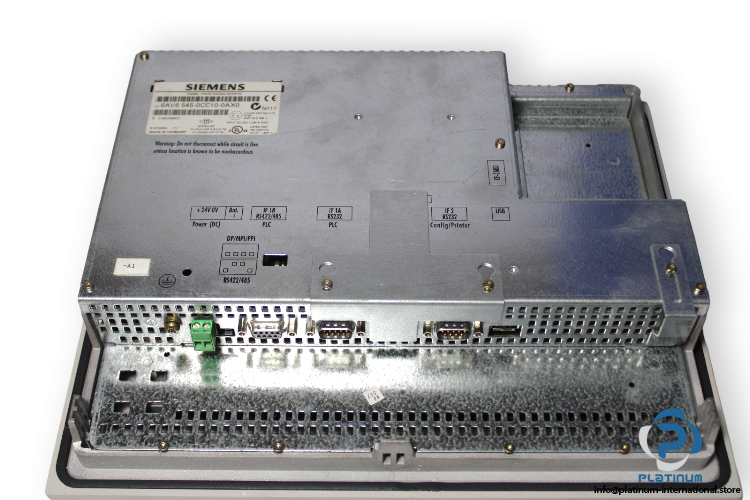

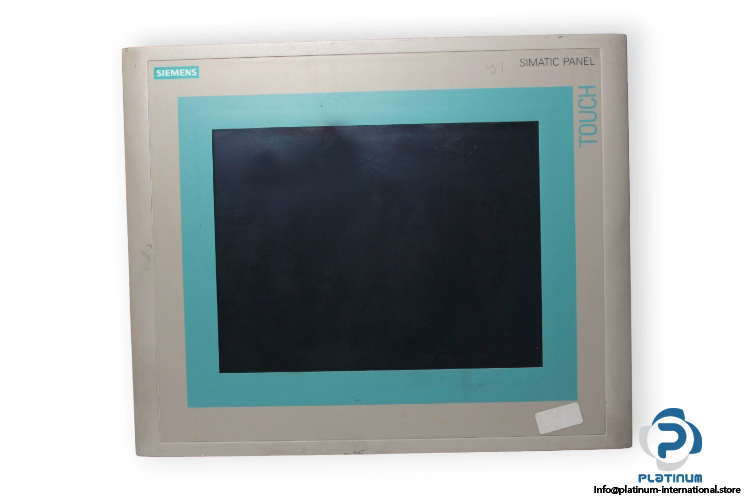

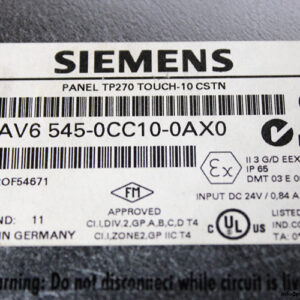

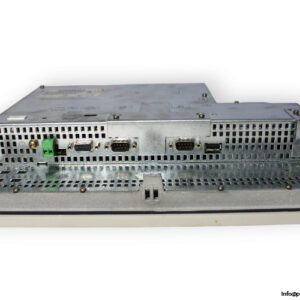

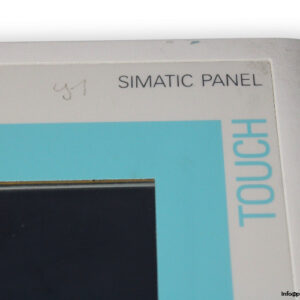

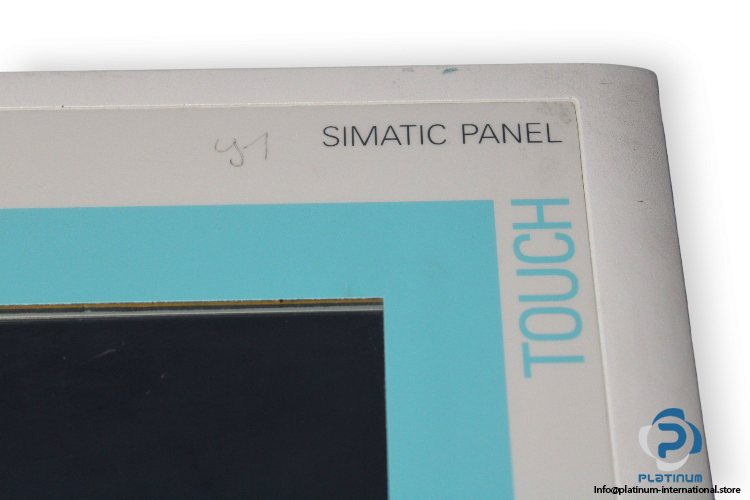

Siemens 6AV6 545-0CC10-0AX0 Touch Panel

Manufacture: Siemens
Type: Touch Panel
MNR: 6AV65450CC100AX0
Family: SIMATIC TP 270

Input voltage: 24 V DC
Current consumption (rated value): 0.84 A max.
Active power input, typ.: 15 W
Design of display: STN, 256 colors
Screen diagonal: 10.4 in
Horizontal image resolution: 640 Pixel
Vertical image resolution: 480 Pixel
Control elements: Touch screen
Type of connection for mouse/keyboard/barcode reader: USB / USB / USB
Mounting position: vertical
Processor type: RISC 32 bit
Type of memory: Flash / RAM
Memory available for user data: 2048 kbyte
Interfaces/bus type: 2x RS 232, 1x RS 422, 1x RS 485 (max. 12 Mbit/s)
Degree of protection: (at the front) IP65, (rear) IP20
Dimensions: 335 x 275 x 59 mm
