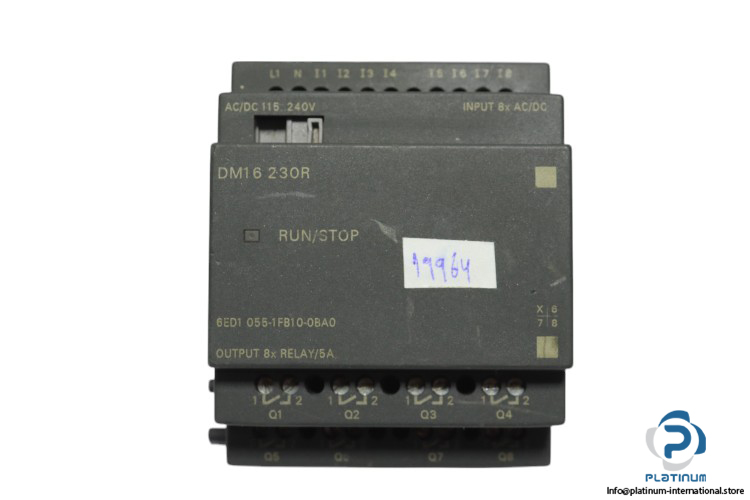

Siemens 6ED1 055-1FB10-0BA0 Digital Input/Output Module
Módulo de Entrada/Saída Digital O Siemens 6ED1 055-1FB10-0BA0 é um módulo digital industrial de E/S com 8 entradas digitais e 8 saídas relé. Projetado para montagem em trilho DIN, suporta 115/240 V AC/DC e opera eficientemente dentro de uma faixa de temperatura de 0 a 55°C.
Siemens 6ED1 055-1FB10-0BA0 Digital Input/Output Module
The Siemens 6ED1 055-1FB10-0BA0 is a high-performance Digital Input/Output Module designed for industrial automation applications. It features 8 digital inputs (DI) and 8 relay digital outputs (DO), providing reliable control and signal processing. Built for DIN rail mounting, this module supports 115/240 V AC/DC supply voltage and offers a compact design for efficient panel integration.
Manufacturer: Siemens
Type: Digital Input/Output Module
Part No.: 6ED1 055-1FB10-0BA0
Switching Capacity of Contacts:
| Mounting | DIN rail 25 mm, 4 module spaces wide |
| Supply Voltage | 115/240 V AC/DC |
| Line Frequency | 63 Hz |
| Number of Digital Inputs (DI) | 8 |
| Number of Digital Outputs (DO) | 8 Relay |
| Output Voltage | 24 V, 5A |
| With Inductive Load (Max.) | 3 A |
| Switching Frequency (Contacts at Ohmic Load, Max.) | 5 A |
| Ambient Temperature (During Operation) | 0 to 55°C |
| Dimensions (W x H x D) | 72 x 90 x 53 mm |
